Summary of Contents for Allen-Bradley MSR41

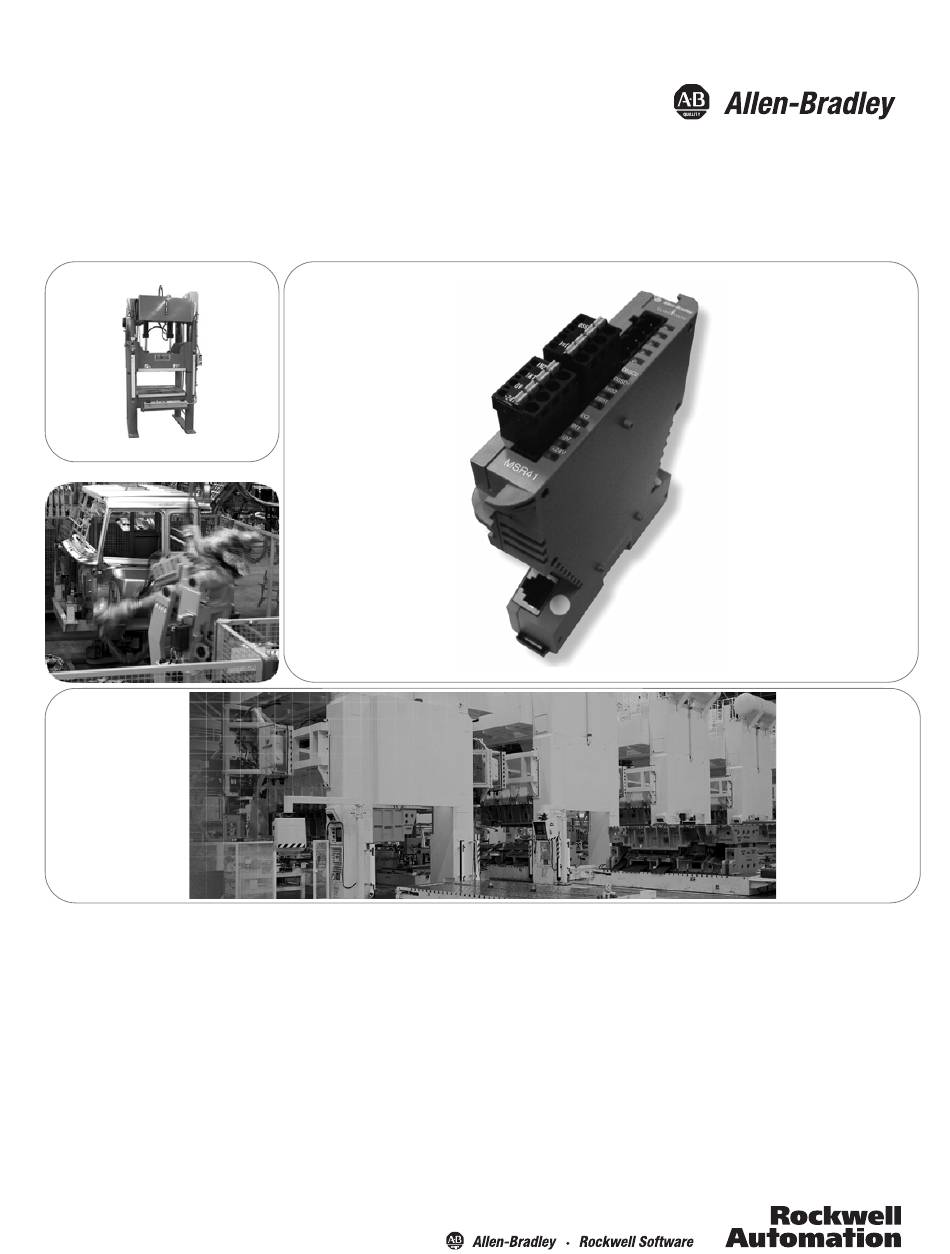

- Page 1 MSR41 Safety Module User Manual...
- Page 2 Important User Information Because of the variety of uses for the products described in this publication, those responsible for the application and use of this control equipment must satisfy themselves that all necessary steps have been taken to assure that each application and use meets all performance and safety requirements, including any applicable laws, regulations, codes and standards.
-
Page 3: Table Of Contents
MSR41 base module ........ -
Page 4: Applications
The dimensions of the housing for MSR41 are illustrated in Figure 2. Figure 4: MSR41 Base module, Micro 400 LightCurtain, manual start, no output monitoring Figure 2: Base module dimensions are the same for expansion modules Figure 5: MSR41 Base module, Micro 400 Light Curtain, manual start, output monitoring... -
Page 5: Status Outputs
MSR41 Safety Module User Manual LED display elements MSR41 base module Table 2 gives information about the LED on the front side of a MSR41 base module with the basic configuration: Signal / Color / Status Signal / Color / Status... -
Page 6: Installation
Maximum relay extension module response time for the light curtain Depressing the start button will cause the two safety OSSD outputs to The maximum response time for the MSR41 base module t(C) are given change from low to high and if connected the MSR45E relay expander in chapter 14. -
Page 7: Selection Tables
Inspections must be high before the start button is pressed (this means: the normally The MSR41 module has to be tested periodically – in accordance with closed contacts of the external relays must be closed before allowing a valid regulations - by qualified and trained personnel to discover start). - Page 8 MSR41 Safety Module User Manual General data Safety Related Parameter Net weight 130 g Housing dimensions 111 x 22,5 x 125 mm (incl. plugs) See page 2 6.0 E-9 1/h MSR42 & MSR45E & Micro 400 Enclosure Type Rating IP20 9.0 E-10 1/h...
-
Page 9: Ec Declaration Of Conformity
MSR41 Safety Module User Manual EC Declaration of Conformity The undersigned, representing the manufacturer and the authorised representative established within the Community Rockwell Automation, Inc. Rockwell Automation BV 2 Executive Dr. Rivium 1e Straat, 23 Chelmsford, MA 01824 2909 LE Capelle aan den IJssel... - Page 10 MSR41 Safety Module User Manual Catalogue number Series Description 440R-P221AGS MSR41 base module 440R-P226AGS-NNR MSR42 base module 445L-104794-B*** MSR42 base module customer configuration 440R-P4NANS MSR45E expander module 445L-1**** MSR45E expander module customer configuration Denotes characters representing options that do not impact the standards or directives cited on this DoC...
- Page 11 Technical Support / Technische Unterstützung / Assistance technique / Assistenza tecnica / Asistencia técnica ENGLISH Installation of this product must not take place until the installer has obtained a copy of the manufacturer’s instructions in a language which he can understand. This instruction sheet is available in multiple languages at http://rockwellautomation.com/literature.
- Page 12 GuardShield is a trademark of Rockwell Automation, Inc. Guardmaster is a registered trademark of Rockwell Automation, Inc. www.rockwellautomation.com Power, Control and Information Solutions Headquarters Americas: Rockwell Automation, 1201 South Second Street, Milwaukee, WI 53204 USA, Tel: (1) 414.382.2000, Fax: (1) 414.382.4444 Europe/Middle East/Africa: Rockwell Automation, Vorstlaan/Boulevard du Souverain 36, 1170 Brussels, Belgium, Tel: (32) 2 663 0600, Fax (32) 2 663 0640 Asia Pacific: Rockwell Automation, Level 14, Core F, Cyberport 3, 100 Cyberport Road, Hong Kong, Tel: (852) 2887 4788, Fax: (852) 2508 1846 10000172476 Ver00...
