Star Trac E-TC Installation & Owner's Manual

Treadclimber
Hide thumbs
Table of Contents

Advertisement

Quick Links

®
TreadClimber
®
S
T
BY
TAR
RAC
I
O
M
NSTALLATION &
WNER'S
ANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-TC and is the answer not in the manual?

Questions and answers

Related Manuals for Star Trac E-TC

Summary of Contents for Star Trac E-TC

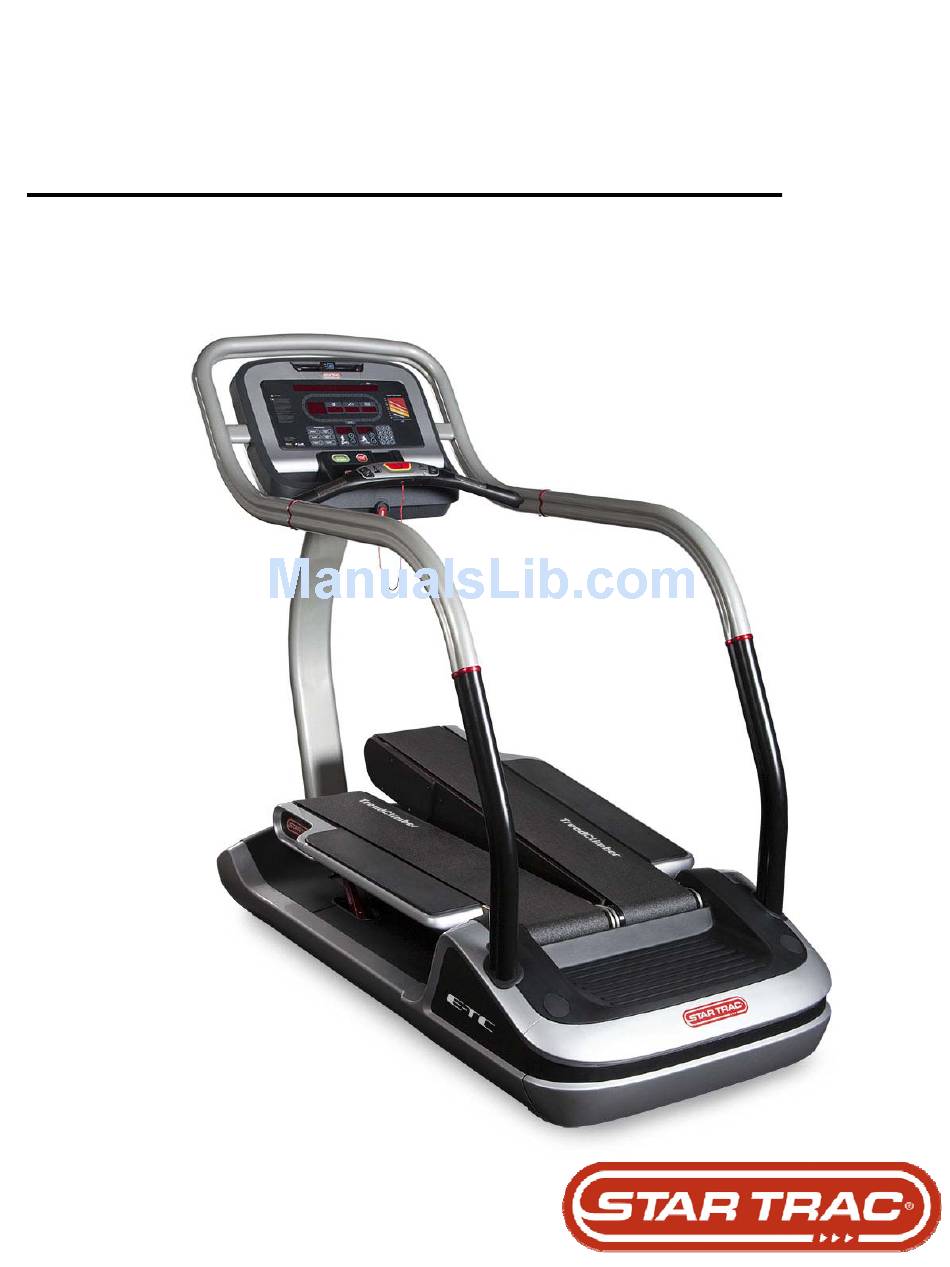

  • Page 1 ® TreadClimber ® NSTALLATION & WNER’S ANUAL...
  • Page 2 TREADCLIMBER by STAR TRAC - OWNER’S MANUAL |...

  • Page 3: Table Of Contents

    Heart Rate Monitoring Contact Heart Rate Monitoring Chest Strap Heart Rate Monitoring Setting & Testing Manager Mode Maintenance Mode Motor Calibration Troubleshooting Regulatory Information International Regulations Maintenance Daily Maintenance Weekly Maintenance Monthly Maintenance Adjustments TREADCLIMBER by STAR TRAC - OWNER’S MANUAL |...
  • Page 4 Fax: (714) 508-3303 http://www.startrac.com ustomer upport If any items need replacement contact the Star Trac Customer Support Department at 800-503-1221 or 714-669-1660. ® STAR TRAC and the Star Trac logo are registered trademarks of Core Industries. TreadClimber is a registed trademark of Nautilus Inc. and used under licence.

  • Page 5: Safety Instructions

    Attention Star Trac recommends that units be spaced a minimum of 8 inches (200 mm) apart to allow safe and easy ingress and egress. More importantly, there must be at least 48 inches (1.25 m) of free space behind them each unit.

  • Page 6: Precautions

    Do perform regular inspection and preventive Do not place water bottles or cups on your maintenance as specified in the manual. TreadClimber unless you are using the designated holders for the TreadClimber TREADCLIMBER by STAR TRAC - OWNER’S MANUAL |...
  • Page 7 Do try charting your progress using the feedback damaged, or if the display console shows an error code. Contact the Star Trac Customer Support Department at from your TreadClimber. 800-503-1221 or 714-669-1660 for instructions before Do try using the incline feature to burn more calories retuning the unit to operation.
  • Page 8 Zorg ervoor dat het oppervlak van de band schoon Ga de band niet op af terwijl deze loopt. en droog blijft. Zorg ervoor dat u weet waar de noodstop zit en hoe deze werkt. TREADCLIMBER by STAR TRAC - OWNER’S MANUAL |...
  • Page 9 Gebruik uw hardloopband niet in een omgeving waar spuitbussen worden gebruikt of waar zuurstof wordt toegediend. Bedien het aparaat niet zonder de motorafscherming of pas het apparaat op geen enkele wijze aan. TREADCLIMBER by STAR TRAC - OWNER’S MANUAL |...
  • Page 10 Respectez les périodes d’échauffement et de près d’une piscine. récupération. Ne laissez rien rentrer dans les ouvertures. Ne posez Vérifier où se trouve l'interrupteur STOP pas vos pieds sous l’appareil. d'urgence et comment l'utiliser correctement. TREADCLIMBER by STAR TRAC - OWNER’S MANUAL |...
  • Page 11 ACHTUNG: GERÄT VOR DEM REINIGEN ODER BEDIENUNG WARTEN VON DER STROMVERSORGUNG UNTERBRECHEN TRENNEN WECHSELSTROM ACHTUNG: VOR DER BENUTZUNG SICHERHEITSVORCHRIFTEN LESEN ACHTUNG: BEWEGLICHE TEILE - BEI BETRIEB HÄNDE UND FÜSSE VOM BEREICH UNTERHALB DES LAUFBANDES FERN HALTEN TREADCLIMBER by STAR TRAC - OWNER’S MANUAL |...
  • Page 12 Die Stromversorgung immer am Netzschalter Zweck und für dieses Laufband gedachtes Zubehörteil. abschalten. Das Laufband in Räumlichkeiten benutzen, in denen Produkte in Aerosoldosen (Sprays) angewandt werden oder in denen Sauerstoff verabreicht wird. TREADCLIMBER by STAR TRAC - OWNER’S MANUAL |...
  • Page 13 LEGGETE TUTTE LE ISTRUZIONI PRIMA DI USARE IL TREADCLIMBER. ® ATTENZIONE: per redurre il rischio di scossa elettrica, staccate SEMPRE la spina della corrente del TreadClimber ® STAR TRAC prima di pulirlo. TREADCLIMBER by STAR TRAC - OWNER’S MANUAL |...
  • Page 14 Non tirate troppo il nastro. Eseguite la manutenzione regolare. Mantenete la corda elettrica lontana da fonti Non usate il TreadClimber by STAR TRAC se il cavo di calore. elettrico o las spina sono danneggiati, se non funziona come dovrebbe o se è caduto o è danneggiato.
  • Page 15 Não utilize a esteira ao ar livre. Informe-se sobre a posição e o uso adequado da Não estique demais o tapete da esteira. chave de emergência STOP. TREADCLIMBER by STAR TRAC - OWNER’S MANUAL |...
  • Page 16 (spray) ou em lugares onde esteja sendo administrado oxigênio. Não opere o equipamento com a tampa do motor removida nem faça nenhuma modificação no equipamento. TREADCLIMBER by STAR TRAC - OWNER’S MANUAL |...

  • Page 17: Instrucciones De Seguridad

    No suba o baje del tapiz rodante mientras está Conozca sus limitaciones. funcionando. Desenchufe el tapiz rodante antes de limpiar, quitar o cambiar alguna pieza. No lleve ropa suelta ni que cuelgue mientras utiliza la cinta andadora. TREADCLIMBER by STAR TRAC - OWNER’S MANUAL |...
  • Page 18 Póngase en contacto con su vendedor autorizado de StairMaster, Realice un mantenimiento preventivo de manera con el departamento de servicios de Star Trac regular. llamando al número +1 800-503-1221 o accediendo a nuestra página de la web en http://www.startrac.com, Mantenga el cable separado de fuentes de calor.
  • Page 19 Træk trædemøllens stik ud af kontakten, før du gør den Bär inga löst hängande kläder som kan fastna när du ren, eller fjerner eller udskifter en del. använder löpbandet. Brug ikke trædemøllen udendørs. Stram ikke løbebåndet for meget. TREADCLIMBER by STAR TRAC - OWNER’S MANUAL |...
  • Page 20 (spray), eller hvor der administreres ilt. Udstyret må ikke køre uden motorafskærmning, og det er ikke tilladt at ændre udstyret på nogen måde. TREADCLIMBER by STAR TRAC - OWNER’S MANUAL | Assembly & Setup...

  • Page 21: Assembly And Setup

    Take time now to enter your TreadClimber serial number in the space below (serial number is located along the base of the frame in the front). If parts are missing, or if you have any operational questions, please call Star Trac’s Service department at (800) 503-1221.

  • Page 22: Assembly Instructions

    Neck Mast Handrail Grommets Upper Handrails (Left & Right) Handrail Beauty Rings Lower Handrails (Left & Right) Rear Corner Shroud (Left & Right) Hardware Pack Rear Shroud Neck Grommet Fig. 3 TREADCLIMBER by STAR TRAC - OWNER’S MANUAL | Assembly Instructions...
  • Page 23 6. Mount the neck mast (Fig. 6) to the base by lightly torquing four socket head cap screws in place at the front of the base frame. Final Torque: 240 In-Lbs (27 Nm) Fig. 6 TREADCLIMBER by STAR TRAC - OWNER’S MANUAL | Assembly Instructions...
  • Page 24 (Fig. 9) and mount the upper handrail by loosely threading two button head cap screws in place. Verify that the radius cutout clears the lower securing screw. Final Torque: 35 In-Lbs (4.0 Nm) Fig. 9 TREADCLIMBER by STAR TRAC - OWNER’S MANUAL | Assembly Instructions...
  • Page 25 12. Loosely thread four socket head cap screws (Fig. 12) with washers through the neck mast mount plate on to the console frame mount plate. Final Torque: 240 In-Lbs (27 Nm) Fig. 12 TREADCLIMBER by STAR TRAC - OWNER’S MANUAL | Assembly Instructions...
  • Page 26 (Fig. 14) specifications which are listed in the notes section of the step instructions. Fig. 14 15. Hover the top half of the display (Fig. 15) over the console frame. Fig. 15 TREADCLIMBER by STAR TRAC - OWNER’S MANUAL | Assembly Instructions...
  • Page 27 18. From the back of the display (Fig. 19), connect the display’s grounding wire to the frame using a washer & Phillips head screw (Fig. 18). Fig. 18 Fig. 19 TREADCLIMBER by STAR TRAC - OWNER’S MANUAL | Assembly Instructions...
  • Page 28 Phillips head screws at the corresponding circled locations (Fig. 21). Fig. 21 21. Dislodge the rear step shroud from the TreadClimber base (Fig. 22) and move the handrail grommets up the handrails. Fig. 22 TREADCLIMBER by STAR TRAC - OWNER’S MANUAL | Assembly Instructions...
  • Page 29 & right handrail grommets into the available open space between the shrouds. Secure the rear step shroud by installing the corresponding five Phillips head screws at the circled locations. Fig. 26. TREADCLIMBER by STAR TRAC - OWNER’S MANUAL | Assembly Instructions...
  • Page 30 27. With two or more people, have one person carefully tilt the assembled TreadClimber (Fig. 29) at an angle by pushing up at the center of each handrail while the second person installs the rear stabilizing feet. Fig. 29 TREADCLIMBER by STAR TRAC - OWNER’S MANUAL | Assembly Instructions...
  • Page 31 Fig. 32 32. Power on the machine and enter into “Maintenance Mode” to process a “Motor Calibration” procedure. Once “Motor Calibration” is complete; the TreadClimber is ready for initial use. TREADCLIMBER by STAR TRAC - OWNER’S MANUAL | Assembly Instructions...

  • Page 32: Operating Instructions

    30 seconds). Use the LOCK OUT option in MAINTENANCE SETTINGS to enable/disable the lock out feature; use the LOCKOUT ID option to change the default ID (see Settings & Testing). TREADCLIMBER by STAR TRAC - OWNER’S MANUAL | Operating Instructions...

  • Page 33: Display Control Panel Features

    OK Key: Selects/Enters values and programs during set-up. Time Window: Shows the total time you have walked so far. Distance Window: Shows the total number of miles or kilometers you have walked thus far. TREADCLIMBER by STAR TRAC - OWNER’S MANUAL | Operating Instructions...
  • Page 34 Maintenance Settings mode, workout data may include: Time remaining Vertical distance travelled - feet or meters Distance remaining - miles or kilometers METS Calories expended per hour Heart Rate Minutes per mile/kilometer TREADCLIMBER by STAR TRAC - OWNER’S MANUAL | Operating Instructions...

  • Page 35: Hot Bar® Control Features

    Stop Lanyard Clip before operating the unit. It is the facility’s responsibility to train and instruct in the proper use of the TreadClimer by Star Trac including use of all of the safety features. Note: A clipping feature is provided in the display housing to store the Stop Lanyard Clip when the unit is not in use.

  • Page 36: Hints And Tips For Getting Started

    For best workout, use the highest incline level that you can safely control. Using a more challanging incline level will greatly increase your work effort and calorie burn, even at low speed. TREADCLIMBER by STAR TRAC - OWNER’S MANUAL | Operating Instructions...

  • Page 37: Quick Start

    If you wish to exit your program before you have reached your workout goal, press the STOP key twice. The unit will slow to a stop. (Press the STOP key once during a Pause to exit the program.) TREADCLIMBER by STAR TRAC - OWNER’S MANUAL | Operating Instructions...

  • Page 38: Preset Programs

    The workout will begin at a low speed and level, and the TreadClimber will adjust the Speed and Level as you go. Speed and Level can also be adjusted manually at any time. TREADCLIMBER by STAR TRAC - OWNER’S MANUAL | Operating Instructions...

  • Page 39: Heart Rate Training Programs

    NOTE: during setup, there must be at least an 18 BPM difference between the lower and upper HR limits to ensure an interval workout. TREADCLIMBER by STAR TRAC - OWNER’S MANUAL | Operating Instructions...

  • Page 40: Cooldown Cycle

    Using the Cooling Fan Star Trac is the originator of integrating a fan into a piece of cardio equipment. The TreadClimber built-in cooling fan can increase your comfort during a workout. You can control the fan speed during your workout. The fan will automaticlly turn on one minute into your workout.

  • Page 41: Contact Heart Rate Monitoring

    Always be sure that the transmitter and skin are in good contact. Avoid operating other electrical ® equipment near your TreadClimber when you use the heart rate strap. TREADCLIMBER by STAR TRAC - OWNER’S MANUAL | Operating Instructions...

  • Page 42: Setting & Testing

    START key may be used (see above). Number/Program Select Keys: Enter new data item values for numeric parameters. Stop Key: Exits Manager Mode and restarts the TreadClimber by STAR TRAC greeting. The items that you may display and change with the previous keys are:  ...

  • Page 43: Maintenance Mode

    A beep will sound and “MAINTENANCE MODE” will display momentarily in the Information Window. Release the remaining keys. “MCI VX.XX CKSM XXXX” will display in the Information Window. TREADCLIMBER by STAR TRAC - OWNER’S MANUAL | Operating Instructions...
  • Page 44 ON=Auto stop feature enabled. OFF=Auto stop feature disabled. CSAFE ON=CSAFE communication enabled. OFF=CSAFE communication disabled. ATSC PVS type, ATSC/NTSC OR PAL/SECAM. LOCK OUT ON=TreadClimber lock out enabled. OFF=TreadClimber lock out disabled. TREADCLIMBER by STAR TRAC - OWNER’S MANUAL | Operating Instructions...
  • Page 45 When the MINIMUM SPEED or MAXIMUM SPEED parameters are changed, the unit will perform an auto calibration. To terminate the auto calibration and return the parameter to its default setting, press the STOP key. TREADCLIMBER by STAR TRAC - OWNER’S MANUAL | Operating Instructions...

  • Page 46: Motor Calibration

    When the test is finished the information window will display one of the 2 messages “Passed Calibration” or “Failed Calibration”. If “Failed Calibration” is displayed run test again, if it continues, call for maintenance. Press the STOP key to exit the Motor Calibration function. TREADCLIMBER by STAR TRAC - OWNER’S MANUAL | Operating Instructions...

  • Page 47: Troubleshooting

    When you see CHECK SPEED SYS or SPEED CHANGE: • Set the ON/OFF switch to OFF; wait 2 seconds. • Set the ON/OFF switch to ON. Notify Service if additional assistance is needed. TREADCLIMBER by STAR TRAC - OWNER’S MANUAL | Operating Instructions...

  • Page 48: Regulatory Information

    This product has been tested to meet the following standards: UL 1647 (Safety for Motor operated Message and Exercise Machines). CAN/CSA – E335-1/3E - 94- Safety of household and similar appliance TREADCLIMBER by STAR TRAC - OWNER’S MANUAL | Operating Instructions...

  • Page 49: International Regulations

    Immunity EN60947-5-1 Positive opening mechanism::VDE approval (pending) EN61000-3-2 Harmonics Current Emission EN61000-3-3 Flicker and Voltage Fluctuation EN61000-4-3 Radiated Immunity/ Conducted Immunity EN61000-4-2 EN61000-4-4 EN61000-4-5 Surge EN61000-4-11 Voltage Dip & Interruption TREADCLIMBER by STAR TRAC - OWNER’S MANUAL | Operating Instructions...

  • Page 50: Maintenance

    DEPARTMENT at (800) 503- 1221, or USA 1-714-669-1660. If any components are found to be worn or damaged, the TreadClimber should be removed from service until repairs can be made. Only components supplied or approved by Star Trac shall be used to maintain and/or repair the treadmill.

  • Page 51: Adjustments

    3. NOTE: ONLY USE THE LEFT SCREW FOR TRACKING ADJUSTMENT.   4. After the running belt appears to be tracking properly, increase the TreadClimber by STAR TRAC speed to 4.0 mph (6.7 km/h) and verify that the belt stays centered.  ...
  • Page 52 Phone +1 360-836-3401 Fax +1 360-314-2865 Toll-free within the U.S.A., Canada 1 888-678-2476 http://www.startrac.com email: support@startrac.com Star Trac Europe Unit 4, The Gateway Centre, Coronation Road Cressex Business Park, High Wycombe, Bucks HP12 3SU United Kingdom Phone +44 (0) 1494 688260...
