Pantron ISG-A1 Series Operating Instructions

Operating instructions

Amplifier ISG-A1...
Automatic amplifiers are the further development of standard amplifiers (manual gain setting). They work without
adjustment and operate by switching on the power supply to the correct range, adjusting the transmit power to
an optimum, and by constantly regulating the effects of disturbances. The switching point is over the entire range
of transmit power and is constant and reproducible. The amplifier works with modulated infrared light, which
enables a high degree of light immunity to ambient light. The circuit is developed to only recognize a particular
frequency and phase. In this way an influence by other infrared light barriers is virtually impossible.

Safety Instructions

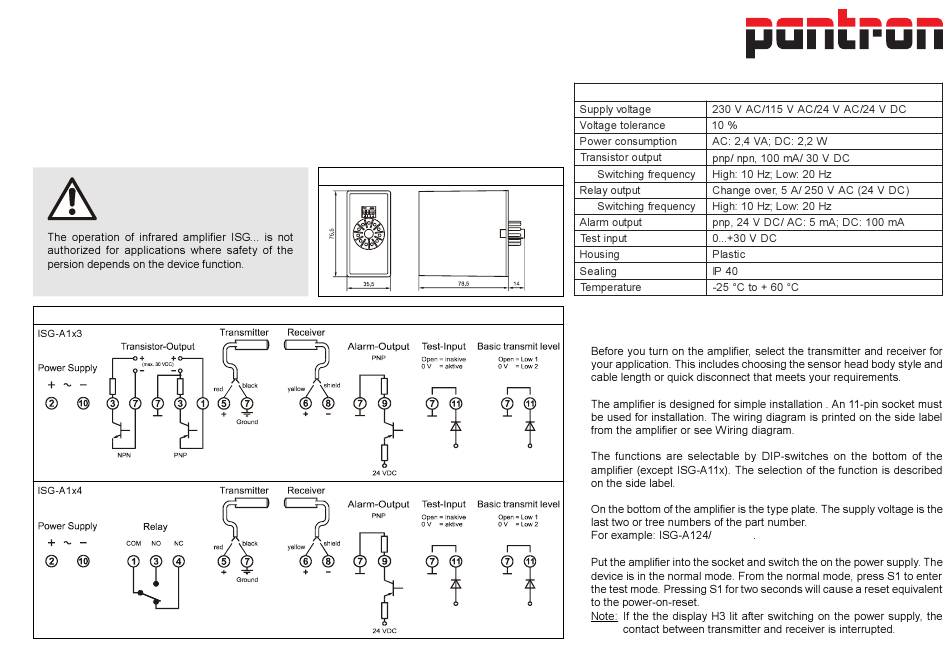

Wiring diagram
Dimensions
except ISG-A113 only ISG-A113
except ISG-A114
T e c h n c i l a D a a t
mm
Assembly and use
1. Choose the sensor heads
2. Connect wiring to the socket
3. Choose the function
4. Check the supply voltage
5. Operating procedure
only ISG-A114
230VAC
