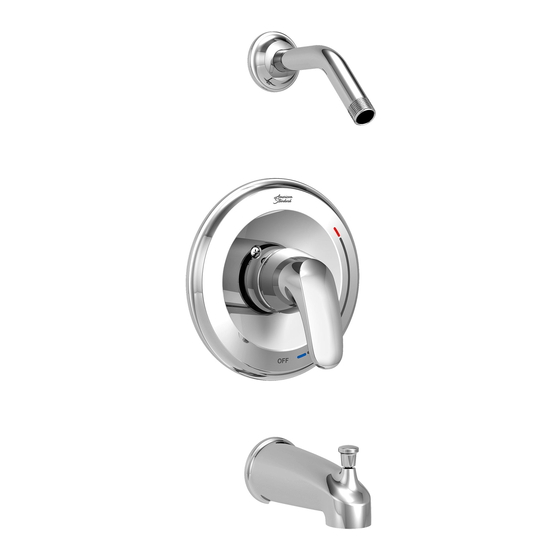

American Standard Colony pro Series Installation Instructions

Colony Pro
®
Pressure Balancing
Bath and Shower Trim Kit
Thank you for selecting American Standard...
the benchmark of fine quality for over 100 years.
To ensure that your installation proceeds smoothly-please
read these instructions carefully before you begin.
For use with shower heads rated at 4.9 L/min (1.3 gpm) or higher.

RECOMMENDED TOOLS

Plumbers' Putty
or Caulking

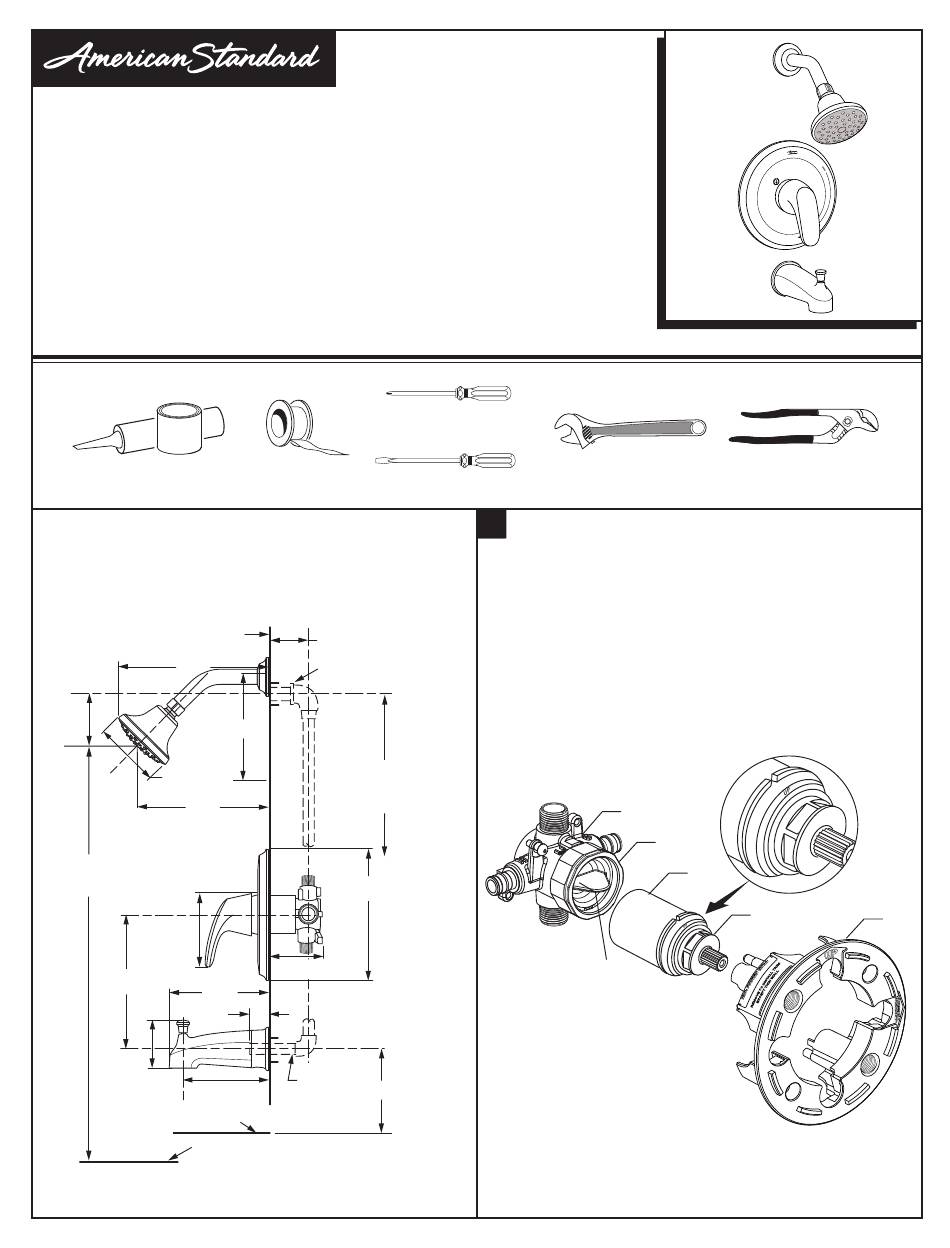

ROUGHING-IN DIMENSIONS

• To assure proper positioning in relation to wall.
Note roughing-in dimensions.
FINISHED WALL
8-9/16"
(217 mm)
4-1/16"
(99 mm)
3-3/4"
(96 mm)
7-1/2"
(190 mm)
74" (1879 mm)
FOR HEAD
CLEARANCE
4-3/16"
(106 mm)
18" (457 mm)
OPTIONAL
5-11/16"
(144 mm)
1-1/2"
(38 mm)
2-7/8"
(72 mm)
4-7/8"
(124 mm)
TOP OF TUB RIM
BOTTOM OF TUB
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2018
Phillips Screwdriver
Teflon Tape
Flat Blade Screwdriver
2" TO 3"
(51 TO 76 mm)
1/2" NPT
6-1/8"
(155 mm)
OPTIONAL TO FINISHED
FLOOR USUALLY
BETWEEN 65'' AND 78"
(1651 AND 1981 mm)
7-1/2" DIA.
(190 mm)
2-3/4" MAX. (69 mm)
1-3/4" MIN. (45 mm)
1/2" COPPER
4" (102 mm)
FOR SLIP-ON
SPOUT
INSTALLATION
INSTRUCTIONS
TU075500
TU075507
TU075508
TU075507XH
TU075508XH
Adjustable Wrench
1 1

CARTRIDGE INSTALLATION

• Remove PLASTER GUARD (6)
(Keep it installed for thin wall Installation).
• Remove BONNET NUT (1) by unthreading it
Counter clockwise. Remove test CAP (2).
• Remove PROTECTIVE HOUSING (3) from
CARTRIDGE (4). Install with "UP" text on top.
• Reinstall BONNET NUT (1) onto VALVE BODY (5)
and tighten firmly with 12 Nm or 9 lbs/ft.
5
2
NOTE: Specified tightening torque
of BONNET NUT (1) is critical to
assure sealing function.
- 1 -
OFF
Channel Locks
1
3
4
M965931 Rev. 1.0 (12/18)
6
