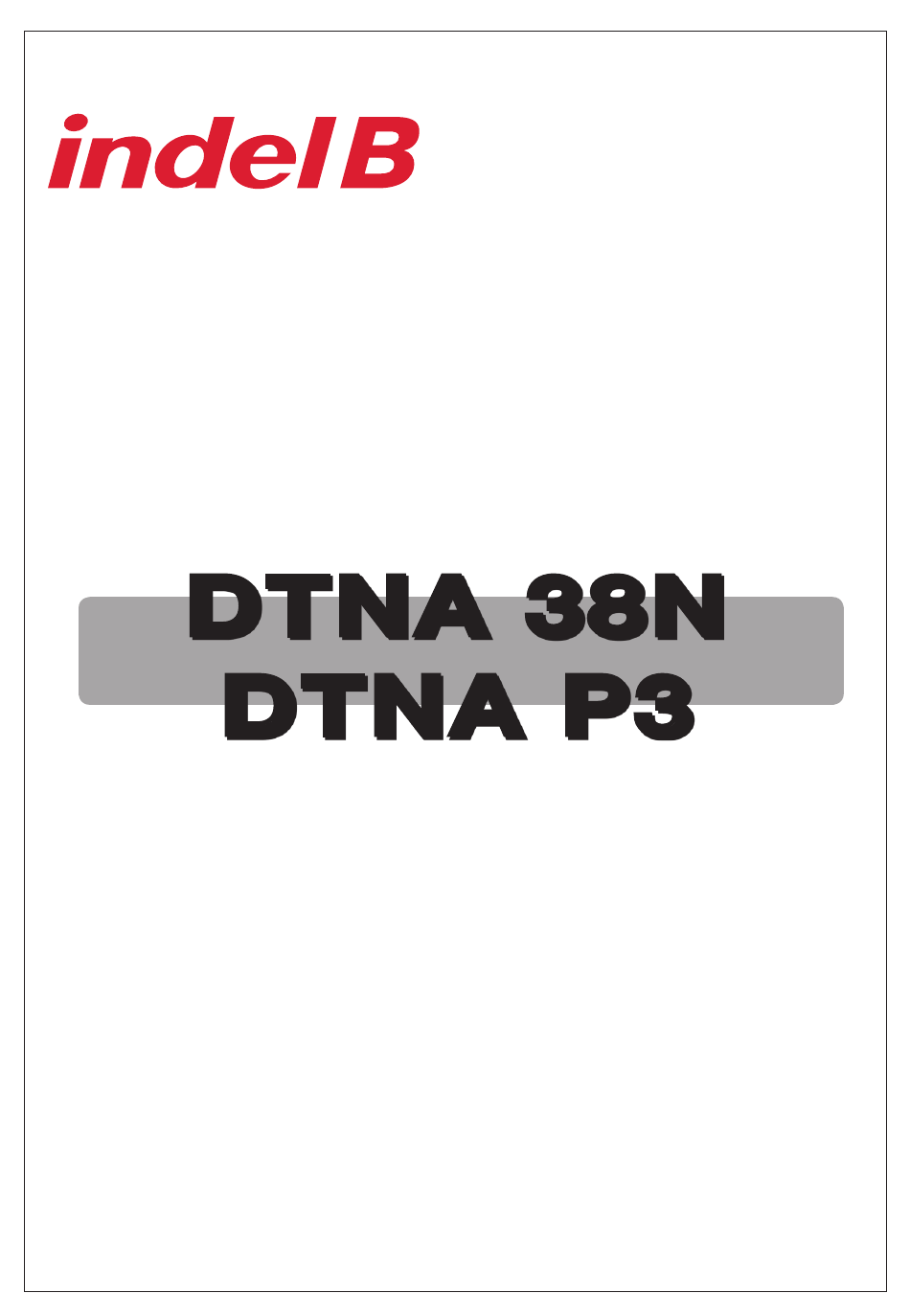

INDEL B S.p.A.
Via Sarsinate, 27
47866 S. Agata Feltria (RN) ITALY
Tel.: +39 0541 848 711 - Fax: +39 0541 848 741
www.indelb.com
info@indelb.com
DTNA 38N
DTNA P3
INSTRUCTIONS FOR USE
DTNA_31-01-2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTNA 38N and is the answer not in the manual?

Questions and answers

Summary of Contents for Indel B DTNA 38N

  • Page 1 INDEL B S.p.A. Via Sarsinate, 27 47866 S. Agata Feltria (RN) ITALY Tel.: +39 0541 848 711 - Fax: +39 0541 848 741 www.indelb.com info@indelb.com DTNA 38N DTNA P3 INSTRUCTIONS FOR USE DTNA_31-01-2018...
  • Page 3: Table Of Contents

    FORM G HOW TO FIX THE PCB LOAD DUMP TO THE ECU ............. 22 CHAPTER 3: HOW TO REPLACE AESTHETICAL PARTS ..............23 PART 1: DOOR (DTNA 38N) ......................24 PART 2: EVAPORATOR DOOR (DTNA 38N) ................. 25 PART: HANDLE (DTNA 38N) ......................26 PART 1: DOOR - (DTNA P3) ......................27 PART: HANDLE - (DTNA P3) ......................
  • Page 4: Chapter 1: Instructions For Use

    DTNA ENGLISH INSTRUCTIONS FOR USE INSTRUCTIONS FOR USE DTNA_31-01-2018...
  • Page 5: General Information

    They can work even if they are assembled at a slant of up to 30°. In order to make sure that your Indel B refrigerator works as efficiently as possible, please pay attention to the following general instructions: •...
  • Page 6: Wiring System

    DTNA ENGLISH The refrigerators are pre-set for being assembled in a niche of the truck. It is very important for the refrigerating unit, consisting of the compressor and the condenser, to be well ventilated, with the cool air coming in from the bottom and going out from the top. You must ensure proper ventilation of the refrigerating unit.
  • Page 7: Setting The Inside Temperature

    Warning The power cable must be replaced only by qualified technical personnel and, in any case, by a service authorized by the manufacturer. INDEL B disclaims any responsibility if the above instructions and conditions are disattended or not met. DTNA_31-01-2018...
  • Page 8: Chapter 2: How To Detect Functional Problems And Fix Them

    DTNA ENGLISH HOW TO DETECT FUNCTIONAL HOW TO DETECT FUNCTIONAL PROBLEMS AND FIX THEM PROBLEMS AND FIX THEM DTNA_31-01-2018...
  • Page 9: Problem: Refrigerator Does Not Work At All / No Cooling And No Vibration From Motor/ Compressor

    DTNA ENGLISH 2.1 PROBLEM: REFRIGERATOR DOES NOT WORK AT ALL / NO COOLING AND NO VIBRATION FROM MOTOR/ COMPRESSOR Check if protection fuse of truck is ok Replace fuse Not ok Check if refrigerator power cable is Check if thermostat is switched on. Not ok properly connected with battery cable Wait 60 seconds and check again.
  • Page 10: Problem: Refrigerator Does Not Work At All / No Cooling And No Vibration From Motor/ Compressor + Fan Does Not Work

    DTNA ENGLISH 2.2 PROBLEM: REFRIGERATOR DOES NOT WORK AT ALL / NO COOLING AND NO VIBRATION FROM MOTOR/ COMPRESSOR + FAN DOES NOT WORK Check if protection fuse of truck is ok Replace fuse Not ok Not ok Check if thermostat is switched on. Check if refrigerator power cable is Not ok Wait 60 seconds and check again.
  • Page 11: Problem: Refrigerator Is Not Cooling Enough But Compressor Runs

    DTNA ENGLISH 2.3 PROBLEM: REFRIGERATOR IS NOT COOLING ENOUGH BUT COMPRESSOR RUNS Check if thermostat is switched to Heck if temperature on the evaporator maximum position after 30 minutes is below 32°F Not ok Remove refrigerator out of vehicle Remove connectors from C and T of Not ok Contact for Service ECU and jumper wire...
  • Page 12: Form A How To Fix Lamp

    DTNA ENGLISH 2.4 FORM A HOW TO FIX LAMP The interior lighting is installed at the top. Check to make sure that a proper 12 V light bulb has been installed, based on the voltage of the electrical system to which the refrigerator has been connected. The consignment includes a 12 V light bulb (Max power: 3 W).
  • Page 13: Form B To Disconnect The Load Dump Circuit And Connect Directly The Ecu

    DTNA ENGLISH 2.5 FORM B TO DISCONNECT THE LOAD DUMP CIRCUIT AND CONNECT DIRECTLY THE ECU Time: 3 minutes Disconnect all the wires from the load Remove the load dump circuit from the dump circuit Connect the black wire on - and he red wire on + DTNA_31-01-2018...
  • Page 14: Form C How To Short Circuit Thermostat On Ecu

    DTNA ENGLISH 2.6 FORM C HOW TO SHORT CIRCUIT THERMOSTAT ON ECU Time: 3 minutes Disconnect the brown and the blue wire from ECU on positions C, P and T (1) Make a bridge between C and T (2) DTNA_31-01-2018...
  • Page 15: Form D How To Replace Thermostat

    DTNA ENGLISH 2.7 FORM D HOW TO REPLACE THERMOSTAT Time for repair: 35 minutes Remove the plastic rivet on the left of the lamp holder Unscrew evaporator from cabinet DTNA_31-01-2018...
  • Page 16 DTNA ENGLISH Unscrew the lamp holder (3 screws) Remove the thermostat knob pulling it out DTNA_31-01-2018...
  • Page 17 DTNA ENGLISH Unscrew the nut of the thermostat Disconnect the wires from thermostat DTNA_31-01-2018...
  • Page 18 DTNA ENGLISH Unscrew the support of the thermostat Unscrew the fixing supports of the evaporator DTNA_31-01-2018...
  • Page 19 DTNA ENGLISH Pull out the support of the thermostat sensor Thermostat sensor support DTNA_31-01-2018...
  • Page 20 DTNA ENGLISH Remove the rubber protection pipe DTNA_31-01-2018...
  • Page 21: Form E How To Replace Ecu (Electronic Control Unit)

    DTNA ENGLISH 2.8 FORM E HOW TO REPLACE ECU (ELECTRONIC CONTROL UNIT) Time: 15 minutes Remove all the wires from the ECU Remove the ECU pushing it out with the help of a screwdriver Remove the load dump circuit DTNA_31-01-2018...
  • Page 22: Form F How To Test And Replace Fan

    DTNA ENGLISH 2.9 FORM F HOW TO TEST AND REPLACE FAN Time: 30 minutes Disconnect the wire from + and F Cut the plastic strip DTNA_31-01-2018...
  • Page 23 DTNA ENGLISH Unscrew the fixing plastic bracket of the wires Unscrew the condenser support Cut the plastic strips of the fan to uninstall it DTNA_31-01-2018...
  • Page 24: Form G How To Fix The Pcb Load Dump To The Ecu

    DTNA ENGLISH 2.10 FORM G HOW TO FIX THE PCB LOAD DUMP TO THE ECU If you find that the circuit board has a poor/loose connection on the ECU, place a zip tie around the ECU/ circuit board and verify operation. If this does not resolve the issue continue with normal troubleshooting. DTNA_31-01-2018...
  • Page 25: Chapter 3: How To Replace Aesthetical Parts

    DTNA ENGLISH HOW TO REPLACE HOW TO REPLACE AESTHETICAL PARTS AESTHETICAL PARTS DTNA_31-01-2018...
  • Page 26: Part 1: Door (Dtna 38N)

    DTNA ENGLISH 3.1 PART 1: DOOR (DTNA 38N) Time: 10 minutes Unscrew the bottom hinge (3) Unscrew the top hinge and remove the door DTNA_31-01-2018...
  • Page 27: Part 2: Evaporator Door (Dtna 38N)

    DTNA ENGLISH 3.2 PART 2: EVAPORATOR DOOR (DTNA 38N) Time: 5 minutes 1 open the evaporator door. 2 Bend the door using the two hands pushing from the sides 3 after the operation 2 pivots go out from the holes on the plastic frame...
  • Page 28: Part: Handle (Dtna 38N)

    DTNA ENGLISH 3.3 PART: HANDLE (DTNA 38N) Time: 10 minutes 1 Raise up the handle and push the spring towards the middle. The handle and the pivot will be unfixed 2 Insert the pivot of the handle from the top of the door and push it inside.
  • Page 29: Part 1: Door - (Dtna P3)

    DTNA ENGLISH 3.4 PART 1: DOOR - (DTNA P3) Time: 10 minutes Unscrew the ventilation top grid (1) Unscrew the ventilation top grid (2) Unscrew the ventilation top grid (3) Unscrew the ventilation top grid (4) DTNA_31-01-2018...
  • Page 30 DTNA ENGLISH Unscrew the top hinge Remove the door (1) Remove the door (2) DTNA_31-01-2018...
  • Page 31: Part: Handle - (Dtna P3)

    DTNA ENGLISH 3.5 PART: HANDLE - (DTNA P3) Time: 10 minutes Unscrew the two frontal screws of the handle Unscrew the bottom of the handle Remove the bottom part of the handle Remove the handle DTNA_31-01-2018...
  • Page 32: Part 1: Door Panel - (Dtna P3)

    DTNA ENGLISH 3.6 PART 1: DOOR PANEL - (DTNA P3) Time: 12 minutes After having removed the handle, pull out the frame with the help of a screwdriver Keep out the bottom frame let slide the panel from the bottom DTNA_31-01-2018...
  • Page 33: Chapter 4: Spare Parts

    DTNA ENGLISH SPARE PARTS SPARE PARTS DTNA_31-01-2018...
  • Page 34: Dtna 38N - Cabinet

    DTNA ENGLISH DTNA_31-01-2018...
  • Page 35: Dtna 38N - Cooling Unit

    DTNA ENGLISH DTNA_31-01-2018...
  • Page 36: Dtna P3 - Cabinet

    DTNA ENGLISH DTNA_31-01-2018...
  • Page 37: Dtna P3 - Cooling Unit

    DTNA ENGLISH DTNA_31-01-2018...
  • Page 38: Spare Parts List

    DTNA ENGLISH 4.5 SPARE PARTS LIST Indel B p/n Description DTNA 38N DTNA  P3 G132 G524 COMPRESSOR L002 EVAPORATOR L003 CONDENSER L004 INNER SHELF L006 Lower door big balcony without bottle dividers L007 Bottle retainer with dividers L008 Evaporator door...
