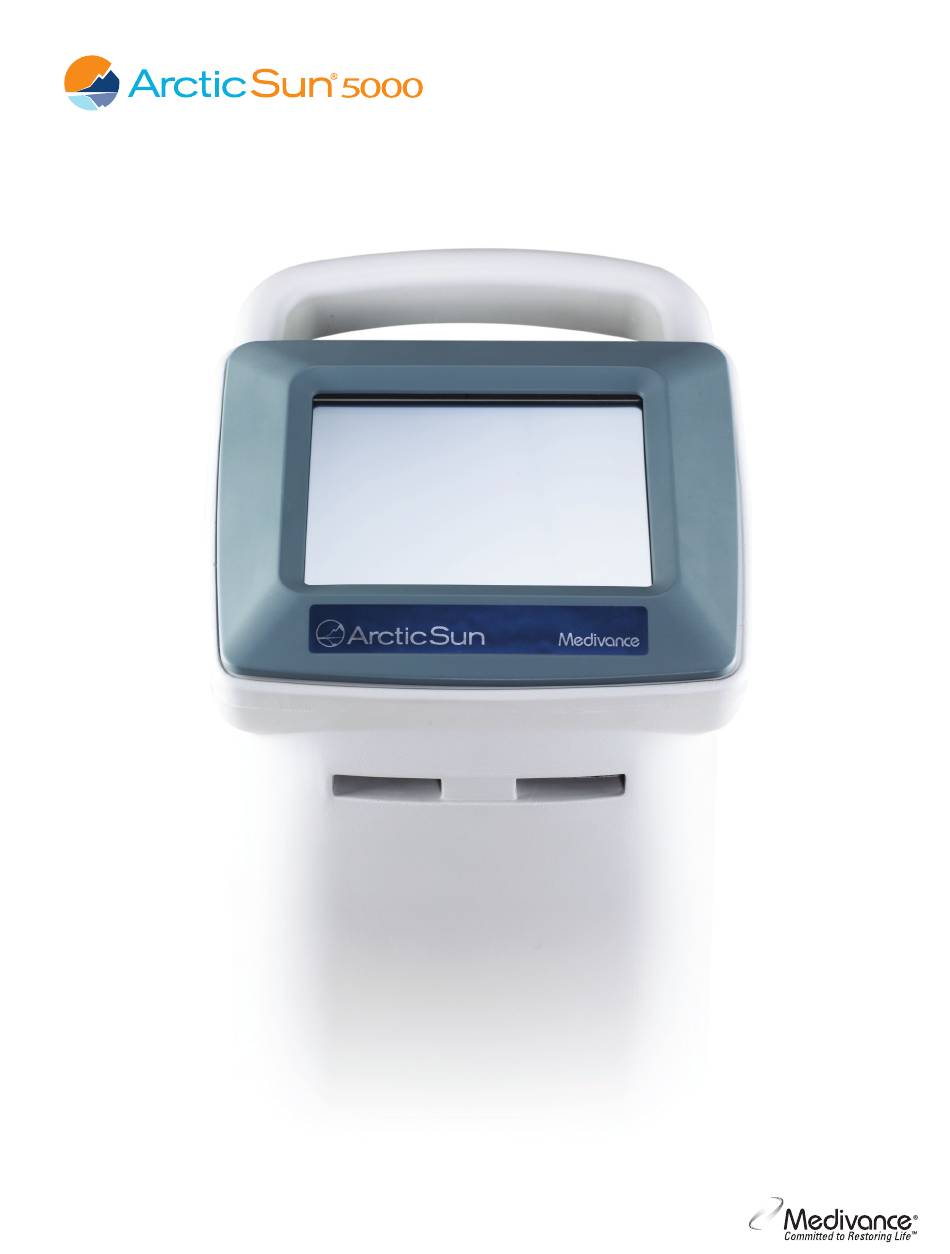

- Page 1 S E R V I C E m a n u a l...
-
Page 2: Table Of Contents
A S 5 0 0 0 S E R V I C E M A N U A L TABLE OF CONTENTS Chapter 1 – Getting Started ................1 Introduction....................... 1 Customer Support .................... 1 Warnings & Cautions ..................1 System Setup .................... -
Page 3: Chapter 1 - Getting Started
Medivance recommends measuring patient temperature from a second site The Arctic Sun Temperature Management System is intended for to verify patient temperature. Medivance recommends the use of a second monitoring and controlling patient temperature. patient temperature probe connected to the Arctic Sun Temperature 2 input, as use of the second probe allows the unit to provide continuous monitoring and safety alarm features. -
Page 4: System Setup
Medivance will not be responsible for patient safety or equipment Power Cord performance if the procedures to operate, maintain, modify, or Equipotential Drain Ports service the Medivance Arctic Sun are other than those specified by Stud Medivance. Air Filter System Setup Unpack 1) Unpack the Arctic Sun Control Module and accessories. -
Page 5: System Navigation
E N G L I S H System Navigation Therapy Screens Fig. 1-4 Normothermia Therapy screen Fig. 1-2 Start-up screen with training module A training module including a section for Clinical Engineering (Setup and Maintenance) is available from the start-up screen. Fig. - Page 6 A S 5 0 0 0 S E R V I C E M A N U A L Fill Reservoir • Four liters of sterile or distilled water are required to fill the reservoir at initial installation. • Prior to filling, add one vial of Arctic Sun Cleaning Solution to the water. •...
-
Page 7: Chapter 2 Components
E N G L I S H Chapter 2 Components Electronic Components Cables – power cord and temperature cables. Additional adapter Hydraulic Components cables are available to purchase for use with different manufacturers’ temperature probes. In addition, temperature out cables can be Fluid Delivery Line –... -
Page 8: Chapter 3 Theory Of Operation
A S 5 0 0 0 S E R V I C E M A N U A L INLET/OUTLET MANIFOLD VENT LINE CHILLER FILL LINE TANK BYPASS LINE CIRCULATION TANK SUPPLY TANK HEATER T2 FLOW METER FLUID FLUID DELIVERY DELIVEY CHILLER MIXING... -
Page 9: Ancillary Hydraulic Circuits
Use a soft cloth dampened with disinfectant according to • System information update to the Control Panel hospital protocol. Medivance has qualified and approves the use of the • Circulation Tank water temperature control (T2 & T3) following types of disinfectants for exterior surfaces: sodium hypochlorite, •... -
Page 10: Chapter 5 - Advanced Setup
Arctic Sun icon will blink. solutions and instructions for troubleshooting and resolving the alarm 7) If the condition does not resolve, contact Medivance Customer Support. condition. Alerts Alerts are denoted by an audio signal that repeats every 2 minutes. -
Page 11: Alarm And Alert Listing
E N G L I S H Alarms and Alert Listing Alarm Alert The following table consists of a listing of the alarms and alerts that a user might observe during use of the Arctic Sun 5000. Text highlighted in yellow denotes an alert, while red denotes an alarm. Alarm/Alert Message Displayed Problem... - Page 12 A S 5 0 0 0 S E R V I C E M A N U A L Patient Temperature 1 Calibration Error The system is unable to internally check the calibration of the Patient Tem- perature 1 channel within ± 1.0 °C while in a patient control mode (e.g. Control Patient, Cool Patient or Rewarm Patient).
- Page 13 E N G L I S H Patient Temperature 2 Calibration Error The system is unable to calibrate the Patient Temperature 2 channel within ± 1.0 °C when in Manual Control mode. Patient Temperature 2 channel is made inactive. Water Temperature High The primary outlet water temperature is above 44°C (111.2 °F).
- Page 14 A S 5 0 0 0 S E R V I C E M A N U A L Non-Recoverable System Error Unable to enable pump power (Monitor processor). Non-Recoverable System Error Unable to disable pump power (Control processor). Non-Recoverable System Error Unable to disable pump power (Monitor processor).
- Page 15 E N G L I S H Esophageal Probe Recommended Control Strategy 3 has been chosen which allows the Patient Target tempera- ture to be set between 32.0 °C and 32.9 °C (89.6 °F to 91.2 °F). For patient target temperatures between 32ºC to 32.9ºC (89.6ºF to 91.2ºF) an esophageal temperature probe should be used.
-
Page 16: Appendix A - Arctic Sun 5000 Specifications
A S 5 0 0 0 S E R V I C E M A N U A L Appendix A - Arctic Sun 5000 Specifications Parameter Normothermia: Control Patient Therapy Modes Hypothermia: Cool Patient, Rewarm Patient Heater Capacity 2500 BTU/hr / 750 Watts Circulating Fluid Distilled or Sterile Water Reservoir Capacity... -
Page 17: Appendix B - Spare Parts And Accessories
E N G L I S H Appendix B - Spare Parts and Accessories Cables and Accessories Spare Parts Chiller,100-120V 403073-00 Cleaning Solution (4 bottles) 739-05 Chiller, 200-230V 403073-01 Calibration Test Unit (CTU) 100-120V 741-00 Heater,100-120V 403074-00 Calibration Test Unit (CTU) 100V Japan 741-10 Heater, 200-230V 403074-01... -
Page 18: Appendix C - Temperature Cables
A S 5 0 0 0 S E R V I C E M A N U A L Appendix C - Temperature Cables Temperature In Cables Temperature Out Cables... -
Page 19: Appendix D - Shipping
Appendix D - Shipping Due to the size and weight of the Arctic Sun Model 5000, it should be shipped on a pallet using Medivance-provided packaging materials. If the original packaging is not available, a shipping kit may be ordered from Medivance. - Page 20 USA Headquarters: Medivance, Inc. Patent #6,197, 045 Medivance, Arctic Sun and ArcticGel Pads 321 South Taylor Avenue, Suite 200 are Trademarks of Medivance, Incorporated. Louisville, Colorado 80027 USA Federal Law (USA) restricts this device to Phone: 303 926 1917 sale by or on the order of a physician.
