Hubbell wiSTAR WIS-IDM Installation Manual

0-10v dimming relay module

Advertisement

Quick Links

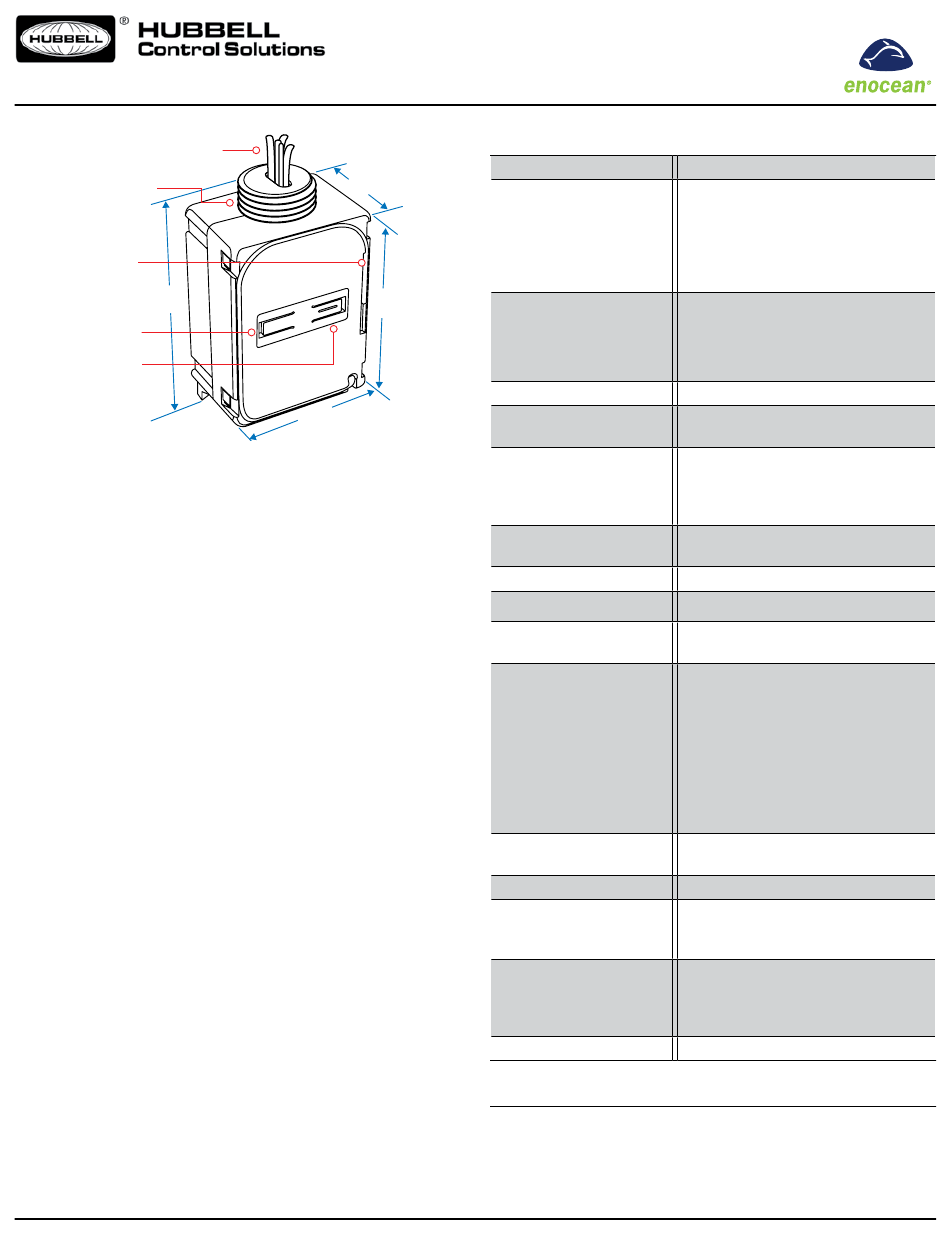

Wires: Black, White,
Red, Grey, Purple
Threaded connector
and lock nut
Orange Antenna
(insulated end)
2.78"
73mm
LRN (O) button
DIM (I) button
Package Contents
0-10V Relay Module

Product Description

The LED relay zone controller uses wireless technology to com-
municate with other self-powered EnOcean based products and
provides an amazingly simple solution for dimming control of
LED lighting.
The compact size enables flexible installation inside of or next
to electrical boxes and fixtures so it can be easily wired out of
sight using standard wiring practices.
Simply link the module to an EnOcean-based motion sensor,
light level sensor or rocker switch and experience levels of
efficiency and convenience that can only be achieved through
wireless controls.
It is also possible to link TWR-D10 to a central controller or via a
gateway to building automation systems like BACnet.
Features Include:
Enables wireless dimming of a single fixture or a zone of
multiple daisy chained LED fixtures (e.g. 20 each 30W or
10 each 60W).
Supports California Title 24 daylight harvesting scenarios,
occupancy control and manual dimming with input from
self-powered wireless switches and sensors. Implements
load shedding initiated by separate Demand Response
controllers
Installs inside or mounts to electrical box using threaded
connector
Supports wireless remote commissioning to link devices
and set parameters
© 2016 Hubbell Control Solutions • www.hubbell-automation.com
1.1"
28mm
2.24"
57mm
1.65"
42mm
Tools Required
Screwdriver
Wire nuts
wiSTAR™ Installation Guide:
0-10V Dimming Relay Module
WIS-IDM

Specifications

Power Supply
Maximum Load
0-10V output
Power Consumption
Surge Protection
Inputs/Outputs
Configuration Interface
RF Standard
Transmission Range
EnOcean Equipment
Profile
Interoperable Products /
EEPs (EnOcean
Equipment Profiles)
Dimensions
Weight
Mounting
Environment
Agency Compliance

1) Planning

Take a moment to plan for the module's successful operation
and optimal communication with other system components.
Always use a qualified installer
Install in an appropriate location
Technology From:
120V - 277V VAC, 60 Hz
General Purpose: 16A @
120/277VAC
Resistive: 16A @ 120/277VAC
Tungsten: 960W @ 120VAC
Ballast: 600W @ 120VAC
Tolerances +3%/-4% (1-10V range)
Current sinking 35mA*, sourcing 4mA
* For high sinking current and dim values
below 10%, the output voltage may exceed the
selected output value and reach 1V max.
1.1W full load, 500mW quiescent
3kV line to line, exceeding
IEC61000-4-5 installation class 4
• Flying-lead style wires
• 2 power input wires
• 1 switched output wire
• 2 output wires for 0-10V control
2 Buttons, 1 LED for device
configuration & manual control
EnOcean 902 MHz
80 ft. (25 m)
D2-40-00 for remote commissioning
with Navigan™
Rocker Pad Switch (F6-02-02)
Occupancy Sensor (A5-07-01)
Occupancy Sensor (A5-07-02)
Occupancy Sensor (A5-07-03)
Light Level Sensor (A5-06-02)
Light Level Sensor (A6-06-03)
Central Controller (A5-38-08)
Demand Response (A5-37-01)
2.78" H x 1.65" W x 1.1" D
(73mm x 42mm x 28mm)
3.2oz. (90g)
• Install inside standard electrical box
• Connect to electrical boxes and
fixtures using threaded nipple
• Indoor use only
• 32° to 104° F (0° to 60° C)
• 20% to 85% relative humidity
(non-condensing)
ETL, FCC, IC, UL2043 Plenum Rated
