IQAir® Perfect 16
MERV16 Micro-Particle Filtration System
Perfect 16
Installation Manual
ID-Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Perfect 16 ID-Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for IQAir Perfect 16 ID-Series

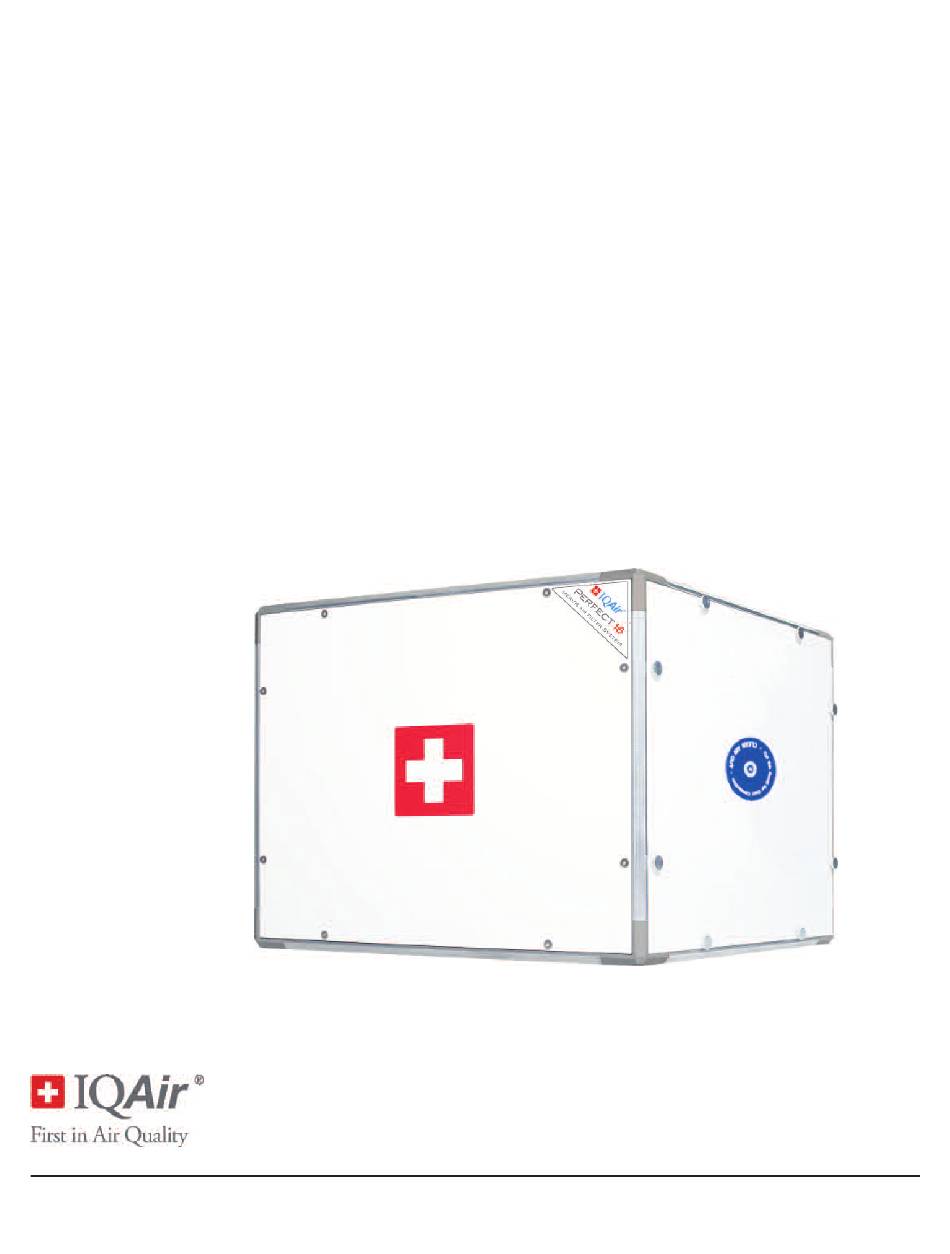

  • Page 1 Perfect 16 Installation Manual IQAir® Perfect 16 ID-Series ™ MERV16 Micro-Particle Filtration System...
  • Page 2: Product Data

    Product Data High-Performance Medical-Grade Residential/Commercial Air Filtration System Application The Perfect 16 ID Series is a V-bank filter system that connects to the return air duct or supply air duct of a forced air system. This Residential / Commercial Air Filtration System has been designed to provide the highest possible air cleaning rate at the lowest possible pressure drop for residential and commercial forced air systems.
  • Page 3: Performance Data

    Performance Data Usage vs. Resistance Average home based on 50% duty cycle ID-2225 at 1200 cfm ID-2530 at 2000 cfm Filter Usage in H in H 0.18 0.22 3 months 0.18 0.22 6 months 0.19 0.23 9 months 0.20 0.24 12 months 0.21 0.26...
  • Page 4: Residential Installation

    202 11 30 03 (Filter Set, 4 count) Residential Installation The Perfect 16 ID-Series can be suspended from exposed ceiling joists or the ceiling surface. Alternatively, it can be floor- mounted (see page 5 for installation options). 1. Choose a location between the main return duct and the furnace, which is readily accessible for checking and replacing the filter.
  • Page 5 Residential Installation Examples Up-Flow Furnace Up-Flow Furnace (5 ton application) Filter system is installed vertically and return air enters Filter system is installed vertically and return air enters the furnace side inlet (up to 4 ton application). the furnace side inlet (5 ton application). Up-Flow Furnace Down-Flow Furnace Filter system is installed horizontally beneath the furnace.
  • Page 6: Commercial Installation

    202 11 30 03 (Filter Set, 4 count) Commerciall Installation The Perfect 16 ID-Series can be suspended from exposed ceiling joists or the ceiling surface. Alternatively, it can be floor- mounted. 1. Choose a location between the air handler and the supply registers, which is readily accessible for checking and replacing the filter.
  • Page 7 Commercial Installation Examples Supply Duct The Perfect 16 can be installed on supply ducts, provided the airflow of the duct is 2000 cfm or less. Balance volume dampers and/or registers as necessary. Supply Duct Branch The Perfect 16 can be installed on supply duct branches, provided the airflow to the branch is 2000 cfm or less.
  • Page 8 Cutting Openings into Panels 1. Remove the panel with sticker “please cut here for duct 2. Adjust the cutting tool to the right position and fix it in the connection”from the Perfect 16 system. Detach the insulation from center hole of the panel for any round opening. the panel.
  • Page 9 Cutting Openings into Panels 9. Seal the gap between the collar and the panel and wait till it has 10. Put the insulation to the inner side of the panel and fix the dried. insulation to the collar with a duct tape. 11.
  • Page 10 Installing the Perfect 16 1. When positioning the unit, ensure that “Dirty Air In” is your air 2a. To attach the Perfect 16 directly to a furnace, take out all filters inlet. For duct connection, follow local installation codes. and use sheet metal screws to tap through square connection panel.
  • Page 11: Filter Replacement

    Filter Replacement 1. Access to replace filters is gained from the side panel with the 2. Remove all eight finger screws. finger screws attached to it. 3. Remove access panel. 4. Remove filters starting from the top. 5. Insert new filters starting from the bottom. 6.
  • Page 12 IQAir Dealer/Installer if this appliance or any part thereof (with the exception of filters) is proved to be defective by reason only of faulty workmanship or materials, IQAir North America, Inc. will at their option repair or replace the faulty appliance or part free of charge. This warranty is for parts and does not include labor.

This manual is also suitable for:

Perfect 16 id-2225Perfect 16 id-2530Id-2530 perfect 16
