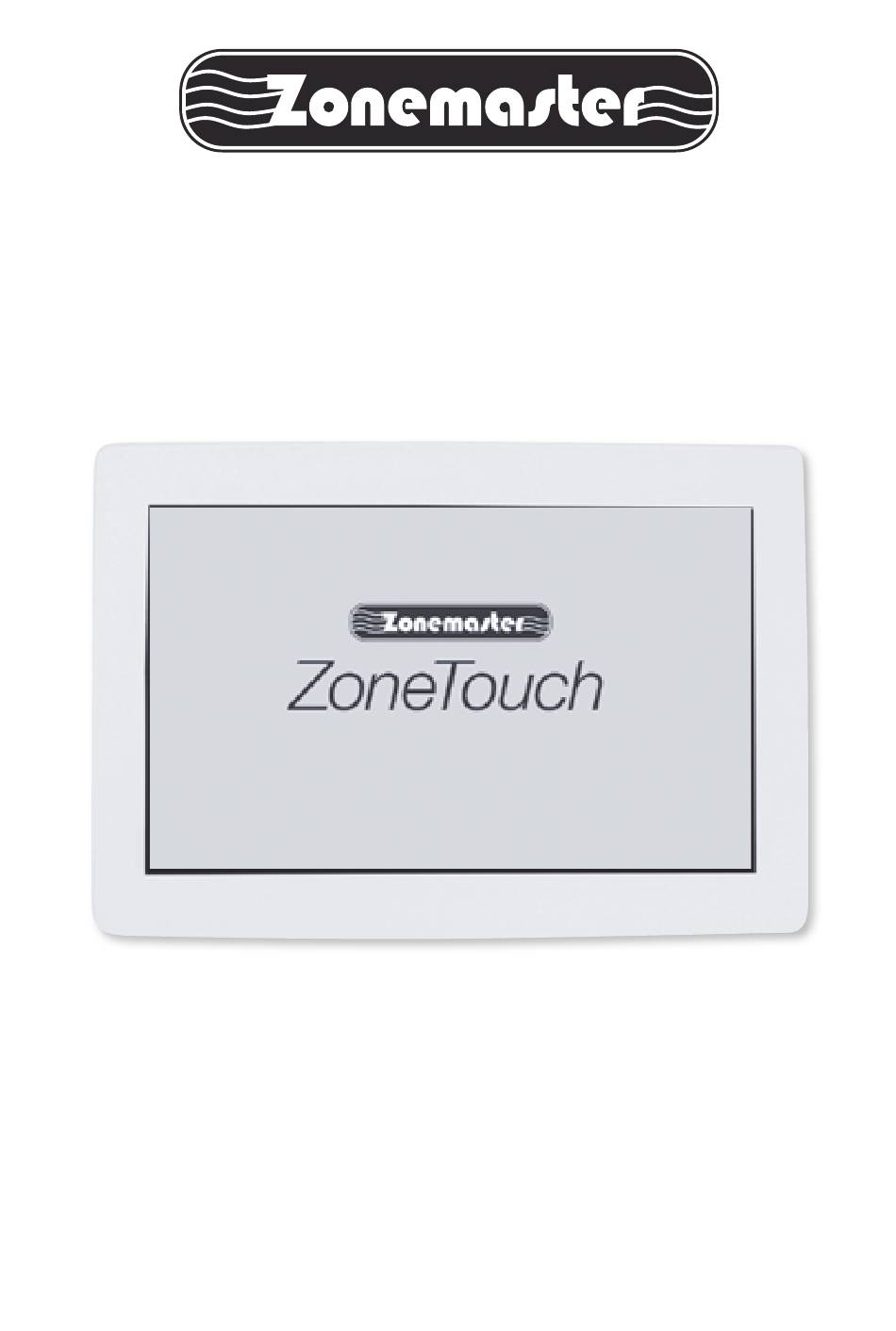

- Page 1 ZoneTouch V2 Zone Control System User Manual www.polyaire.com.au ©2014 Polyaire Pty Ltd...
- Page 2 ZONEMASTER ZONETOUCH V2 ZONE CONTROL SYSTEM - User Manual...
-
Page 3: Table Of Contents
Liability Please read the instructions before installing this Zonemaster Zoning Control System. Polyaire Pty Ltd does not accept any responsibility for loss or damage that may occur as a result of the incorrect installation of this Zonemaster Control System. ZONEMASTER ZONETOUCH V2 ZONE CONTROL SYSTEM - User Manual... -
Page 4: Features
1) Features • User friendly large touch screen interface • Intuitive user interface • Control airflow to individual zones and groups • Colour LCD for clearer display • Personalized system settings and labelling • Wall mounted with up to two touch screens available in a system • 5-1-1 Programmable On/Off time programs • One selectable turbo group to cool/heat a particular area quicker • Half year, One year and Two year service reminders to call technician for cleaning and servicing AC system • All zones automatically resume their original on/off state once power is restored after power outage. A zone is the area where air supply is controlled by one motorized damper A group is a few zones grouped together which have the group name and are controlled (turning on and off, or adjusting opening percentage) at the same time. A group will have at least one zone and no more than four zones. -
Page 5: Wall Controller Layout (Touch Screen)
2) Wall Controller Layout (Touch Screen) The home screen of the system will normally display groups’ status, dampers’ open percentage with adjusting buttons, date, time, room temperature, touch tone status and ZoneTouch logo as shown in Figure 1. Home Screen (Figure 1) NOTE: • The touch screen will go to the sleep mode after 90 seconds of inactivity. In sleep mode, the screen is blank. Touching any area of the screen will activate the system. -
Page 6: Manual Group Control
3) Manual Group control 3.1 Group On/Off/Turbo a) On the home screen, touch a group button (Figure 2) to change the on/off group status and the dampers of the group will open or close accordingly. Figure 2 b) The group status can be set to ‘TURBO’ active when the group is specified as a turbo group (refer to 5.3) and the grey turbo indicator will turn blue to indicate the TURBO function is active. Figure 3 shows the group status sequence alternated by touching the group button. Figure 3 c) Up to 6 group buttons are shown in one screen and touch < or > to bring up previous or next page. ZONEMASTER ZONETOUCH V2 ZONE CONTROL SYSTEM - User Manual... -
Page 7: Adjusting Airflow For A Group
NOTE: A group can have up to a maximum of 4 zones. Your installer would have already set up your zones and groups. 3.2 Adjusting airflow for a group • The damper opening percentage for every group can be adjusted to control the amount of airflow at every outlet between 10% and 100% of the balanced value (setup by Installer) at 10% increments. • Touch buttons on the home screen to increase or decrease the percentage opening for the corresponding group. -
Page 8: Set Program
Touch the button on the home screen to enter ‘Programming’ screen (Figure 4). Set Program Up to four programs can be created. Figure 4. Touching button will go back to the home screen from programming setting pages. a) Touch Program buttons (e.g. ) on ‘programming’ screen (Figure 4) to enter the screen (Figure 5) to select scenarios and adjust the event times. Figure 5 b) Touch a day option radio button to select Monday-Friday, Saturday or Sunday program to modify. Touch the time switch radio button on the right to enable/disable ON/OFF time. c) Touch the hour, minute or AM/PM field on the screen to highlight it, and then the buttons will appear on the screen (Figure 6). -
Page 9: Select Program For A Group
Select Program for a Group Enter the ‘Assignment’ screen (Figure 7) by touching programming screen (Figure 4). Assignment screen shows the list of the current program of each group. Touching button will go back to the home screen from Assignment Figure 7. page. Touch the program field of a group to show all program options (Figure 8). Touching a program option will assign the program to the group (Figure 9). Each group can be assigned with one program from program1 to program4 (‘P1’ to ‘P4’), and the group will not have a program if ‘No’ is selected. If a program has been assigned to a group, Figure 8. -
Page 10: User Settings
5) User Settings a) Touch on the home screen (Figure 1) enter “Settings” screen (Figure 11) b) Touch to enter ‘user settings’ screen (Figure 12) In User Setting, you can set up date and time, owner’s name, Turbo group, Figure 11. temperature display and touch tone. Touching button will go back to the home screen from User setting pages. Figure 12. Time/Date setup a) Touch on the ‘User Settings’ screen (Figure 12) to enter the time/date setup screen (Figure 13). -
Page 11: Owner's Name
Owner’s Name The maximum length of the name is 16 letters. Go to ‘User Settings’ screen (Figure 12). Touch ‘Owners Name’ to change the owner’s name by using the keyboard shown on the screen(Figure 15). Touch to switch between lower case and upper case and touch to confirm the name or Figure 15. touch to cancel the change. Turbo Group Touch ‘Turbo Group’ to specify a group as a Turbo Group. Turbo function will give the selected group a full-opening while all other groups’ (dampers) opening positions are reduced by 50% of their open percentage value. This will bring a large volume of extra air into the designated area and cool or heat the area quicker. Typically this may be a family room, dining room or home theatre (or in commercial application a meeting, lunch or board room). Touch the ‘Turbo Group’ field on the ‘User Settings’ screen (Figure 12), to display the list of available group name (Figure 16). -
Page 12: Temperature Display
Temperature Display Touch the radio button of to enable or disable the temperature display on the touch screen. Below images show the enabled status (Figure 17) and disabled status (Figure 18) of temperature display. Figure 17. Figure 18. Touch Tone The touch tone feature allows to either enable or disable the tone when the screen is touched. It is disabled as default and will display a mute logo on the screen. Touch the radio button of to switch the touch tone on or off. ZONEMASTER ZONETOUCH V2 ZONE CONTROL SYSTEM - User Manual... -
Page 13: Information Sheets
6) Information Sheets These should be filled out by the installer Table 1: System Configuration Bypass Damper Supply Air Sensor Total Groups Installed Installed Yes/No Yes/No Table 2: Grouping Group Group Name Zones Included Turbo Function ZONEMASTER ZONETOUCH V2 ZONE CONTROL SYSTEM - User Manual... - Page 14 Table 3: Balance Zone Balance Percentage Zone 1 Zone 2 Zone 3 Zone 4 Zone 5 Zone 6 Zone 7 Zone 8 Zone 9 Zone A Zone B Zone C Zone D Zone E Zone F Zone G Table 4: Installer Details Installer Contact Number Date...
- Page 15 Table 5: Programs PROGRAM 1 On time 1 Off time 1 On time 2 Off time 2 Monday-Friday Saturday Sunday Groups PROGRAM 2 On time 1 Off time 1 On time 2 Off time 2 Monday-Friday Saturday Sunday Groups PROGRAM 3 On time 1 Off time 1 On time 2...
-
Page 16: Troubleshooting Guide
7) Troubleshooting Guide PROBLEM SUGGESTED ACTION Dampers have no • Check if the ‘Safety is Activated’ error is displayed. High limit (Heating) response when turned on or Low limit (Cooling) may have reached. Check the air-conditioner to or off see if it is operating normally. ZoneTouch V2 system will resume to operational after the supply air temperature is within safety range. • *Check if Supply air sensor is plugged in the mainboard and High Limit & Low Limit is enabled. If the sensor is not plugged in, plug the sensor and the system will be operational after a minute. If the sensor is not required, disable High limit and Low limit from touchpad and system will return to operational in a minute. • *Check if LEDs on the main module light up for relevant zones when the zone dampers are being turned On/Off. If Green/Red LEDs are not activated for the respective zone, the main module may be faulty, replace it. • *Check if the cable from touchpad to the main control module is faulty. If it is a faulty cable, then the cable might have to be replaced. -
Page 17: Specifications
8) Specifications Electrical Requirements Power supply: 24V AC ±10% Line frequency: 50 Hz Components Power Consumption Touchpad: 0.5 VA Main Control Module: 5 VA Environmental Requirements Operating temperature: 0°C to 60°C Altitude: 0 to 2000 meters Operating relative humidity: 10% to 80% Avoid static electricity hazards Avoid electromagnetic radiation sources Avoid dust contamination Avoid highly corrosive environments Zone Output Output voltage: 24VAC, 50Hz Current: 200mA (1 damper motor) Transformer Input Voltage: 240V AC, 50Hz Output Voltage: 24VAC, 50Hz Wattage: Supply Air Sensor: NTC type, 10 kΩ at 25°C Battery: 3.6V, 3xAAAM... - Page 18 ZONEMASTER ZONETOUCH V2 ZONE CONTROL SYSTEM - User Manual...
- Page 19 ZONEMASTER ZONETOUCH V2 ZONE CONTROL SYSTEM - User Manual...
- Page 20 POLYAIRE PTY LTD 11-13 WHITE ROAD GEPPS CROSS SOUTH AUSTRALIA, 5094 TEL: (08) 8349 8466 FAX: (08) 8349 8446 www.polyaire.com.au ZMZT2_USER_V1.0...
