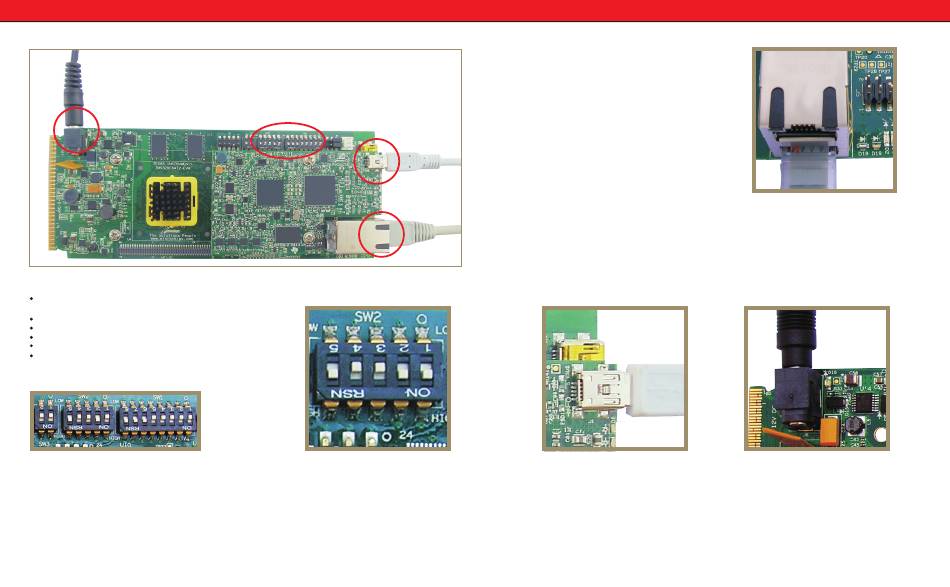

C6472 Evaluation Module
4
The TMDSEVM6472LE (Evaluation Module) kit includes:
TMS320C6472 Evaluation Module with integrated
XDS560v2 Emulator
Power supply and power cord
USB Cable for JTAG emulation
Ethernet cable
3-Pin to 9-Pin DTE UART cable
Software (DVD) and documentation
1
Ensure EVM configuration
switches are set as shown to run
Power On Self Test (POST).
©2011 Texas Instruments Incorporated
1
2
3
1
To run Out-Of-Box
a
demo through
NAND, configure
the switches as
shown above.
eInfochips Literature: EVM6472E_QSG_1.0
1a
The TMDSEVM6472LE is also
shipped with an Out-Of-Box Demo
application flashed into NAND. This is a
network based application which
starts an HTTP server and a TELNET
server with the static IP address
192.168.2.100. Be sure the first switch in
the dual-switch SW3 is off.
In order to connect to the board, the
test PC should be configured with
a compatible static IP address such
as 192.168.2.101.
Once the User LEDs blink and turn OFF
(indicating successful NAND boot) the
user can access the following URL
through a browser to view the Out-Of-
Box demo: http://192.168.2.100
2
Connect the Mini-USB
cable to J1 plug on
XDS560v2 Emulator for high
speed emulation, as shown
in figure. (For use with CCS
debugger only)
©2011 Texas Instruments Incorporated
3
Connect Ethernet switch /
router / PC to the lower
Gigabit Ethernet port (J3) of
TMDSEVM6472LE board using
an Ethernet cable to access
EMAC0.
4
Connect the 12V DC
power adapter
(supplied with the kit) to
power jack (J6).
