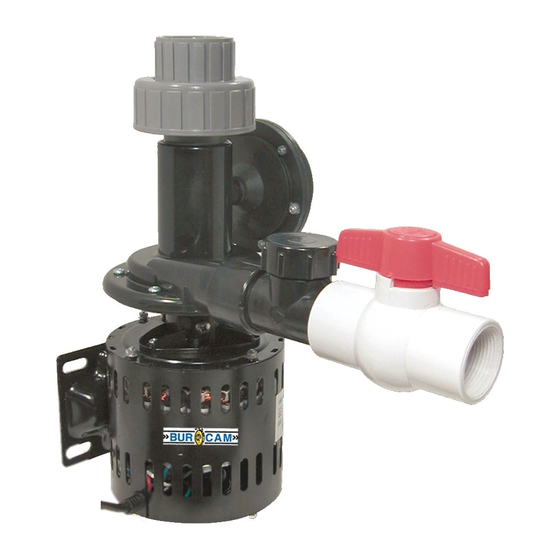

Laundry tub pump

Advertisement

2190 Dagenais West
LAVAL (QUEBEC)
CANADA
H7L 5X9
Your pump has been carefully packaged at the
factory to prevent damage during shipping.
However, occasional damage may occur due
to rough handling. Carefully inspect your
pump for damages that could cause failures.
Report any damage to your carrier or your
point of purchase.
© 2015 BUR-CAM Printed in Canada 300284
W W W. B U R C A M . C O M
TEL: 514.337.4415
FAX: 514.337.4029
info@burcam.com
INSTALLATION
INSTRUCTIONS
MODEL
300514W
LAUNDRY TUB
Please read these
carefully. Failure
to comply to
instructions and
may void the
PUMP
instructions
designed
operation of
this system,
warranty.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 300514W and is the answer not in the manual?

Questions and answers

Summary of Contents for Burcam 300514W

  • Page 1 W W W. B U R C A M . C O M MODEL 2190 Dagenais West TEL: 514.337.4415 LAVAL (QUEBEC) FAX: 514.337.4029 CANADA 300514W H7L 5X9 info@burcam.com Your pump has been carefully packaged at the LAUNDRY TUB factory to prevent damage during shipping. PUMP...
  • Page 2: Safety Instructions

    SAFETY INSTRUCTIONS: This fine pump that you have just purchased is designed from the latest in material and workmanship. Before installation and operation, we recommend the following procedures: CHECK WITH YOUR LOCAL ELECTRICAL AND PLUMBING CODES TO ENSURE YOU COMPLY WITH THE REGULATIONS. THESE CODES HAVE BEEN DESIGNED WITH YOUR SAFETY IN MIND.
  • Page 3 APPLICATIONS FEATURES  This pump, equipped with an automatic switch, is  High performance noryl impeller. designed for a permanent installation to handle normal waste water from domestic washing  Automatic switch who start motor when 1 PSI machines, bar sinks located in basement play is applied to pump inlet.
  • Page 4 Connect the 3 prong plug of the switch in a receptacle. Insert the motor 3 prong plug into STEP 6 female receptacle on exposed piggy-back of switch plug. Test pump operation by filling laundry tub with water. Check all plumbing connections for STEP 7 leaks and correct where necessary.
  • Page 5: Repair Parts

    Electric motor complete 9 310534 Screws (3) 10 52279 Ball valve 11 310533 Ball check valve 12 310532 Diaphragm switch 13 52261 Union 300514W 2005 Repair parts may be ordered from your authorized point of sale or from BUR-CAM PUMPS...
  • Page 6 TROUBLE SHOOTING GUIDE CHECKLIST NEVER MAKE ADJUSTMENTS TO ANY ELECTRICAL APPLIANCE OR PRODUCT WITH THE POWER CONNECTED. DON’T JUST UNSCREW THE FUSE OR TRIP THE BREAKER, REMOVE THE POWER FROM THE RECEPTACLE. TROUBLE PROBABLE CAUSE ACTION Turn switch to on position Switch is off position Motor does not Replace...
