Arcam rDac Service Manual
Hide thumbs Also See for rDac:

Advertisement

Quick Links

All manuals and user guides at all-guides.com
Arcam rDac Service manual















                                                                                                                                                                              Andy Moore ‐ issue 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the rDac and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Arcam rDac

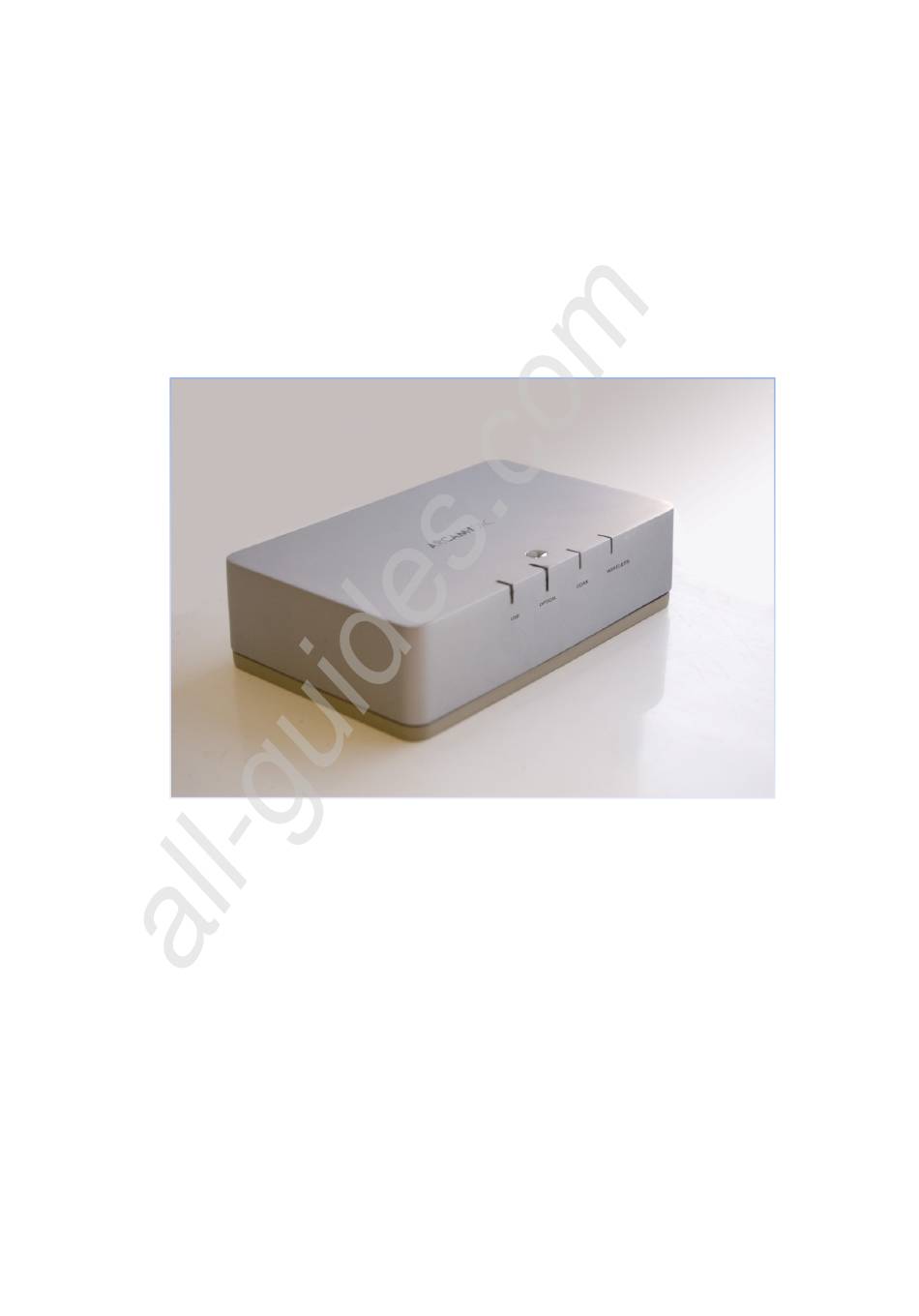

  • Page 1 All manuals and user guides at all-guides.com Arcam rDac Service manual                                                                                                                                                                                                                                                                                                                                                                       Andy Moore ‐ issue 1 ...
  • Page 2 All manuals and user guides at all-guides.com Overview  The rDac is a D to A convertor featuring Optical / Coaxial and USB inputs and utilizes a simple  push button to cycle between the input option – when locked on to data the LED in front of the  relevant source will light Green and audio should be present if the LED is RED in color the input  is not locked onto relevant data.  Compatible formats include.  All PCM 2 channel  Input / bit depth  32kHz  44.1kHz  48kHz 88.2kHz  96kHz  176kHz  192kHz USB 16 & 24 Bit  Yes  Yes  Yes  Yes  Yes  No  No  Optical 16 & 24 Bit  Yes  Yes  No  No  No  No  No  Coaxial 16 & 24 Bit  Yes ...
  • Page 3 All manuals and user guides at all-guides.com Main micro   circuit page 2  The main micro at location IC107 (on the diagram this is split into two area these are micro  power and config + Micro I/O) we will deal with Micro power and config 1 .  Micro power and config  Two separate power supplies are required by the AT91SAM these are taken from 3V3 and 1V8  for the processor core – the micro is programmed with bespoke Arcam code the oscillator for  the micro is at X101 and runs at 4MHz the TDI TDO TCK TMS ERASE NRST pins are for  development Debug use and the connecter at location CON103 is not fitted to production items   Micro I/O   Pin descriptions   Pin name   Description  SPDIF INT  Interrupt flag from the SPDIF receiver   Source   To source select TACT switch  Mute RLY  Control of mute relay via TR100  DAC MUTE  DAC MUTE signal to Pin 25 of Wolfson DAC at location IC301  ENABLE KLEER  To MUX at location IC205A  ENABLE SPDIF  To MUX at location IC202A  SERIAL UC to KLEER  Serial control to KLEER wireless option   SERIAL KLEER to UC  Serial data from KLEER to UC   SCL  To EEprom at location IC108 / DAC at location IC301 / USB receiver at  IC103 ...
  • Page 4 All manuals and user guides at all-guides.com Input Stages and switching   Circuit pages 2 and 3  The inputs are split into two groups with the Wolfson SPDIF receiver at location IC201 dealing  with Optical and Coaxial selection whilst the  MUX at locations IC202A IC202B and IC205A  switch between SPDIF (opt or coax) and USB or KLEER under control from main micro.  SPDIF input  The Wolfson WM8805 SPDIF receiver supplies data in a format of Data , LRCLK, BCLK and MLCK,  the output of IC201 runs directly to the DAC via the MUX at location IC202A with exception of  the MCLK this take a path thru IC203 as part of the MCLK MUX between USB / KLEER and SPDIF  MCLK’s.  USB input  The USB data arrives at CON100 before traveling to the USB streaming control chip at location  IC103 via the ESD protection Chip at location IC101 the chip is loaded with the DCS  asynchronous/isochronous input system from IC100 at boot up.  IC103 has it own MCLK source at location IC204 another WM8805 this time used as an adaptive  clock source the output is buffered by IC203C  The Data , LRCLK, BCLK are switched to the DAC via IC202B with the MCLK coming via IC203.  DAC and Audio Stages     circuit page 4  The Wolfson 8741 DAC can be found at location IC301 and takes its supplies from 3V3D and  5VDAC, data enters the chip on pins 1 – 5 and should be seen as below.    Pin loc  Signal type   Pin 1  LRCK    Pin 2   SDATA  Pin 3  BCK    Pin 5  ...
  • Page 5 All manuals and user guides at all-guides.com            ...
  • Page 6 ENABLE_USB* ENABLE_KLEER* ENABLE_KLEER* ENABLE_KLEER* DAC_MUTE DAC_MUTE DAC_MUTE /MUTE_RLY /MUTE_RLY /MUTE_RLY U_L198_CT4_PSU L198_CT4_PSU.SchDoc DRAWING TITLE rDAC Top Level Filename: L198_top_level.SchDoc 10_Exxx 14/09/10 EMC changes from Telnova ARCAM Notes: 10_E122 08/09/10 Change X200 to 12MHz A & R Cambridge Ltd. 10_E066 12/04/10...
  • Page 7 PART No. DESCRIPTION NOTES M20-972 DGND PCB100 L198PB Blank PCB rDAC IC100B +3V3 IC104B +3V3 IC108B +3V3 DRAWING TITLE rDAC USB & Micro C112 C114 C131 100N 100N 100N Filename: L198_CT1_Micro.SchDoc 10_E131 14/09/10 EMC changes from Telnova ARCAM Notes: 10_E122...
  • Page 8 +3V3 IC205B IC200B IC203E +3V3 IC202C +3V3 IC206B +3V3 IC205C C215 C211 C212 C213 DRAWING TITLE C214 rDAC SPDIF & Clocks 100N 100N 100N 100N Filename: L198_CT2_SPDIF.SchDoc 10_E131 14/09/10 EMC changes from Telnova ARCAM 74LVC244ADB 74HC125D 74LVC244ADB 74LVC244ADB DGND DGND...
  • Page 9 TR300 R334 FMMT497 /MUTE_RLY DGND DGND /MUTE_RLY P327 0W063 DGND DRAWING TITLE rDAC DAC and filter Filename: L198_CT3_DAC.SchDoc 10_E131 14/09/10 EMC changes from Telnova ARCAM Notes: 10_E122 08/09/10 Change X200 to 12MHz RLY300 changed to TQ through lead, correct D301 -5V connection.
  • Page 10 P419 P413 100U C430 C431 -5VA DGND DGND DGND 10uF 10uF DGND DGND DRAWING TITLE rDAC PSU Filename: L198_CT4_PSU.SchDoc 10_E131 14/09/10 EMC changes from Telnova ARCAM Notes: 10_E122 08/09/10 Change X200 to 12MHz A & R Cambridge Ltd. 10_E066 12/04/10...
  • Page 11 ALL DIMENSIONS IN TOLERANCES UNLESS 0.00± 0.10 CHECKED BY: OTHERWISE STATED 0.0 ± 0.20 MILLIMETERS UNLESS ANGULAR TOL. +2 DEGREES OTHERWISE STATED ORIGINAL SCALE 1:1 MATERIAL: FINISH: SHT 1 OF 3 PART NUMBER AND DRAWING NUMBER rDAC MAIN ASSEMBLY DRAWING TITLE BASE...
  • Page 12 TOLERANCES UNLESS 0.00± 0.10 CHECKED BY: OTHERWISE STATED 0.0 ± 0.20 MILLIMETERS UNLESS ANGULAR TOL. +2 DEGREES OTHERWISE STATED ORIGINAL SCALE 1:1 MATERIAL: FINISH: SHT 2 OF 3 PART NUMBER AND DRAWING NUMBER rDAC MAIN ASSEMBLY DRAWING TITLE MAIN PCB...
  • Page 13 ALL DIMENSIONS IN TOLERANCES UNLESS 0.00± 0.10 CHECKED BY: OTHERWISE STATED 0.0 ± 0.20 MILLIMETERS UNLESS ANGULAR TOL. +2 DEGREES OTHERWISE STATED ORIGINAL SCALE 1:1 MATERIAL: FINISH: SHT 3 OF 3 PART NUMBER AND DRAWING NUMBER rDAC MAIN ASSEMBLY DRAWING TITLE COVER...
  • Page 14 All manuals and user guides at all-guides.com           No part of this document may be reproduced of transmitted in any form or by any means, electronic or  mechanical, for any purpose without the express permission of A&R Cambridge ltd.  This manual is for the exclusive use of A&R Cambridge ltd, it’s approved distributors and affiliated  service agents, No part of this manual may be transferred to any other party without express permission  of A&R Cambridge ltd.  This manual has been generated with great care, it is intended for information only and no liability shall  be accepted for errors or changes to specification.          A&R Cambridge Ltd   Pembroke Avenue   Waterbeach  Cambridge   England  CB25 9QR   +44 (0)1223 203200  www.arcam.co.uk   ...
