Danfoss ECL Comfort 310 Installation Manual page 7
Application a390
Hide thumbs
Also See for ECL Comfort 310:
- Operating manual (171 pages) ,
- Installation manual (167 pages) ,
- Mounting manual (32 pages)
Advertisement

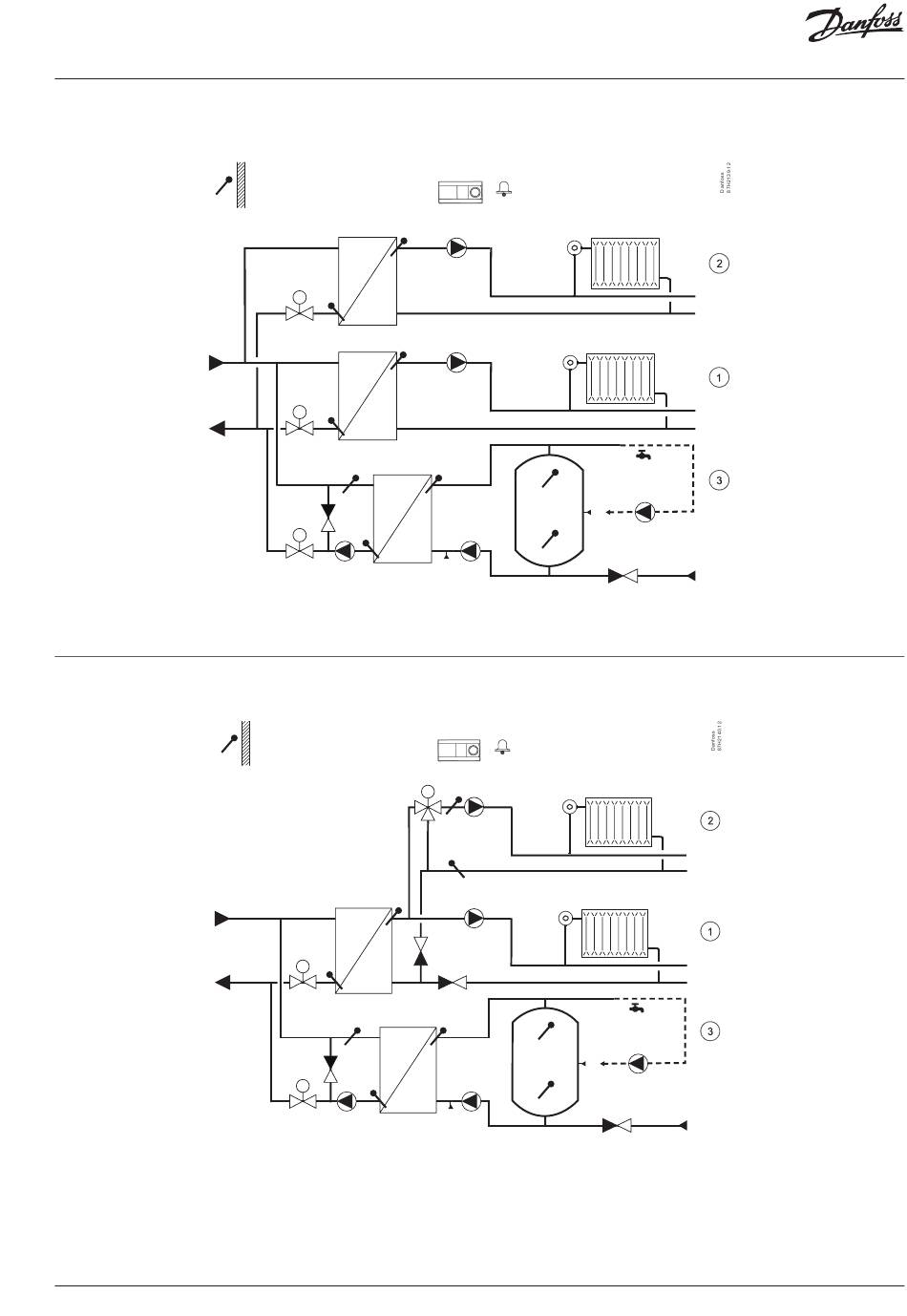

Installation Guide, ECL Comfort 310, A390
A390.12, ex. a:
S1
A390.12, ex. b:
S1
VI.JM.B4.00
ECL 310
S4
P5
M3
S2
S3
P2
M2
S5
S9
S7
M1
S10
B
P1
P4
M1, M2, M3 = 3-point / 0 - 10 V
ECL 310
M3
S4
S2
S3
M2
S5
S9
S7
M1
S10
B
P1
M1, M2, M3 = 3-point / 0 - 10 V
A1
S6
A
S8
A1
P5
P2
S6
A
P3
S8
P4
P3
© Danfoss | 2018.05 | 7
