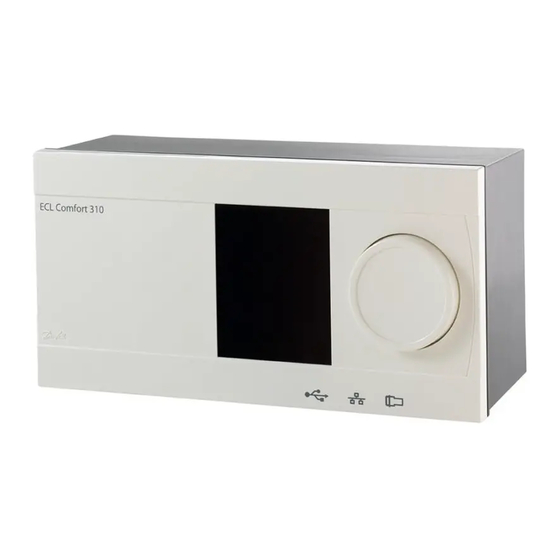

Installation Guide
ECL Comfort 310, A390
(code no. 087H3815, 087H3832)
A390.1, ex. a:
© Danfoss | 2018.05
P
P
P
P
M1, M2, M3 = 3-point
P
P
VI.JM.B4.00 | 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ECL Comfort 310 and is the answer not in the manual?

Questions and answers

Related Manuals for Danfoss ECL Comfort 310

Summary of Contents for Danfoss ECL Comfort 310

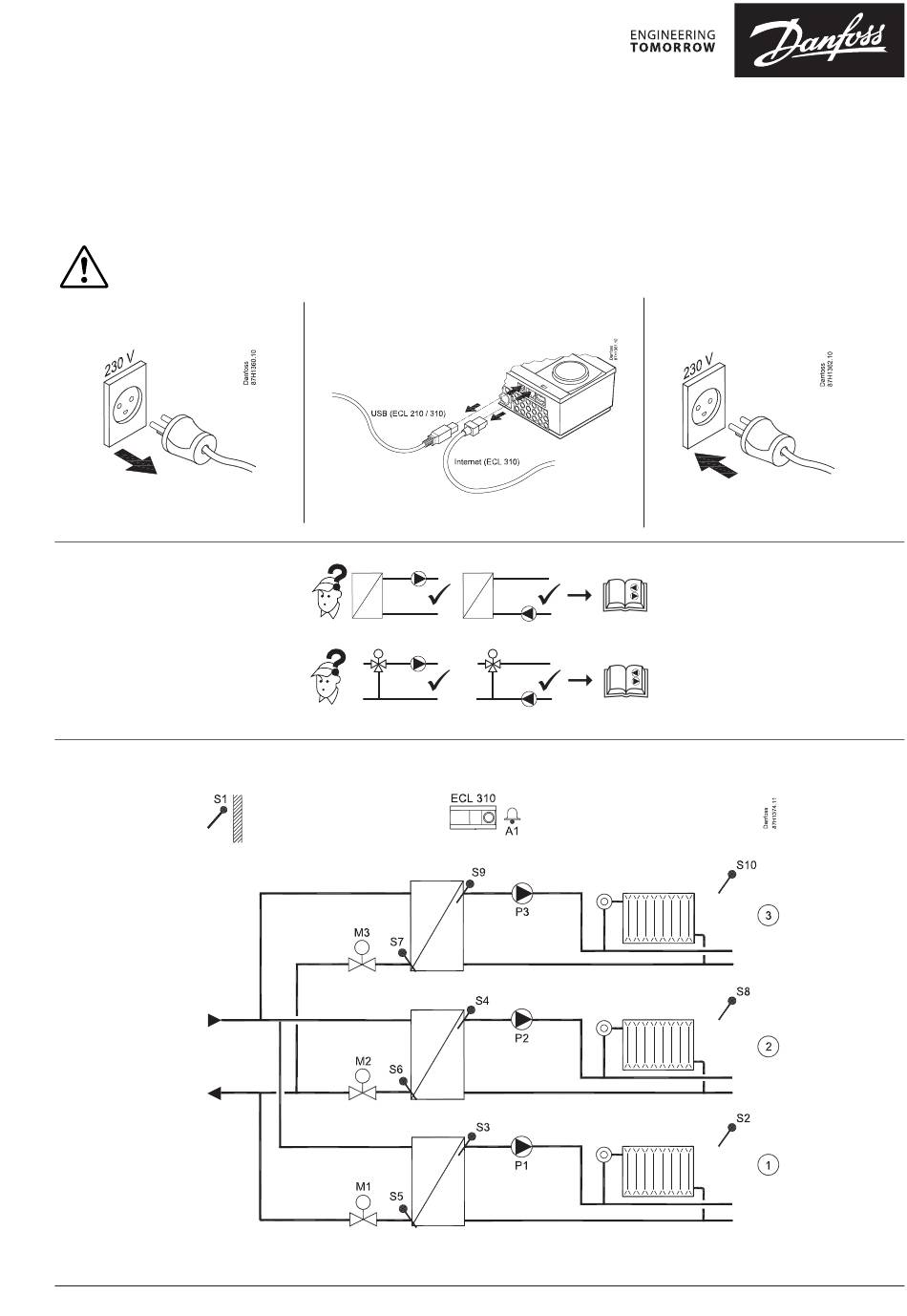

  • Page 1 Installation Guide ECL Comfort 310, A390 (code no. 087H3815, 087H3832) A390.1, ex. a: M1, M2, M3 = 3-point VI.JM.B4.00 | 1 © Danfoss | 2018.05...
  • Page 2 Installation Guide, ECL Comfort 310, A390 A390.1, ex. b: M1, M2, M3 = 3-point A390.1, ex. c: M1, M2, M3 = 3-point 2 | © Danfoss | 2018.05 VI.JM.B4.00...
  • Page 3 Installation Guide, ECL Comfort 310, A390 A390.2, ex. a: A (M1, M2, M3) = 0 - 10 V A390.3, ex. a: M1, M2, M3 = 3-point / 0 - 10 V VI.JM.B4.00 © Danfoss | 2018.05 | 3...
  • Page 4 Installation Guide, ECL Comfort 310, A390 A390.3, ex. b: M1, M2, M3 = 3-point / 0 - 10 V A390.11, ex. a: M1, M2, M3 = 3-point / 0 - 10 V 4 | © Danfoss | 2018.05 VI.JM.B4.00...
  • Page 5 Installation Guide, ECL Comfort 310, A390 A390.11, ex. b: M1, M2, M3 = 3-point / 0 - 10 V A390.11, ex. c: M1, M2, M3 = 3-point / 0 - 10 V VI.JM.B4.00 © Danfoss | 2018.05 | 5...
  • Page 6 Installation Guide, ECL Comfort 310, A390 A390.11, ex. d: M1, M2, M3 = 3-point / 0 - 10 V A390.11, ex. e: M1, M2, M3 = 3-point / 0 - 10 V 6 | © Danfoss | 2018.05 VI.JM.B4.00...
  • Page 7 Installation Guide, ECL Comfort 310, A390 A390.12, ex. a: ECL 310 M1, M2, M3 = 3-point / 0 - 10 V A390.12, ex. b: ECL 310 M1, M2, M3 = 3-point / 0 - 10 V VI.JM.B4.00 © Danfoss | 2018.05 | 7...
  • Page 8 Installation Guide, ECL Comfort 310, A390 A390.13, ex. a: M1, M2, M3 = 3-point / 0 - 10 V A390.13, ex. b: M1, M2, M3 = 3-point / 0 - 10 V 8 | © Danfoss | 2018.05 VI.JM.B4.00...
  • Page 9 Installation Guide, ECL Comfort 310, A390 ECL Comfort 310: 230 V a.c. 4 (2) A / 230 V a.c. 0,2 A / 230 V a.c. 230 V a.c., A390 (ECL 310) A390.1 ü ü ü A390.2 A390.3 ü ü ü...
  • Page 10 Installation Guide, ECL Comfort 310, A390 230 V a.c., A390 (ECL 310) Danfoss ABV Danfoss type ABV: A390.1 ü ü ü A390.2 A390.3 ü ü ü A390.11 ü ü ü A390.12 ü ü A390.13 ü ü A390, ECA 32 A390.1 A390.2...
  • Page 11 Installation Guide, ECL Comfort 310, A390 A390, ECA 32 0 - 10 V: A390.1 A390.2 ü ü ü A390.3 ü ü ü A390.11 ü ü ü A390.12 ü ü ü A390.13 ü ü ü VI.JM.B4.00 © Danfoss | 2018.05 | 11...
  • Page 12 Installation Guide, ECL Comfort 310, A390 230 V a.c. / 24 V a.c. safety thermostat 1-step closing ECL 210 / 310 ECL 210 / 310 ECL 210 / 310 ECL 210 / 310 12 | © Danfoss | 2018.05 VI.JM.B4.00...
  • Page 13 Installation Guide, ECL Comfort 310, A390 230 V a.c. / 24 V a.c. safety thermostat 2-step closing ECL 210 / 310 ECL 210 / 310 VI.JM.B4.00 © Danfoss | 2018.05 | 13...
  • Page 14 Installation Guide, ECL Comfort 310, A390 ECL Comfort 310: 24 V a.c. 4 (2) A / 24 V a.c. 1 A / 24 V a.c. 24 V a.c., A390 (ECL 310) A390.1 ü ü ü A390.2 A390.3 ü ü ü...
  • Page 15 Installation Guide, ECL Comfort 310, A390 24 V a.c., A390 (ECL 310) Danfoss ABV Danfoss type ABV: A390.1 ü ü ü A390.2 A390.3 ü ü ü A390.11 ü ü ü A390.12 ü ü A390.13 ü ü 24 V a.c., A390, ECA 32 A390.1...
  • Page 16 Installation Guide, ECL Comfort 310, A390 A390, ECA 32 0 - 10 V: A390.1 A390.2 ü ü ü A390.3 ü ü ü A390.11 ü ü ü A390.12 ü ü ü A390.13 ü ü ü 16 | © Danfoss | 2018.05...
  • Page 17 Installation Guide, ECL Comfort 310, A390 A390 (ECL 310) Pt 1000 (1000 Ω / 0 °C) ECL Comfort 210 / 296 / 310 ECL Comfort 210 / 296 / 310 230 V a.c. 230 V a.c. VI.JM.B4.00 © Danfoss | 2018.05 | 17...
  • Page 18 Installation Guide, ECL Comfort 310, A390 ECA 30 / 31 ECA 30 / 31 ECL 210 / 296 / 310 ESM-10 S.Gnd ECA 30 / 31 ESM-10 Master / slave 18 | © Danfoss | 2018.05 VI.JM.B4.00...
  • Page 19 Installation Guide, ECL Comfort 310, A390 Modbus ECL 210 / 296 / 310 M-bus ECL 296 / 310 M-bus ECL 296 / 310 METER METER S.Gnd VI.JM.B4.00 © Danfoss | 2018.05 | 19...
  • Page 20 Installation Guide, ECL Comfort 310, A390 Pt 1000 (IEC 751B, 1000 Ω / 0 °C) Ω °C Ω 1600 1500 1400 1000 1300 1039 1078 1117 1200 1155 1194 1100 1232 1271 1309 1000 1347 1385 1423 1461 1498 1535 1573 °C...
  • Page 21 Installation Guide, ECL Comfort 310, A390 ECA 30         VI.JM.B4.00 © Danfoss | 2018.05 | 21...
  • Page 22 Installation Guide, ECL Comfort 310, A390 22 | © Danfoss | 2018.05 VI.JM.B4.00...
  • Page 23 Installation Guide, ECL Comfort 310, A390 VI.JM.B4.00 © Danfoss | 2018.05 | 23...
  • Page 24 Installation Guide, ECL Comfort 310, A390 *087H9214*   ECL Comfort 310, A390: www.heating.danfoss.com *VIJMB400* VI.JM.B4.00 24 | © Danfoss | DHS-SMT/DK | 2018.05...
