Streaming Ip Setup; Reboot Device; Administration; Reset To Default - Data-Tronix DT-IPTV-QAM-ASI-4HC User Manual

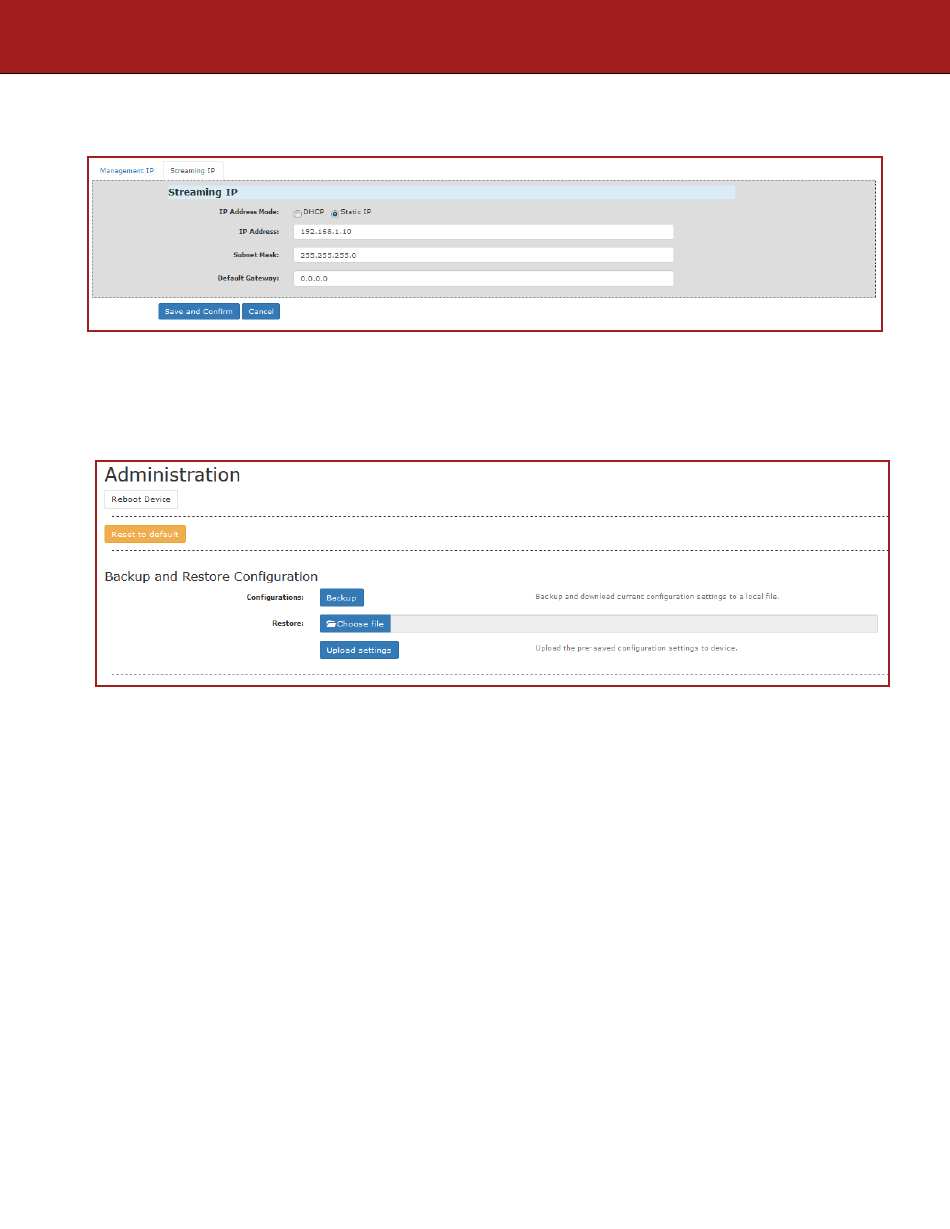

Streaming IP Setup:

Use the Streaming IP tab to modify the Streaming IP port of the device as required.
Save and Confirm: Once all parameters are set remember to Save and confirm all changes have been made.

Administration

Administration Setup Page of DT-IPTV-QAM-ASI-4HC

Reboot Device:

Use the Reboot command button to reboot the device.
Note: Any unsaved changes will be lost.

Reset to Default:

Use the Reset to Default button to reset all parameters to original factory settings.

Saving your configuration files

We highly recommend you save your configuration files. Simply select the "Backup" button and the
configuration files will be saved to your computer.

Backup:

We highly recommend saving your device's setting.
1. Select Administration.
2. Select Backup from the menu.
3. Locate and name file for future use.
DT-IPTV-QAM-ASI-4HC |
15
Manual V1.0 | 01152019
