Data-Tronix DT-IPTV-QAM-ASI-4HC User Manual page 13

Note: The DT-IPTV-QAM-ASI-4HC allows the integrator the ability to set the output channels independently of the other 3
output channels.

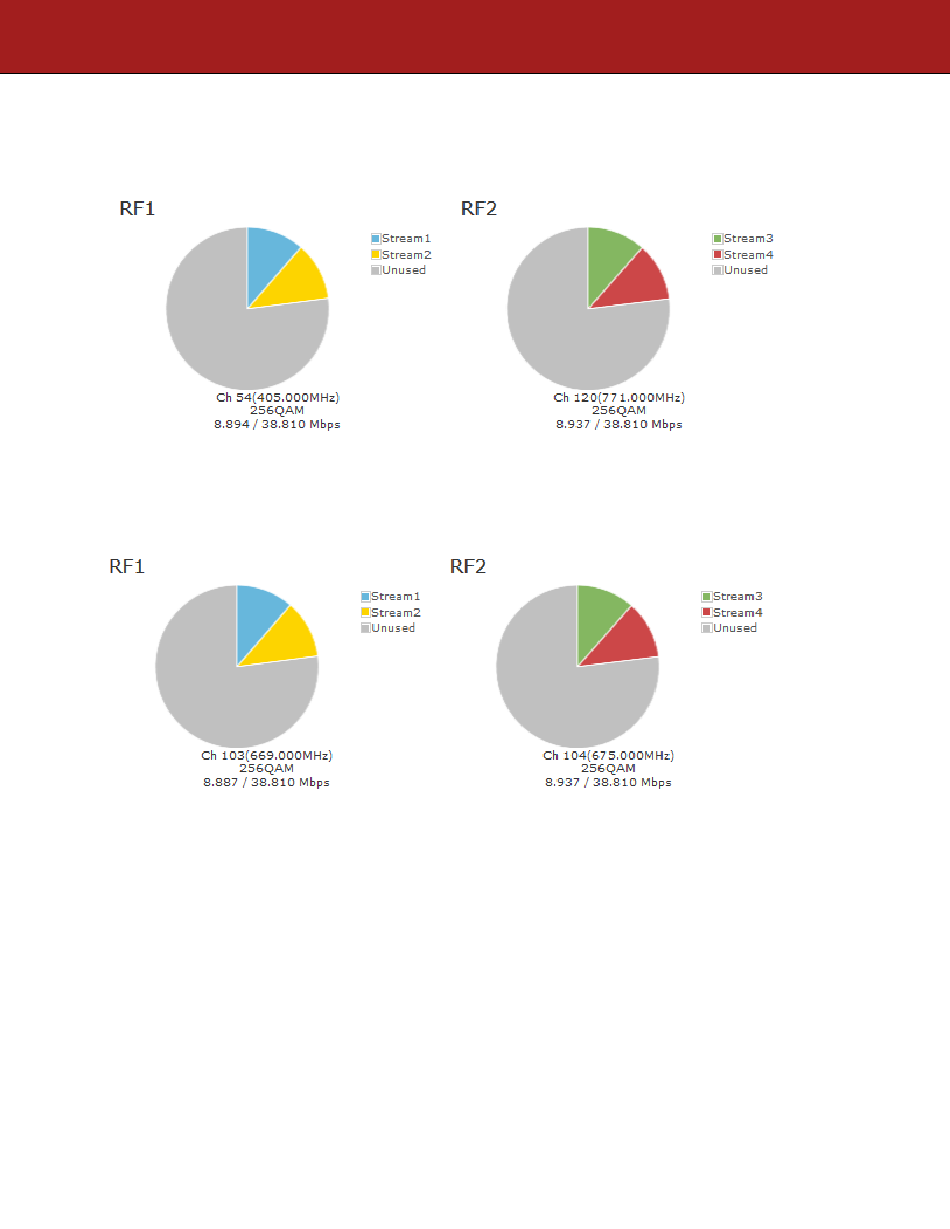

Example 1: Example 1 shows RF1- RF2 with a large frequency separation.
CH # 54
CH# 120
(405.000 MHz)
(771.000 MHz)
Example 2: Example 2 shows RF1- RF2 with a small frequency separation.
CH#103 CH# 104
(669.000 MHz) (675.000 MHz)
Note: If the RF is disabled, the frequency will not be occupied.
- If a stream is disabled, the stream will occupy the channel frequency even if not present in the RF diagram.
