- Page 1 User Guide CentrePoint Insight Watch Activity Monitor: CentrePoint Insight Watch | Revision: 0 | Released: 10/19/2018...
-
Page 2: Table Of Contents

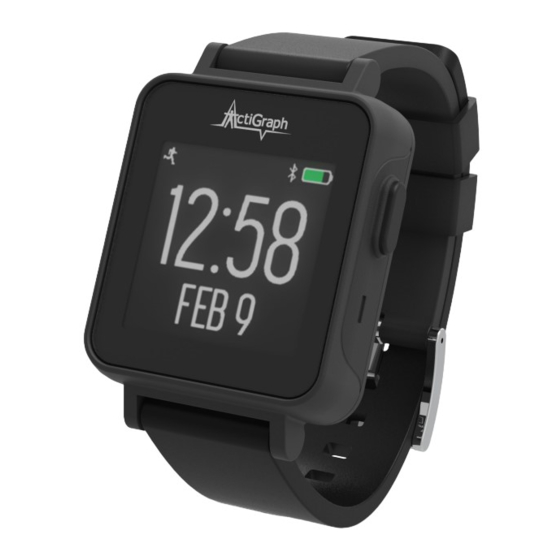

Overview CentrePoint Insight Watch The CentrePoint (CP) Insight Watch from ActiGraph captures and records continuous, high resolution acceleration data, which are converted into variety of objective physical activity and sleep measures within the cloud-based CentrePoint software system. This manual provides instructions on how to setup, deploy, and upload data from the CentrePoint Insight Watch to the CentrePoint software system. -
Page 3: What You'll Need
What You’ll Need PC + ActiSync Software CentrePoint Account CentrePoint Insight Watch CentrePoint Data Hub + Power Cable (optional) USB Cable Charging Dock Wall Charger (optional) actigraphcorp.com 10/19/2018 | Revision: 0... -
Page 4: Getting Started
Blob Azure Storage: https://acticlouduploadsprod.blob.core.windows.net CentrePoint account setup Using the invitation link provided by ActiGraph or your study sponsor, create a CentrePoint username and password. Install ActiSync software Download the ActiSync software from: https://actigraphcorp.com/actisync Double click the file to open and follow prompts to complete installation. - Page 5 Getting Started (Continued) Charge Insight Watch The Insight Watch should be fully charged before assigning it to a subject. It takes 2-3 hours to fully charge the device. Connect the charging dock to the PC or a wall outlet using the appropriate cable.
-
Page 6: Assigning The Insight Watch To A Subject
Assigning the Insight Watch to a Subject Assign the Insight Watch to a new subject Verify that ActiSync is running on the PC by checking for a small icon in the taskbar. Connect the charging dock to the computer using the provided USB cable and insert the Insight Watch into the charging dock. - Page 7 Assigning the Insight Watch to a Subject (Continued) Complete the Device Assignment form and select “Assign Device to a New Subject. ” Wait for progress bar to indicate that assignment is complete. actigraphcorp.com 10/19/2018 | Revision: 0...
- Page 8 Assigning the Insight Watch to a Subject (Continued) Note: To assign an activity monitor to an existing subject (such as in the case of a lost or broken device), complete steps 1-4 above, and scroll to the bottom of the page. Select the corresponding subject identifier from the list, then select “Assign Device to an Existing Subject.
- Page 9 Assigning the Insight Watch to a Subject (Continued) Pair the Insight Watch with a CentrePoint (CP) Data Hub (If you are not using a CP Data Hub, skip ahead to Information for Subjects) The CP Data Hub passively acquires collected raw accelerometry data from the Insight Watch and transmits to the cloud-based CentrePoint system over a cellular network.
- Page 10 Assigning the Insight Watch to a Subject (Continued) Verify connection by logging into your CentrePoint account and selecting the “Subjects” tab from the left menu. Select the desired subject from the list. You will be directed to the “Subject Details” page. Select the “Subject Timeline” tab, and verify that an upload has occurred via Data Hub USB.
-
Page 11: Information For Subjects
Information for Subjects Wearing the CentrePoint Insight Watch The Insight Watch is typically worn on the non-dominant wrist. The appropriate wear location will be outlined in the study protocol. The subject should be instructed to wear the Insight Watch strapped securely to the wrist with the display text facing right-side up when viewed like a wrist watch. - Page 12 Information for Subjects (Continued) Setting up the CP Data Hub at home (If you are not using a CP Data Hub, skip ahead to Uploading Data to CentrePoint) The CP Data Hub should be placed at home in a location where the subject spends most of his or her time. Connect the adapter end of the power cable into the back of the CP Data Hub and plug the other end into a wall outlet.
-
Page 13: Uploading Data To Centrepoint
Uploading Data to CentrePoint Verify that ActiSync is running and insert the Insight Watch into the charging dock connected to the PC. Data will automatically upload to the CentrePoint system. Once the upload is complete, a browser window will open to display the “Subject Upload Compliance” page. Mark the corresponding milestone and review wear compliance. -
Page 14: Unassigning The Insight Watch
Unassigning the Insight Watch Once the data collection period is over, you will need to unassign the Insight Watch from the subject. Follow steps 1-2 above to perform a final data upload. From the “Subject Details” page, select “Stop Collecting Data” to remove the subject assignment from the Insight Watch. -
Page 15: Lost Or Broken Activity Monitors
Lost or Broken Activity Monitors If an Insight Watch is lost or broken, it must be disassociated from the subject before assigning a replacement. Only one Insight Watch can be assigned to a subject at any given time. To disassociate an Insight Watch, select the “Subjects” tab from the left hand menu, and select the desired subject from the list. - Page 16 Lost or Broken Activity Monitors (Continued) Select “Remove monitor assignment from this subject” to disassociate the Insight Watch. To assign a replacement Insight Watch, follow the instructions on page 8 for assigning a monitor to an existing subject Note: If you are using a CP Data Hub and disassociate an Insight Watch from a subject, the CP Data Hub will automatically disassociate as well.
-
Page 17: Frequently Asked Questions
The Insight Watch should be cleaned with an alcohol-based solution (wipes or swabs). Note: If an ActiGraph device is broken, malfunctioning, or does not appear to be working as intended, the subject should stop wearing it immediately and return it to the site. Site personnel should then return the device to ActiGraph. -
Page 18: Regulatory Information
(2) this device must accept any interference received including interference that may cause undesired operation. Changes or modifications not expressly approved by ActiGraph, LLC will void the user’ s authority to operate the equipment under FCC regulations. - Page 19 By affixing the CE marking to a product, a manufacturer declares that the product meets all the legal requirements for CE marking and can be sold throughout the EEA. ActiGraph’s products abide with the Medical Device Directive 93/42/EEC and Radio Equipment Directive 2014/53/EU.
- Page 20 ActiGraphCorp.com support@actigraphcorp.com | 850.332.7900 | ©2018 ActiGraph, LLC. All rights reserved. U.S federal law restricts this device to sale by or on the order of a physician. For Canada use: The medical device registration for this product with Health Canada is scheduled for 2018. Until this is complete, the device is to be used by Qualified...
