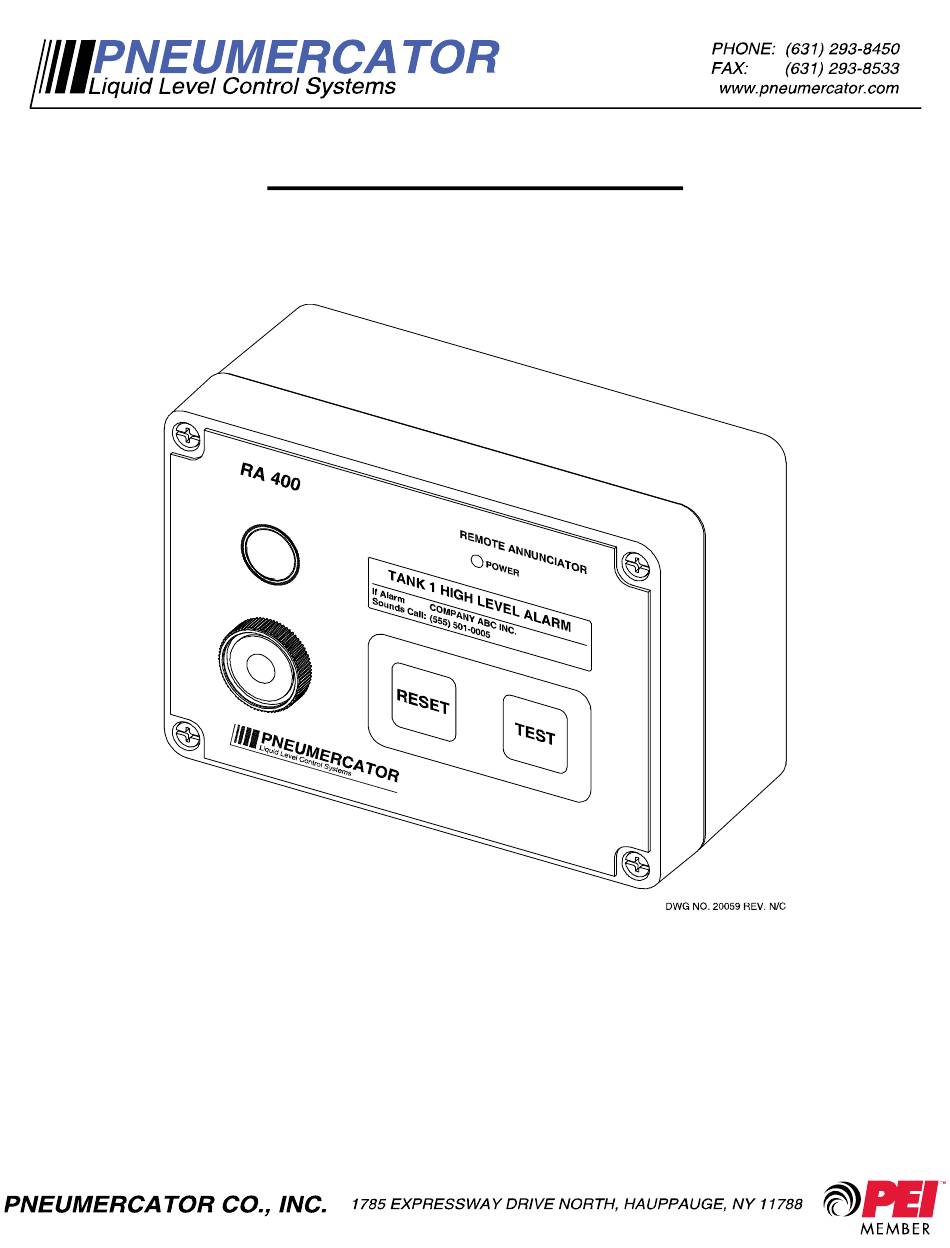

RA400 REMOTE ELECTRONIC ALARM ANNUNCIATOR
This document describes the installation, programming and operation of the RA400 Remote
Electronic Alarm Annunciator, which is designed for use with the LC2000 or most TMS Series
models.
RA400 Instruction Manual - 2017-07-30.docx
INSTRUCTION MANUAL
DWG NO. 20059 REV. N/C
July 30, 2017
Advertisement
Table of Contents
Related Manuals for Pneumercator RA400
Summary of Contents for Pneumercator RA400
- Page 1 INSTRUCTION MANUAL RA400 REMOTE ELECTRONIC ALARM ANNUNCIATOR DWG NO. 20059 REV. N/C This document describes the installation, programming and operation of the RA400 Remote Electronic Alarm Annunciator, which is designed for use with the LC2000 or most TMS Series models.
-
Page 3: Table Of Contents
2.2.2 Communications ....................13 2.2.2.1 Cable Requirements .................... 13 2.2.2.2 RA400 Terminal Connections ................14 2.2.2.3 RA400 Communications Wiring Detail ..............14 2.2.2.4 RS-485 Communications Wiring Detail ............... 15 2.2.2.5 Line Termination Resistor ................... 16 2.2.3 RS-2 Remote TEST/RESET Wiring ..............16 Section 3.0... -
Page 4: Product Overview
RS-485 Peripheral Expansion Bus, up to 16 RA400 panels may be connected to a single TMS/LC2000. The RA400 is housed in a NEMA 4X enclosure for harsh industrial/ outdoor environments. The visual indicator employs an ultra-bright, LED strobe for maximum reliability in extreme temperatures. -
Page 5: Tms/Lc2000 Compatibility
DRAWING NO. 20061 REV. A Figure 1.0-2 Interior View 1.1 TMS/LC2000 Compatibility The RA400 can be used with most TMS/LC2000 models provided appropriate firmware is loaded. RA400 support is provided with the following TMS/LC2000 console firmware versions: LC2000: V6x.00.08 or later TMS2000: V2x.00.13 or later;... -
Page 6: Test Pushbutton
1.2 TEST Pushbutton The TEST pushbutton is used to confirm operation of the front panel audible and visual alarms. For tank fill operations, TEST should always be used to confirm RA400 operation prior to filling the tank. 1.3 RESET Pushbutton The RESET pushbutton is used to acknowledge alarm conditions. -
Page 7: Power Indicator Led
1.6 Power Indicator LED A front panel LED indicator is provided to confirm that the RA400 is being supplied with AC power, and that the RA400 DC power supply is operational. DANGER! DO NOT assume that failure of the Power Indicator LED to operate is an indication that the AC connection is not LIVE. -
Page 8: Installation
2.0 Installation The RA400 is designed for both indoor and outdoor installation. If the unit is to be installed outdoors, the installer must pay attention to local code requirements for outdoor conduit runs containing AC line voltage. WARNING! This device is designed for Ordinary Location, Non-Hazardous installation only, as defined by Underwriters Laboratories (UL) and the National Electrical Code (NEC). - Page 9 (This page intentionally left blank) RA400 Instruction Manual - 2017-07-30.docx Page 9 of 22 July 30, 2017...
- Page 10 DIMENSIONS: INCHES (MM) 32 [180.0] USE (4) #10 X 2 " LENGTH MOUNTING SCREWS (3/8" MAX. SCREW HEAD DIA.) 3 21 [93.0] DRAWING NO. 20024 REV. N/C...
- Page 11 (This page intentionally left blank) RA400 Instruction Manual - 2017-07-30.docx Page 11 of 22 July 30, 2017...
-
Page 12: Wiring
Note that the AC terminal block can be wired in-place or unplugged. 115/230 VAC SWITCHABLE 1/2 AMP 250 VAC FAST 115V ACTING FUSE NEUTRAL 115/230 VAC 50/60Hz DWG NO. 20026 REV. A Figure 2.2.1-1 RA400 Instruction Manual - 2017-07-30.docx Page 12 of 22 July 30, 2017... -
Page 13: Communications
2.2.2 Communications The RA400 supports an RS-485 multi-drop cabling topology as illustrated in Figure 2.2.2-1 below. Maximum cable distance from the TMS/LC2000 console to the furthest RA400 is 4000 feet (1200M). END-OF-RUN ETD1000 OR RA400 ETD1000 OR RA400 ETD1000 OR RA400... -
Page 14: Ra400 Terminal Connections
Both input and output terminals are provided to support multi-drop wiring to additional RA400s or other RS-485 expansion bus peripherals. RS-485 COMMS. CH. A (+) CH. B (-) SHIELD DRAWING NO. 20033 REV. N/C 2.2.2.3 RA400 Communications Wiring Detail See Figure 2.2.2.3-1 below. END-OF-RUN RS-485 COMMS. RS-485 COMMS. WHT/BL CH. A (+) -
Page 15: Rs-485 Communications Wiring Detail
Current version TMS/LC2000 consoles have the same type of plug-in terminal connector and wiring designations as the RA400, as illustrated in Figure 2.2.2.4-1 below. Previous versions have a 6- position modular jack. If the board type is a previous version, you will need to replace it with a current revision board. -
Page 16: Line Termination Resistor
The RS-485 bus requires that the end-of-run device be terminated with a 120-ohm resistor. This is accomplished by setting the LINE TERMINATION switch to “ON” if the selected RA400 is the last device on the bus. Otherwise this switch should be set to “OFF”. -
Page 17: Configuration
The TMS/LC2000 has the ability to individually address up to sixteen (16) RA400 remote displays. Rotary dipswitch S3 is used to select unique addresses for each RA400 connected to the same TMS/LC2000. Note that address order is not important, and that RA400 device addresses are independent of other TMS/LC2000 smart peripheral types. -
Page 18: Setting Shutoff Delay - S4
3.1.2 Setting Shutoff Delay – S4 The RA400 provides the user with selectable automatic shutoff delays for the audible alarm. Once initiated, the audible alarm will turn off after the selected time delay has elapsed, or immediately if acknowledged at the front panel. This feature is useful in applications where continued operation of an unacknowledged audible alarm poses a nuisance or noise abatement problem. -
Page 19: Alarm Programming - S5, S6, S7
3.1.3 Alarm Programming - S5(1-5), S6, S7 The RA400 alarm programming provides the user with considerable flexibility in the selection of which alarms it is to annunciate. Referring to Table 3.1.3-1 below, the Alarm TYPE dipswitches allow the user to select between four types of alarms; TANK, SENSOR, CONTACT CLOSURE and SYSTEM. - Page 20 ALARM PROGRAMMING SWITCH S5 SWITCH S6 SWITCH S7 Type Group Tank Selec ts Tank Alarm Selects LEAK LEAK LEAK LEAK LEAK LEAK Select All Tanks LEAK Select All Tanks LEAK Type Group Leak/Point Level Sensor Selects Select Al l Leak/Point Level Sensors (S6, S7 settings do not apply) Select Al l Leak/Point Level Sensors (S6, S7 settings do not apply) Type Group...
-
Page 21: Miscellaneous Programming - S5
*Factory Default Front Panel (FP) Acknowledge Settings: If set to LOCAL, front panel acknowledgement will only silence local RA400 audible alarm. If set to LOCAL and TMS/LC2000, both RA400 and TMS/LC2000 audible alarms will be silenced. RA400 Instruction Manual - 2017-07-30.docx... -
Page 22: Product Specifications
Recommended RS-485 Cable: Belden 9841 (PVC Jacket), 89841 (FEP Teflon Jacket) or similar Maximum Cable Length: 4000 Feet/1200 Meters total to end of run Slave Address Select: 1 thru 16, Rotary Dip Switch Selectable RA400 Instruction Manual - 2017-07-30.docx Page 22 of 22 July 30, 2017...
