Tms/Lc2000 Compatibility - Pneumercator RA400 Instruction Manual

1.1 TMS/LC2000 Compatibility

The RA400 can be used with most TMS/LC2000 models provided appropriate firmware is loaded.
RA400 support is provided with the following TMS/LC2000 console firmware versions:
Please contact Technical Support for an upgrade if you have firmware outside of the above range,
or if you have questions about identifying the firmware version in your console.
IMPORTANT! Confirm that the installed TMS/LC2000 console firmware
version supports RA400 communications.
RA400 Instruction Manual - 2017-07-30.docx
J1
FRONT PANEL
(2) ROTARY
SWITCHES
D3 D2
FRONT PANEL
CABLE
+ 3.3 V + 5 V
CONNECTOR
(2) LEDS
RS 2
PLUG-IN TERMINAL
BLOCK
(2) RS-485 COMMS.
PLUG-IN TERMINAL
BLOCKS
RS-485 COMMS.
T 2 B
CH. A (+)
O
I
CH. B (-) U
N
T
SHIELD
ON LINE TERMINATOR
"ON" FOR
END-OF-RUN ONLY
OFF
S2
LINE TERMINATOR
SWITCH
LC2000: V6x.00.08 or later
TMS2000: V2x.00.13 or later; V2x.01.xx
TMS3000: V3x.00.13 or later; V3x.01.xx
TMS2000W, TMS4000, TMS4000W: All firmware versions supported
where "xx" denotes "don't care" values
S3
ADDRESS
SELECT
S4
SHUTOFF
DELAY
S5
ALARM 1
TYPE
2
3
ALARM
4
GROUP
5
EDIT EN
6
FP ACK
7
SER EN 8
S6
TA / D1 1
TB / D2 2
TC / D3
3
T 3 B
TD / D4
4
LK / D5 5
SP1 / D6 6
SP2 / D7 7
TB4
SP3 / D8 8
S7
* / D9
1
* / D10 2
* / D11 3
W / D12 4
* / D13
5
REMOTE * / D14
6
SWITCH
* / D15
7
D16
8
AC POWER PLUG-IN TERM INAL BLOCK
(W/ SCREWFLANGE TO SECUREPLUG)

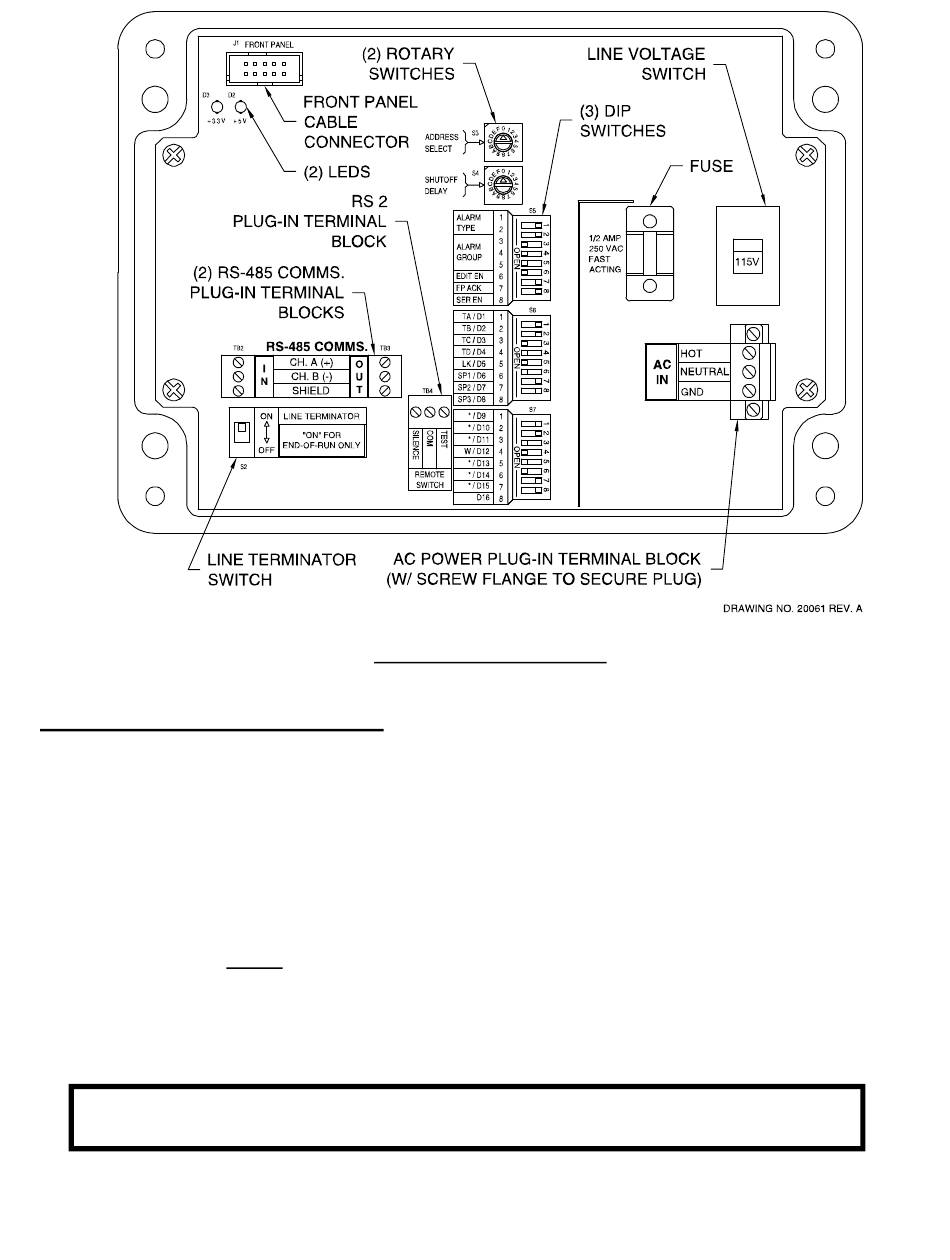

Figure 1.0-2 Interior View
