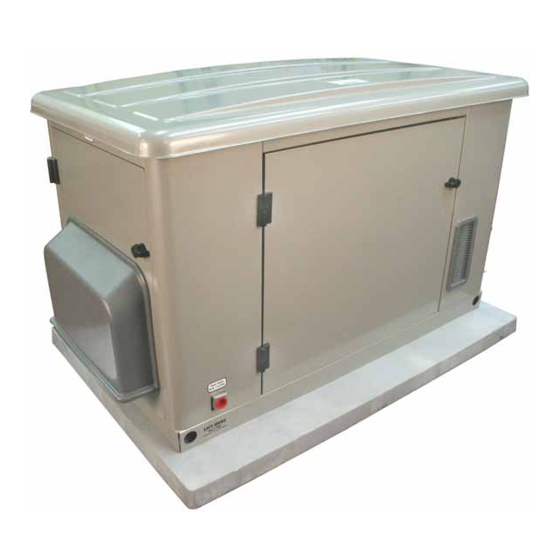

15000 watt home generator system
Hide thumbs Also See for 040213:
Table of Contents

Advertisement

Quick Links

See also: Operator's Manual
15000 WATT HOME GENERATOR SYSTEM
SERVICE & TROUBLESHOOTING MANUAL
MODELS 040213 & 040234
Part# 276351GS - June 2006
Page 1
