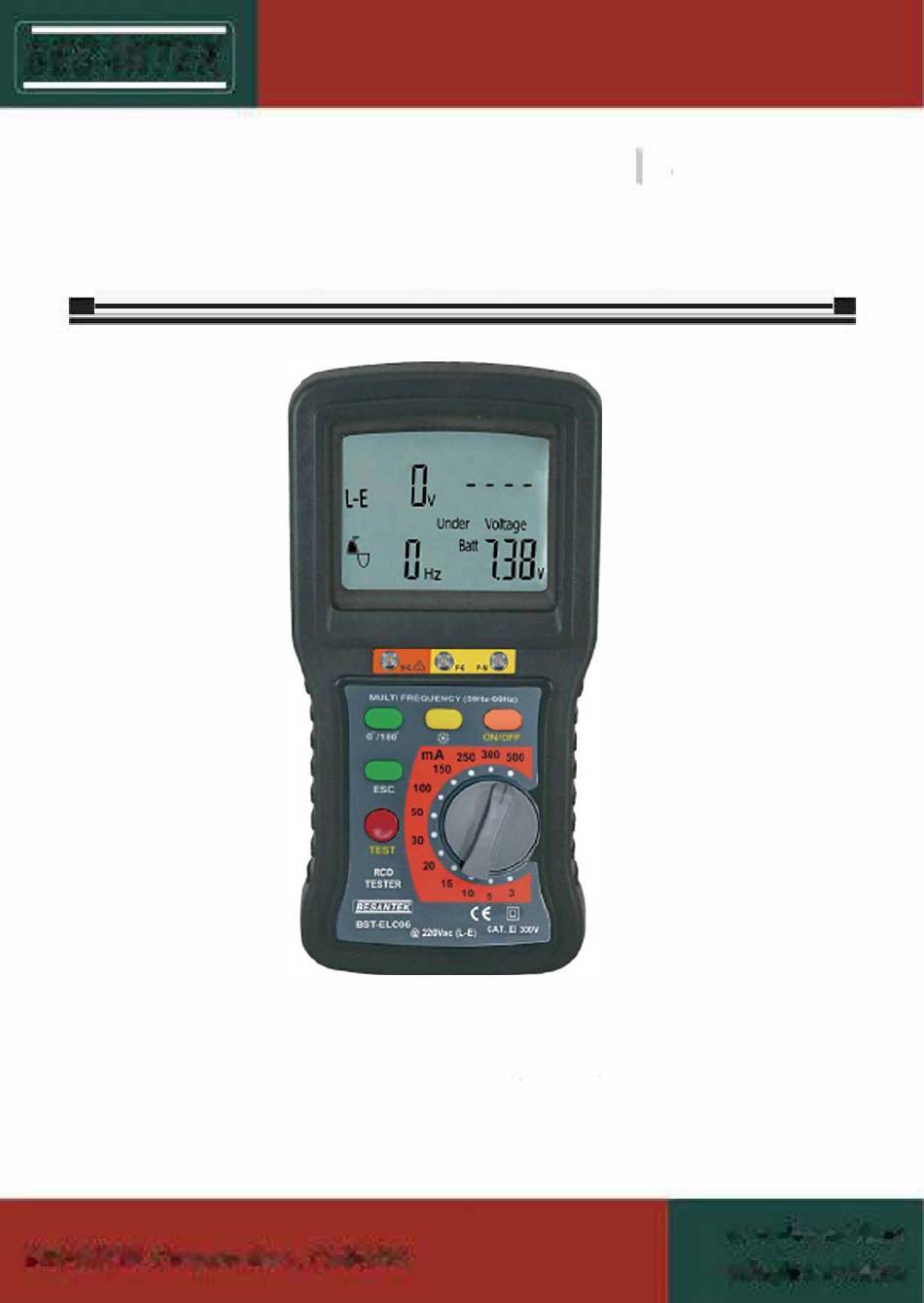

- Page 1 BESANTEK BST-ELC06 DIGITAL RCD TESTER Version A= 240VAC Version B = 230VAC Version C = 220VAC Version D = 110VAC INSTRUCTION MANUAL Test Equipment Depot - 800.517.8431 Washington Street Melrose, MA 02176 TestEquipmentDepot.com...
-
Page 2: Table Of Contents
Index Page 1. Safety precautions ......2. Specifications ........3. Features ........... 4. Connections ........5. Instrument layout ......6. RCD Test .......... 7. Preparation for measurement ... 8. Battery replacement ......9. Fuse replacement ......10. Servicing and calibration ....11. -
Page 3: Safety Precautions
1. Safety Precautions Electricity can cause severe injuries even with low voltages or currents. Therefore it is extremely important that you read the following information before using your Digital RCD Tester. 1.1 This instrument must only be used and operated by a competent trained person and in strict accordance with the instructions. - Page 4 BESANTEK practice is used. Use caution in the presence of voltage above 24V as these pose a shock hazard. 1.6 Pay attention to cautions and warnings which will inform you of potentially dangerous procedures. Rated environmental conditions: (1) Indoor use.
-
Page 5: Specifications
2. Specifications 3mA, 5mA, 10mA, 15mA, 20mA, 30mA, Current Settings 50mA, 100mA, 150mA, 250mA, 300mA, 500mA Current Selection Rotary Switch Selector Phase Start Selection Referenced to Earth 0° and 180° Over-Temperature Protection Wiring Correctness Yes ( LEDS ) Indication Trip Indicator Yes ( LCD ) Version A 240VAC... -
Page 6: Features
BESANTEK 3. Features • Microprocessor-controlled. • Extra large LCD(78 x 67mm). • Very low consumption. • 50Hz and 60Hz operation. • Accurate digital readout of disconnection time. • Over temperature protection. • Over voltage protection. • Fuse protection. ° °... -
Page 7: Instrument Layout
BESANTEK 5. Instrument Layout (10) (1) LCD (7) ON/OFF button (8) Fuse ° ° (2) 0 /180 Phase angle (9) L(LINE) terminal select button (10) N(NEUTRAL) (3) ESC button terminal (4) TEST button (11) E(EARTH) (5) Function rotary switch terminal... -
Page 8: Rcd Test
BESANTEK 6. RCD Test 1. Turn Instrument "ON" by pressing the "ON/OFF" button. The LCD will come to the following screen and will show the battery voltage. ---- ·E i.m Yobge Batton, J.U ·� 2. When connect the instrument to a 240V system (with an RCD), the LCD will come to the following screen. - Page 9 BESANTEK 4. If the instrument is over-temperature, the LCD will come to the following screen, the" " symbol will show on the LCD. This means the instrument stops working. The user needs to wait until the instrument cool down. -E�YOv s.999...
-
Page 10: Preparation For Measurement
7. Preparation for Measurement Before testing Always Check the Following. - There is no visual damage to the Instrument or Test leads. - Test lead Continuity with a continuity meter. 8. Battery Replacement Your Digital RCD Tester's batteries are situated under the tester. -
Page 11: Servicing And Calibration
NOTE : 1. CAT.IV - is for measurements performed at the source of the low-voltage installation. 2. CAT.III - is for measurements performed in the building installation. 3. CAT.II - is for measurements performed on circuits directly connected to the low voltage installation. 10.
