Electrolux RCD990S Installation Manual

Canopy rangehoods

Hide thumbs Also See for RCD990S:

Installation and operation manual (11 pages)

Installation and operation manual (3 pages)

page of 16

/ 16
Bookmarks

Quick Links

Download this manual See also: Operation & Installation Manual

20mm

1100mm extension flue cover is available if required where high ceilings are present. (Model No. AR500FS)

All measurements in millimetres.

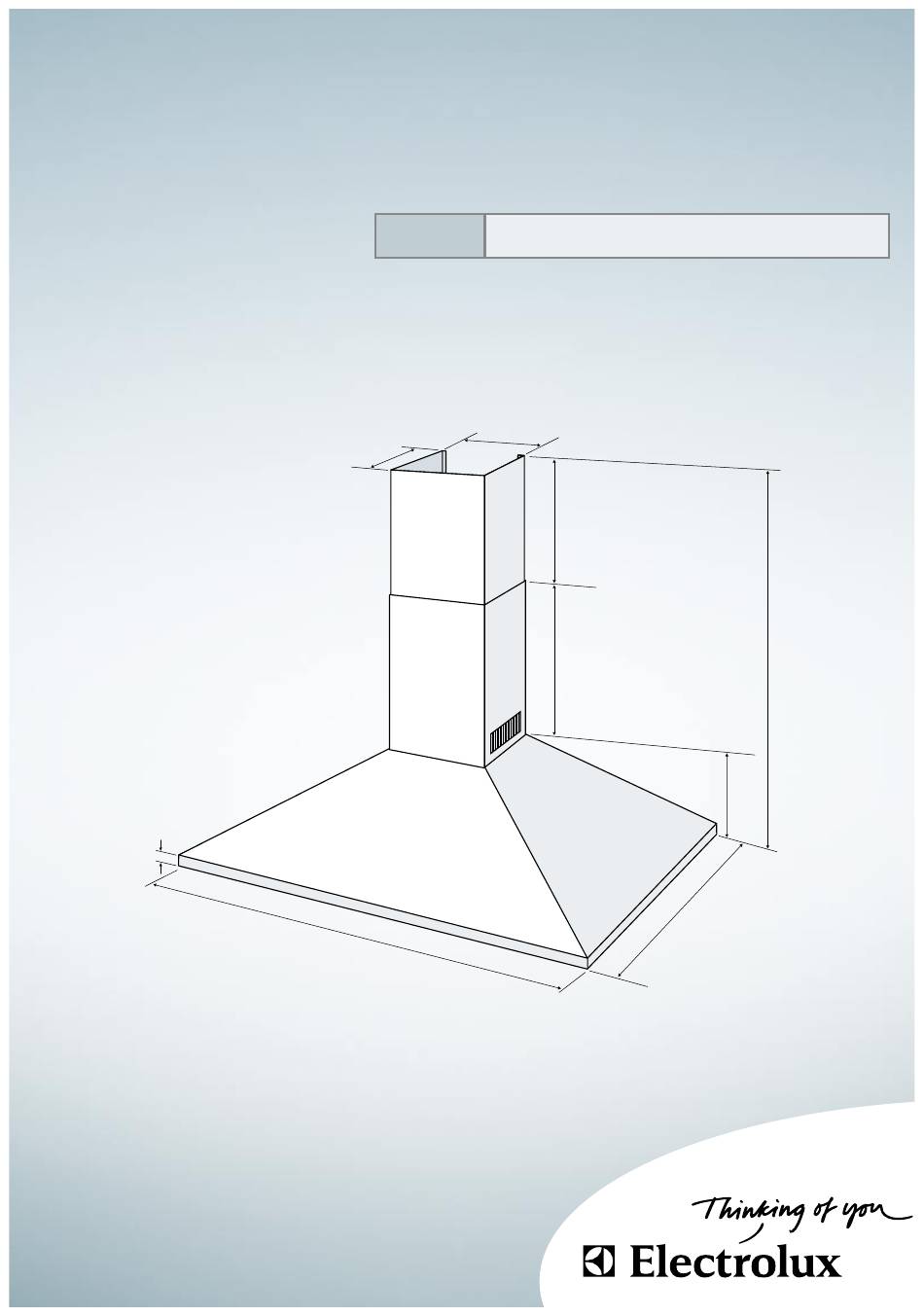

page 1 of 3

installation guide

canopy rangehoods

Models:

165mm

600/900mm

RCD690S, RCD990S

222mm

470mm (max.)*

540mm

1240mm (max.)

230mm

500mm

Need help?

Do you have a question about the RCD990S and is the answer not in the manual?

Questions and answers

Summary of Contents for Electrolux RCD990S

Page 1 500mm 600/900mm 1100mm extension flue cover is available if required where high ceilings are present. (Model No. AR500FS) All measurements in millimetres. Current as at May 2006. © 2006 Electrolux Home Products Pty Ltd. ERANIDCANOPY 05/06 page 1 of 3...
Page 2 † †In recirculating mode you must use carbon filters to elminate cooking smells. (Model No. AR500CF) All measurements in millimetres. Current as at May 2006. © 2006 Electrolux Home Products Pty Ltd. ERANIDCANOPY 05/06 page 2 of 3...
Page 3 AR125FJD Flue Joiner with damper NB: The RCD690S and RCD990S models are supplied with a recirculating t-piece. Therefore, if recirculating you only require carbon filters (Model No. AR500CF) Current as at May 2006. © 2006 Electrolux Home Products Pty Ltd. ERANIDCANOPY 05/06...
Page 4 In recirculating mode it is recommended you use carbon filters to elminate cooking smells. (Model No. ARCFD) †70mm fascia required for front recirculation. All measurements in millimetres. Current as at May 2006. © 2006 Electrolux Home Products Pty Ltd. ERANIDSLIDE60 05/06 page 1 of 2...
Page 5 Flexible Duct – 1 metre long when expanded AR125WV Wall Vent Kit AR125FJ Flue Joiner without damper AR125FJD Flue Joiner with damper ARCFD (not illustrated) Replacement Carbon Filters Current as at May 2006. © 2006 Electrolux Home Products Pty Ltd. ERANIDSLIDE60 05/06 page 2 of 2...
Page 6 In recirculating mode you must use carbon filters to elminate cooking smells. (Model No. ARCFD) † RRE635 models are supplied with carbon filters and 70mm fascia. All measurements in millimetres. Current as at May 2006. © 2006 Electrolux Home Products Pty Ltd. ERANIDSLIDE90/70 05/06 page 1 of 2...
Page 7 Flexible Duct – 1 metre long when expanded AR125WV Wall Vent Kit AR125FJ Flue Joiner without damper AR125FJD Flue Joiner with damper ARCFD (not illustrated) Replacement Carbon Filters Current as at May 2006. © 2006 Electrolux Home Products Pty Ltd. ERANIDSLIDE90/70 05/06 page 2 of 2...
Page 8 In recirculating mode you must use carbon filters to elminate cooking smells. (Model No. ARCFD) † 70mm fascia required for front recirculation. All measurements in millimetres. Current as at May 2006. © 2006 Electrolux Home Products Pty Ltd. ERANIDSLIDE90 05/06 page 1 of 2...
Page 9 Flexible Duct – 1 metre long when expanded AR125WV Wall Vent Kit AR125FJ Flue Joiner without damper AR125FJD Flue Joiner with damper ARCFD (not illustrated) Replacement Carbon Filters Current as at May 2006. © 2006 Electrolux Home Products Pty Ltd. ERANIDSLIDE90 05/06 page 2 of 2...
Page 10 RRE634W fitted with White front fascia RRE634S fitted with Stainless Steel front fascia ! " & ( )* " & "3 " " " & ) , " 0 1 $ " 0" " & ) 8 " " 8 " "...
Page 11 RRE934W fitted with White front fascia RRE934S fitted with Stainless Steel front fascia < ! " & ( )* " & "3 " " " & ) , " 0 1 $ " 0" " & ) 8 " " 8 "...
Page 12 " " 899.5 ! ! $ June 2006...
Page 13 & & RRE635W fitted with 70mm White front fascia RRE635S fitted with 70mm Stainless Steel front fascia ! " & ( )* " & "3 " " " & ) , " 0 1 $ " 0" " & ) 8 "...
Page 14 " & & ! ! $ " June 2006...
Page 15 " June 2006...
Page 16 ") & ( & ( *+ , " " " !" " " " " & &+ 12!! " " " " " June 2006...
