Summary of Contents for REED LM-81LX

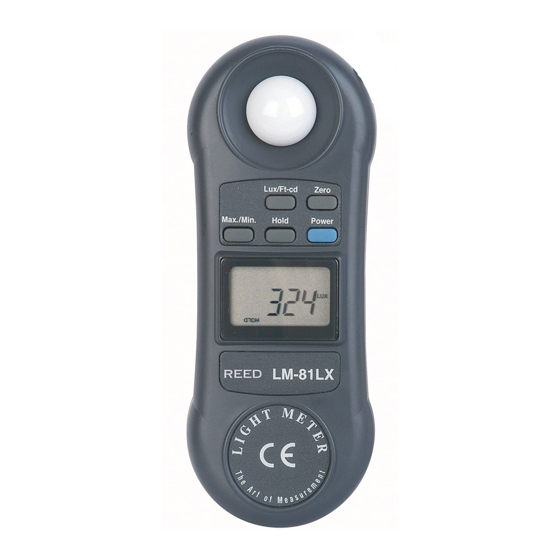

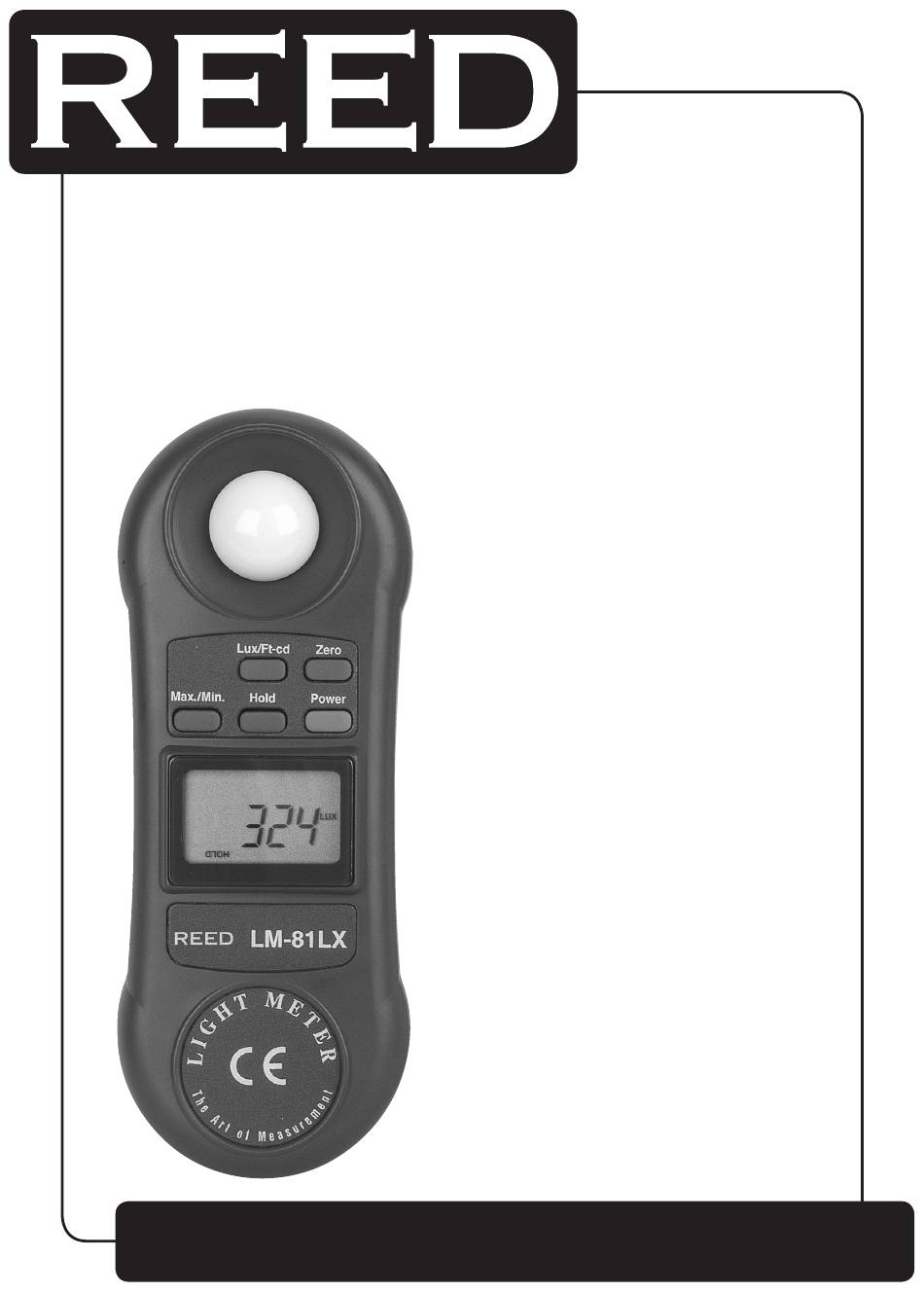

- Page 1 LM-81LX Model Illuminometer Instruction Manual reedinstruments...
- Page 2 • Lux/Foot-candle selectable by pressing button on the front panel • Zero button design makes light meter calibration • Hold function to freeze the current reading value For service on this or any other REED product or information on other REED products, contact REED Instruments at info@reedinstruments.com. reedinstruments...
-
Page 3: Specifications
Specifications General Specifications Display 13 mm LCD display Measurement Light (Lux/Foot-candle) Operating Humidity Max. 80% RH. Operating Temperature 0 to 50°C (32 to 122°F) Over Input Display Indication of “- - - -” Power Supply 006P DC 9V battery (Heavy-duty type) Power Consumption Approx. -
Page 4: Instrument Description
Instrument Description 1 - Power Button 2 - Hold Button 3 - Max./Min. Button 4 - Zero Button 5 - Lux/Ft-cd button 6 - Light Sensor 7 - LCD display 8 - Battery Compartment / Cover 9 - Wristlet Measuring Procedures 1. -
Page 5: Auto Power Off
2. Open the Battery Cover (#8, page 4) at the back of the meter and remove the battery. 3. Replace with a 9V battery (alkaline or heavy-duty type) . and reinstall the cover. For service on this or any other REED product or information on other REED products, contact REED Instruments at info@reedinstruments.com. reedinstruments... - Page 6 Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ reedinstruments...
