Fantech HV-150CAP Installation Instructions

Contents:

Check that your HV-Weather Cap contains
• Weather Cap (1).
• Weather Cap Mounting Screws (3 for HV-150CAP and HV-230CAP), (4 for HV-300CAP).
• M4 Nuts and Washers (3 for HV-150CAP and HV-230CAP), (4 for HV-300CAP).
• White mounting tabs (3 for HV-150CAP and HV-230CAP), (4 for HV-300CAP).

Inspection:

Before installing check both your HV Stylvent fan and Weather Cap for any transit damage.

Installation:

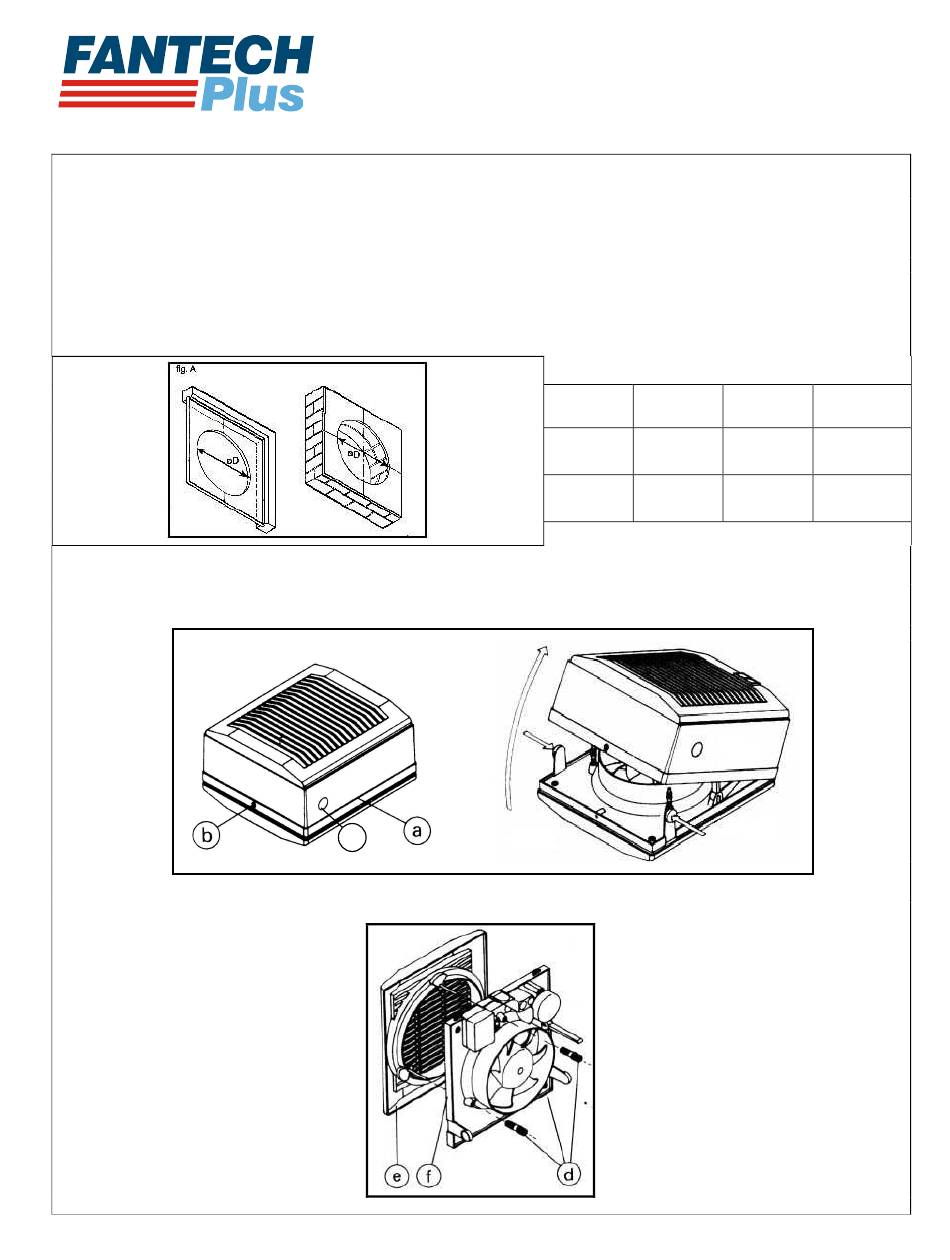

• Cut a hole following the dimensions in Fig. A.

• Preparing The HV-Fan:

1. Remove the cover (a) by unscrewing the retaining screw (b) found on the bottom of the fan. Then
press the tabs (c) and lift off the cover.
2. To remove the external grille (e) from the fan backing plate (f) unscrew the plastic fasteners (d). Note
the HV-150 and HV-230 have 3 fasteners whereas the HV-300 has 4.
Part No INST-HVCAP 7/07/2008
HV Stylvent Weather Cap
Instructions Installation
c
1 of 3
(mm) HV-150 HV-230
∅D
187
Min
∅D
190
Max
HV-300
259 327
262 330
