AC2600 WiFi Gigabit Router
Quick Start
Model MR2600

Advertisement

loading

  Related Manuals for Motorola MR2600

  Summary of Contents for Motorola MR2600

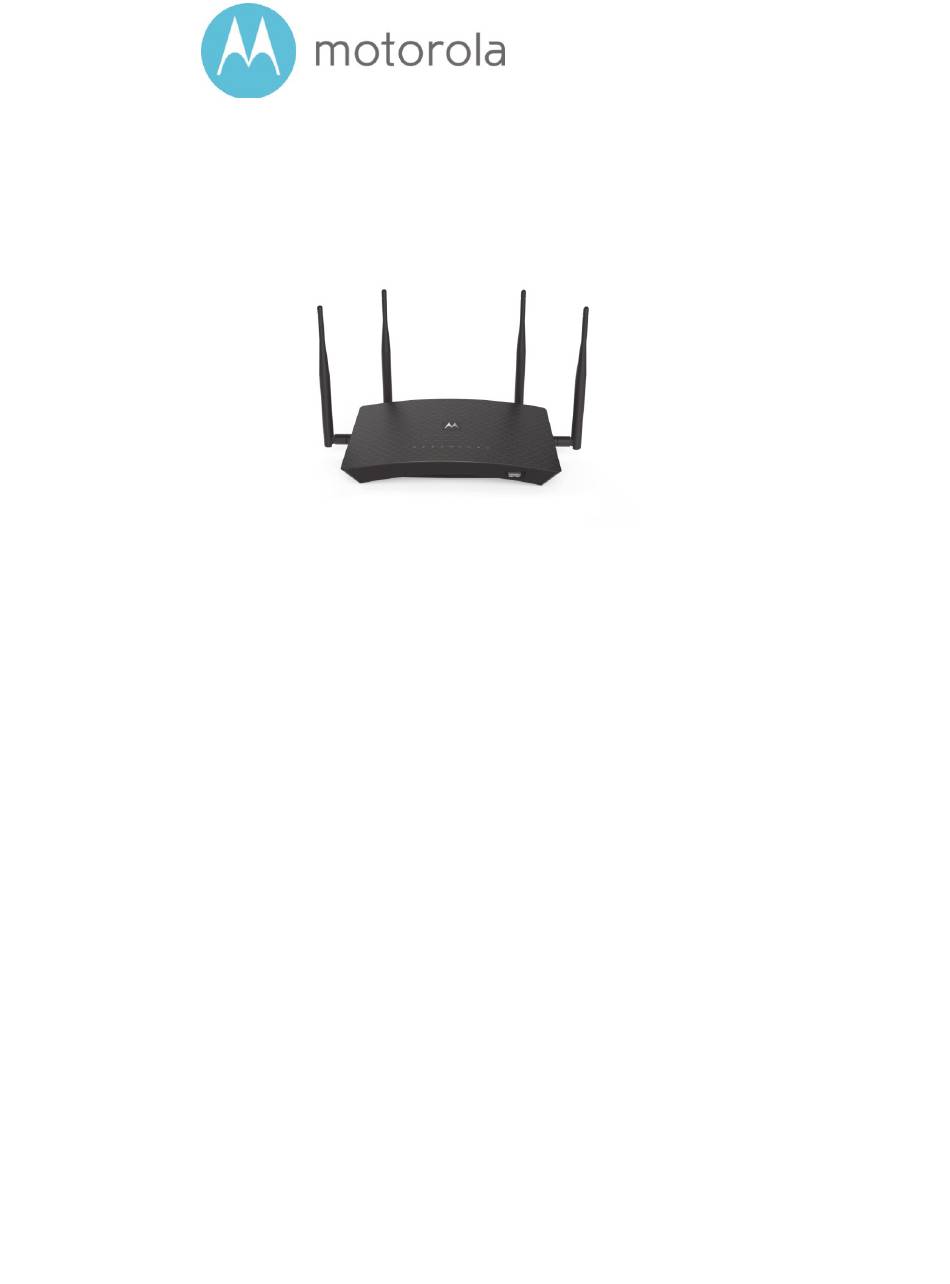

  • Page 1 AC2600 WiFi Gigabit Router Quick Start Model MR2600...
  • Page 2 Packaged with your MR2600 router Power Cube Ethernet Cable (varies by country) Para una Guía de Inicio Rápido en español, por favor vaya a www.motorolanetwork.com/MR2600IR...
  • Page 3: Let's Get Started

    Let’s get started First connect the MR2600’s yellow Ethernet cable between the MR2600’s WAN port and the Ethernet port of a cable modem, DSL modem, fiber optic modem, or an in-building Ethernet network used for Internet access. If you are using a modem, switch the power of the modem off now.
  • Page 4 Now connect the supplied power cube between the MR2600’s power jack and a working electrical outlet. The MR2600 should power up and the Status light on the top of the unit below the Motorola logo should turn on or blink. When blinking, it is on but not connected to the Internet.
  • Page 5: Connect Your Devices

    Once you’ve set up a Wireless or Wired Ethernet connection, try to browse the Web. If browsing works, Congratulations! Your MR2600 is working. If your MR2600 is NOT working, see Troubleshooting Tips below.
  • Page 6: Configuration Manager

    Password: motorola The first time you log into the MR2600, you will be asked to configure your router. Click on the Configure your Router button to go to the Basic Settings page. Most users should click Save to accept the default configuration. You may want...
  • Page 7 . If you later log into the MR2600, you will be taken to the Home page. If the home page doesn’t appear, please see the...
  • Page 8 Note that wireless performance depends on a number of factors. Please keep these things in mind:  Where possible, put the MR2600 in a central place so that it’s not too far away from your other wireless devices.  Don’t put the MR2600 close to interference-generating wireless devices such as Bluetooth headsets and stereos, microwave ovens, 2.4 GHz cordless phones and base stations,...
  • Page 9: Back Panel

    Back Panel ETHERNET (LAN 1, 2, 3, 4) You can connect a computer, HDTV, game station, MoCA Adapter, or other Ethernet-capable device to any of these 4 LAN ports. You can connect up to 4 devices in this way. Connect your modem or in-building network to the WAN port with an Ethernet cable.
  • Page 10: Troubleshooting Tips

    Troubleshooting Tips Why can’t I connect to the Internet after installing my router?  Check that the power cube jack is correctly plugged into the router and that the power cube is plugged into a live outlet.  Verify that the cable between the router and modem (or Ethernet jack if connecting to an in-building network) is plugged into the router’s WAN jack.
  • Page 11 The default values are printed on the bottom label. Use these unless you changed them. If you did change them, you may have written the new settings on a label that’s on the MR2600. If you have a device that connects wirelessly to the MR2600, it may show the Wi-Fi SSID/Network Name and Wi-Fi Password/Key.
  • Page 12: Limited Warranty

    We like to help. Please visit our support Website or call our support specialists. Our Website has our Motorola Mentor information, and also provides returns and warranty information. www.motorolanetwork.com/support Email: support@motorolanetwork.com Phone: In the US and most other countries: 800-753-0797 or +1 617-753-0562...
  • Page 13 Safety Precautions These precautions help protect you and your MR2600.  Do not put the MR2600 or its power cube in water, since this is a shock hazard.  Do not use the MR2600 outdoors if that exposes the router to rain, snow, ice, excessive moisture, extreme temperatures, or other extreme conditions.
  • Page 14 PO Box 121147 Boston, MA 02112-1147 ©MTRLC 2017. MOTOROLA and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. and are used under license. All other trademarks are the property of their respective owners. All rights reserved.
