- Page 1 COM PL ET E U SER MAN UAL B LUE WATE R P RO WAT ER PU RIFIER...
-
Page 2: Table Of Contents
Contents INTRODUCTION ........................... 03 About this manual ............................03 Limited warranty ............................03 Environment information ..........................03 Disposal ..............................03 Safety instructions ............................03 Safety information ............................04 PRODUCT OVERVIEW........................05 Models ............................... 05 Pro outside ..............................05 Pro inside and replacement components ..................... 07 Move the water purifier .......................... -
Page 3: Introduction
A CAUTION identifies conditions that can cause injury or, damage to the equipment. Obey the instructions and do not continue until all conditions are accepted and engaged. A Note identifies important information for a trouble free and optimal use of the water purifier. © Bluewater Group 2017... -
Page 4: Safety Information
(TDS). Replace this membrane regularly. Only approved Bluewater staff can do servicing and repairs on the water purifier. Only use original replacement cartridges and parts from Bluewater. For the spare parts catalogue and contact information for purchases, see www.bluewatergroup.com. -
Page 5: Product Overview

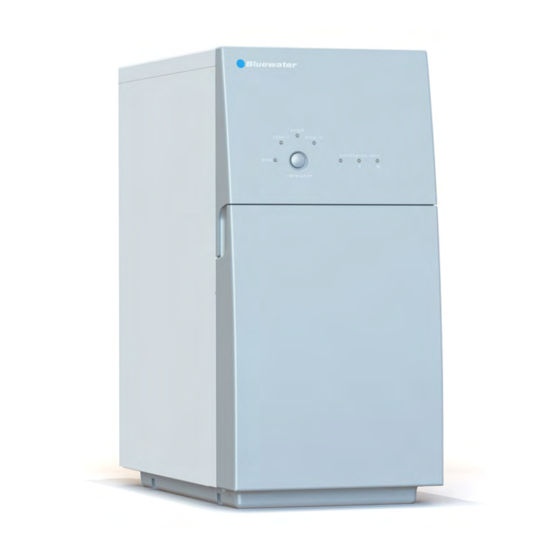

Control panel Feed water connection with grid filter Front cover Clean water rinse valve (CV-models) Clean water connection Air gap bracket Electrical connection for faucet (optional) Rinse water tube Drain water hose Pure water tube Power cord © Bluewater Group 2017... - Page 6 Control panel For information about combinations of lights that flashes/are on, see “Troubleshooting” on page 12. Figure 2. Control panel Light/button Description on/off The water purifier is connected to power Off: The water purifier is not connected to power filter I The filter must be replaced.
-
Page 7: Pro Inside And Replacement Components
Put the water purifier into storage if it will not be used for 4 months or more, or if it is to be disconnected from the water and electricity for >5 days, see “Put into storage” on page 23. Figure 5. Move the water purifier © Bluewater Group 2017... -
Page 8: System Overview
SYSTEM OVERVIEW System description Figure 6. System overview, an example of Pro installation Description Description Water purifier Bracket for drain water hose Power cord Clean water hose Feed water hose Clean water faucet (optional Pro 400 series) Drain water hose, installed with an air-gap Complete User manual... -
Page 9: Leak Protection System
If Pro stops because of low pressure, the cause of the low pressure must be removed. If not, the pump can be permanently damaged. Low pressure restart function 2-10 bar (29-145 psi) Figure 7. Manual restart after low pressure cause has been removed © Bluewater Group 2017... -
Page 10: Water Production
Water production Only use the cleaned water when the lights “Purification level II and III” on the control panel are on. It can take up to 60 seconds before the water purifier indicates good water quality. For models suitable for commercial use the faucet could be replaced by for example a valve or a tank. -
Page 11: Installation
INSTALLATION Install the water purifier in accordance with local regulations. If you are not sure, contact a Bluewater dealer for aid. Bluewater has no responsibility for installation of the water purifier. Install the water purifier in a vertical position on a horizontal surface. Make sure that hose and cables can move freely when the water purifier is installed. -
Page 12: Position Pro
Position Pro Put Pro in a vertical position on a horizontal surface below the kitchen sink. Make sure that the surface can support Pro Position Pro near the cold water supply, the drain and an earthed electrical supply. • Make sure that it is easy to see the control panel. •... -
Page 13: Install Clean Water Faucet
The water purifier is connected to cold water via the feed water hose. See “Requirements on feed water to water purifier” on page 27. 1/2” - 3/4” Figure 15. Install feed water connection © Bluewater Group 2017... -
Page 14: Install Drain Water Connection
Install drain water connection Install the drain water hose with an air-gap. The flushed water goes through the drain water hose to the drain water outlet. This hose can be a maximum of four meters long. The minimum internal diameter is 13 mm. ×1 ×2 Figure 16. -
Page 15: After Installation
• when the membrane has been replaced. 10 min 30 s Figure 18. Flush Pro Do a check for leaks The hose connections must be tight! ×6 Figure 19. Check for leaks © Bluewater Group 2017... -
Page 16: Calibration
Calibration Do not drink the water that is produced when the water purifier is calibrated. It is not safe to use. If any of the purification level lights I-III does not go out, go through the checkpoints under Flushing and restart the calibration. If the purification level lights I-III do a wandering flashing light, restart the calibration. -
Page 17: Maintenance
The water quality controls the maintenance frequency. If the feed water is of low quality, do maintenance more frequently. Each month Do a check for leaks The hose connections must be tight! ×6 Figure 21. Check for leaks Repair leaks 10mm (1/2”) Figure 22. Repair leaks © Bluewater Group 2017... -
Page 18: Each 4-6 Months
If Pro has been descaled and the filters have been replaced, but the water flow cannot be restored, contact your Bluewater dealer. The descale takes approximately 10 hours. Do not use the water purifier during this time. Order the descaling product from Bluewater 30 s Complete User manual... - Page 19 ~25 °C 200 g (77 °F) 7 oz 45 s 10 h 30 s 10 min 30 s Figure 24. Descale © Bluewater Group 2017...
- Page 20 Replace prefilter Replace the filters after what comes first of 4-6 months or 37 850 l (10 000 gal) of purified water. Pro 600: change both filters when filter light I or II lights up. If filter II is replaced before the filter II light shows that it is necessary, reset Pro as given in steps 18-20.
-
Page 21: Each Year
Clean the grid filter The grid filter in the feed water connection catches larger particles. If the flow is decreased or if Pro makes a noise, the grid filter can be blocked. Figure 26. Clean the grid filter © Bluewater Group 2017... - Page 22 Use disinfectant to clean the system Disinfectant is harmful! Keep it where children cannot get it. Clean your hands when you have used it. 30 s 400 ml ~25°C °F) 25 ml (NaClO 3.5%) 45 s 30 min I + II I + II I + II Complete User manual...
- Page 23 Put the water purifier into storage if it will not be used for 4 months or more, or if it is to be disconnected from the water and electricity for >5 days. I + II I + II 3+3 l (~0.8+0.8 gal) © Bluewater Group 2017...
- Page 24 40 s -30°C (-22°F) Figure 28. Put into storage Complete User manual...
- Page 25 Always flush the water purifier after storage. See “Flush Pro” on page 15. I + II 48 h +5°C (40°F) I + II I + II 19 mm (3/4”) Figure 29. Reinstall after storage © Bluewater Group 2017...
-
Page 26: Technical Information
Purified water flow Sound level earthed rate 225×466×460 mm 29 kg 230V, 50-60 Hz 530 W 1825 gallon/day 230V Pro 400B-HR < 60 dB(A) 8.9×18.3×18.1” 64 lbs 120V, 60 Hz 6 Amps 120V 225×466×460 mm 29 kg 230V, 50-60 Hz... -
Page 27: Requirements On Feed Water To Water Purifier
58 and CSA Standard B483.1. WQA certifies product performance, and reviews the manufacturing facility and procedures to assure product consistency and integrity. The Bluewater Pro water purifier has been tested according to NSF/ANSI 58 for reduction of the substances listed below: - TDS... -
Page 28: Troubleshooting
TROUBLESHOOTING How to solve simple problems If Pro stops because of an emergency, disconnect it from power and connect it again, or press calibration button to reset the emergency stop. Symptom Cause Solution Filter I must be replaced. See “Replace prefilter” on page 20. The grid filter is blocked. - Page 29 The water purifier needs to be descaled. See “Descale” on page 18. The pump is worn out. Contact your Bluewater dealer. The water purifier starts and stops The water pressure between the water Examine the connections. again (short starts).
- Page 31 Bluewater is a world leading water purification company. Headquatered in Stockholm, Sweden, the company helps people and businesses in Europe, the USA, China and elsewhere in Asia enjoy the health and wellbeing benefits of cleaner, healthier tap water. Bluewater innovates, makes and sells compact water purifiers that harness the company’s patented reverse osmosis...
