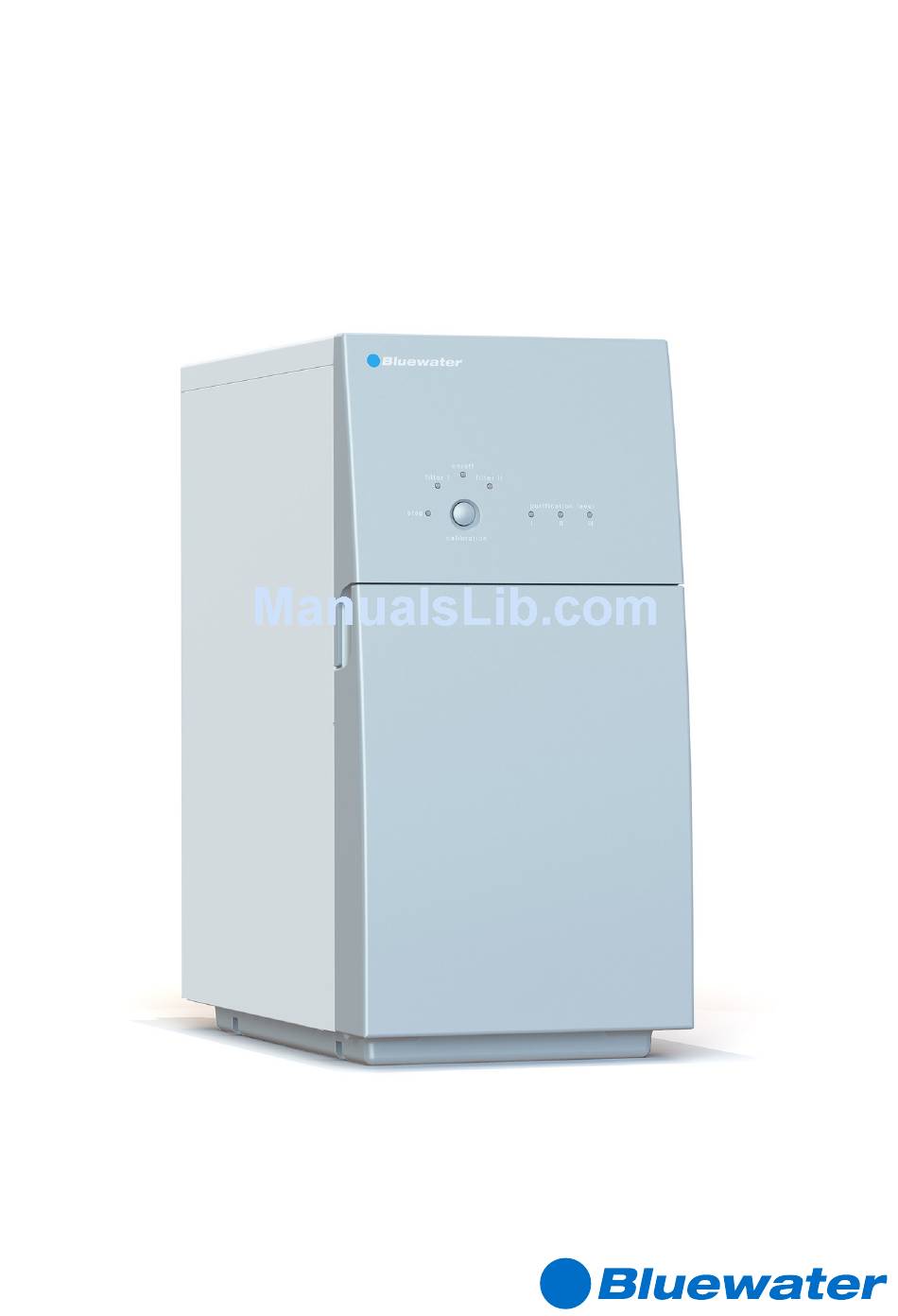

- Page 1 Water purifier Complete User Manual Document No 822901697 Revision BB1619 © Bluewater Group 2016...
-
Page 2: Table Of Contents
Disposal ..............................03 Safety instructions ............................03 Safety information ............................04 PRODUCT OVERVIEW........................05 Models ............................... 05 Pro outside ..............................05 Pro inside..............................07 Move the water purifier ..........................07 SYSTEM OVERVIEW ........................08 System description ............................08 Leak protection system ..........................09 Low pressure protection .......................... -
Page 3: Introduction
INTRODUCTION About this manual This manual contains complete user instructions for the Pro. It gives you the necessary instructions to safely install, operate, do maintenance and do troubleshooting on the device. Original language The original language of this instruction is English. -
Page 4: Safety Information
Do not use Pro without a filter. To do so can cause damage. When Pro is cleaned or put in storage, the filter can be removed. -
Page 5: Product Overview
Control panel Feed water connection with grid filter Front cover Clean water rinse valve (CV-models) Clean water connection Air gap bracket Electrical connection for faucet (optional) Rinse water tube Drain water tubing Pure water tube Power cord © Bluewater Group 2016... -
Page 6: Control Panel
The water purifier is connected to power Off: The water purifier is not connected to power filter I The filter must be replaced. Pro 600: Replace both Combi filters. filter II The filter must be replaced. Pro 600: Replace both Combi filters. stop Flashes/On: Something is wrong, see “Troubleshooting”... -
Page 7: Pro Inside
Figure 4. Pro inside Description Description Base plate Pre-filter II, Pro 600 Combi filter Pre-filter I, Pro 600 Combi filter Reverse osmosis membrane Move the water purifier Always transport the water purifier upright. Install according to “Installation” on page 11. -
Page 8: System Overview
SYSTEM OVERVIEW System description Figure 6. System overview Description Description Water purifier Bracket for drain water tubing Power cord Clean water tubing Feed water tubing Clean water faucet (optional Pro 400 series) Drain water tubing Complete User manual... -
Page 9: Leak Protection System
Low pressure protection If Pro stops because of low pressure, the cause of the low pressure must be removed. If not, the pump can be permanently damaged. Low pressure restart function 0.8-7 bar... -
Page 10: Water Production
Flush when drawing water. After maximum operation time 15 minutes. (Pro 400B must be manually restarted) Water purifier in standby mode. Pro is connected to water and power. Flush is performed every 12 hours, regardless of when clean water was last produced. -
Page 11: Installation
Warning! Discard the packing material. It can cause injury to children if they play with it. Make sure that Pro shows no signs of damage, and that no accessories are missing. Tell the Bluewater dealer about missing parts, damage and other problems. -
Page 12: Position Pro
Position Pro Put Pro in a vertical position on a horizontal surface below the kitchen sink. Make sure that the surface can support Pro Position Pro near the cold water supply, the drain and an earthed electrical supply. • Make sure that it is easy to see the control panel. -
Page 13: Install Clean Water Faucet
Install feed water connection The water purifier is connected to cold water via the feed water tubing. See “Requirements on feed water to water purifier” on page 27. 1/2” - 3/4” Figure 15. Install feed water connection © Bluewater Group 2016... -
Page 14: Install Drain Water Connection
500 mm (20”) 50 mm (2”) 500 mm (20”) Connect water purifier Do not connect the clean water tubing to other drinking water equipment before Pro has been flushed. (3/4”) (3/4”) UK US ZH EU Figure 17. Connect water purifier... -
Page 15: After Installation
After installation When Pro is installed, and after each maintenance, the following procedures must be perfomed before operation. Flush Pro Do not drink the water when the water purifier flushes. It is not safe to use. The water purifier should always be flushed: •... -
Page 16: Calibration
Calibration Do not drink the water that is produced when the water purifier is calibrated. It is not safe to use. If any of the purification level lights I-III does not go out, go through the checkpoints under Flushing and restart the calibration. If the purification level lights I-III do a wandering flashing light, restart the calibration. -
Page 17: Maintenance
The water quality controls the maintenance frequency. If the feed water is of low quality, do maintenance more frequently. Each month Do a check for leaks The tubing connections must be tight! ×6 Figure 21. Check for leaks Repair leaks 10mm (1/2”) Figure 22. Repair leaks © Bluewater Group 2016... -
Page 18: Each 4-6 Months
Frequency depends on water quality and usage! To extend the water purifier lifetime: Descale Pro with 6 month intervals or when the flow is decreased. If Pro has been descaled and the filters have been replaced, but the water flow cannot be restored, contact your Bluewater dealer. - Page 19 ~25 °C 200 g (77 °F) 7 oz 45 s 10 h 30 s 10 min 30 s Figure 24. Descale © Bluewater Group 2016...
- Page 20 Pro 600: change both filters when filter light I or II lights up. If filter II is replaced before the filter II light shows that it is necessary, reset Pro as given in steps 18-20. The filter light will go on and then go out when Pro is started.
-
Page 21: Each Year
Each year Test the water An approved lab must do a test of the water that is cleaned by Pro one time each year, if the feed water has been classed as unfit. Other Clean the grid filter The grid filter in the feed water connection catches larger particles. If the flow is decreased or if Pro makes a noise, the grid filter can be blocked. - Page 22 Use disinfectant to clean the system Disinfectant is harmful! Keep it where children cannot get it. Clean your hands when you have used it. 30 s 400 ml ~25°C °F) 25 ml (NaClO 3.5%) 45 s 30 min Complete User manual...
- Page 23 Put the water purifier into storage if it will not be used for 4 months or more, or if it is to be disconnected from the water and electricity for >5 days. 3+3 l (~0.8+0.8 gal) © Bluewater Group 2016...
- Page 24 40 s -30°C (-22°F) Figure 28. Put into storage Complete User manual...
- Page 25 Reinstall after storage Preserving agent is harmful! Keep it where children cannot get it. Clean your hands when you have used it. Always flush the water purifier after storage. See “Flush Pro” on page 15. 48 h +5°C (40°F) 19 mm (3/4”)
-
Page 26: Technical Information
Purified water flow Sound level earthed rate 230V 225×466×460 mm 29 kg 230V, 50-60 Hz 530 W 3.1 ±0.5 l/min Pro 400B-HR < 60 dB(A) 8.9×18.3×18.1” 64 lbs 120V, 60 Hz 6 Amps 0.8 ± 0.13 gal/min 120V 225×466×460 mm 29 kg... -
Page 27: Requirements On Feed Water To Water Purifier
<1.5 / <0.3 mg/l <1.5 / <0.3 mg/l <1.0 / <0.3 mg/l Manganese Mn <0.3 ppm <0.3 ppm <0.3 mg/l <0.3 mg/l <0.3 mg/l Chlorine Cl2 <1.0 mg/l <1.0 ppm <1.0 mg/l <1.0 ppm <1.0 mg/l © Bluewater Group 2016... -
Page 28: Troubleshooting
TROUBLESHOOTING How to solve simple problems If Pro stops because of an emergency, disconnect it from power and connect it again, or press calibration button to reset the emergency stop. Symptom Cause Solution Filter I must be replaced. See “Replace prefilter” on page 20. - Page 29 The water smells bad Microbial growth in the water because the Flush the water purifier, see “Flush Pro” on page 15. water purifier has not been used for a week Clean the water purifier, see “Use disinfectant to clean the or longer.
- Page 30 Complete User manual...
- Page 32 Bluewater Group Danderydsgatan 11, SE-114 26 Stockholm Sweden Tel: +46-8-564 738 00 info@bluewatergroup.com - www.bluewatergroup.com For a complete list of sales offices and dealers, please visit www.bluewatergroup.com...
