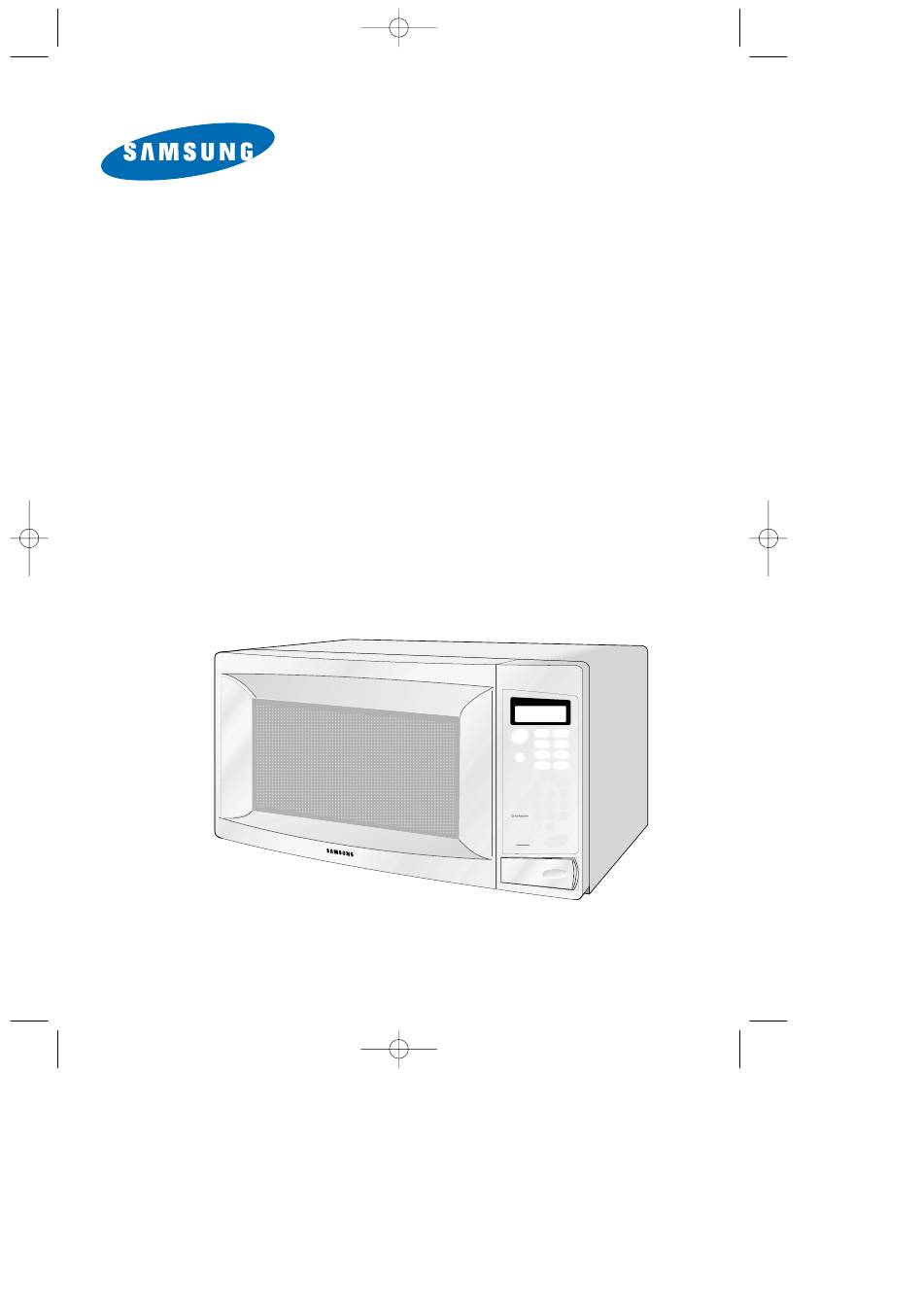

MW7692W/MW7693G
1/17/00 6:13 AM
Microwave
IMPORTANT
IN ORDER TO PREVENT BAD OPERATING
AND AVOID DAMAGES TO THE PRODUCT,
PLEASE READ THIS MANUAL CAREFULLY
BEFORE CONNECTING AND TURNNING-ON
THE APPARATUS. PLEASE ALSO KEEP THIS
MANUAL FOR FUTURE REFERENCES.
Page 1
Oven
Owner's Manual
MW7692W / MW7693G
Comida
Un
Palomitas
dietetica
Minuto +
Comida
Papas
para bebe
Vegetales
Cena
frescos
congelada
Cocinado Suave
Desayuno
Receta
congelado
personalizada
Auto
1.Plato de comida
Recalentado
Auto
2.Guisado
Descongelado
3.Sopa / salsa
1
2
3
Nivel de Potencia
4
5
6
Reloj
7
8
9
0
Mas / Menos
Sonido
Inicio
Pausa
Cancelar
Code No.DE68-00801A

Advertisement

Table of Contents
loading

Related Manuals for Samsung MW7692W

Summary of Contents for Samsung MW7692W

  • Page 1 MW7692W/MW7693G 1/17/00 6:13 AM Page 1 Microwave Oven Owner’s Manual MW7692W / MW7693G Comida Palomitas dietetica Minuto + Comida Papas para bebe Vegetales Cena frescos congelada Cocinado Suave Desayuno Receta congelado personalizada Auto 1.Plato de comida Recalentado Auto 2.Guisado Descongelado 3.Sopa / salsa...
  • Page 2 MW7692W/MW7693G 1/17/00 6:13 AM Page 2 AFETY MPORTANT AFETY RECAUTIONS TO NSTRUCTIONS VOID OSSIBLE When using any electrical appliance, XPOSURE TO basic safety precautions should be XCESSIVE followed, including the following: ICROWAVE NERGY WARNING (a) Do not attempt to operate this oven...
  • Page 3 MW7692W/MW7693G 1/17/00 6:13 AM Page 3 AFETY Important Safety Instructions, continued • Do not cook without the glass tray in place on the oven floor. Food will not cook properly without the • Do not operate this appliance if it has a damaged tray.
  • Page 4 MW7692W/MW7693G 1/17/00 6:13 AM Page 4 AFETY Important Grounding Instructions This appliance must be grounded. In the event of WARNING an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire Do not cut or remove the third (ground) prong for the electrical current.

  • Page 5: Table Of Contents

    MW7692W/MW7693G 1/17/00 6:13 AM Page 5 ONTENTS Your New Microwave Oven ..6 Cooking Instructions ... .16 Checking Parts ..... . .6 Cooking Utensils .

  • Page 6: Your New Microwave Oven

    This oven is a full-featured, easy-to-use appliance built to strict quality stan- dards set by Samsung — the highest in the indus- try. We’re proud to offer you a product that will Place the glass tray on top of the ring so...

  • Page 7: Control Panel Buttons

    MW7692W/MW7693G 1/17/00 6:13 AM Page 7 ICROWAVE OVEN Control Panel Buttons Comida Palomitas dietetica One Minute+(Un Minuto+) p. 10 Minuto + Press once for every minute of cooking Comida at High power. Papas para bebe Instant Cook Buttons p. 9 Instant settings to cook popular foods.

  • Page 8: Operation

    The first time you plug the power cord into an out- play will show: let, or after there has been an interruption in power, the display shows “SAMSUNG SO SIM- PLE.” At this point, you can select a language and weight system for the display. You can choose...

  • Page 9: Using The Instant Cook Buttons

    MW7692W/MW7693G 1/17/00 6:13 AM Page 9 PERATION Using the Instant Cook Buttons Instant Cook Chart Item Weight Remarks Press the Instant Cook button corre- sponding to the food you are cooking Popcorn 3.5 oz • Use one microwave-only bag {Palomitas(Popcorn), for example}. The (Palomitas) 3.0-3.5 oz...

  • Page 10: Using The Un Minuto+ Button

    MW7692W/MW7693G 1/17/00 6:13 AM Page 10 PERATION Using the Un Minuto+(One Minute+) Button This button offers a convenient way to heat food in Use the number buttons to increase the one-minute increments at the High power level. serving size. For example, for three servings, press the“3”...

  • Page 11: Using The Cocinado Suave Button

    MW7692W/MW7693G 1/17/00 6:13 AM Page 11 PERATION Setting and Using the Receta person- Using the Cocinado Suave(Gentle Cook) Button alizada(Custom Cook) Button. This button is for slower, gentler cooking with The Receta personalizada(Custom Cook) button memo- reduced power. rizes the time and power setting for a particular food.

  • Page 12: Auto Descongelado(Defrosting Automatically)

    MW7692W/MW7693G 1/17/00 6:13 AM Page 12 PERATION Auto Descongelado(Defrosting Setting Cooking Times & Nivel de Automatically) Potencia(Power Levels) To thaw frozen food, set the weight of the food and Your microwave allows you to set up to three differ- ent stages of cooking, each with its own time length the microwave automatically sets the defrosting and power level.

  • Page 13: Multi-Stage Cooking

    MW7692W/MW7693G 1/17/00 6:13 AM Page 13 PERATION Setting Cooking Times, continued Using the Mas/Menos(More/Less)Button Some recipes require different stages of cooking at The Mas/Menos(More/Less) button allows you to different temperatures. You can set multiple stages adjust pre-set cooking times. It only works with of cooking with your microwave.

  • Page 14: Adjusting The Volume

    MW7692W/MW7693G 1/17/00 6:13 AM Page 14 PERATION Adjusting the Volume Using the Cronómetro(Kitchen Timer) The Sonido(Sound) button on the microwave allows you to adjust the volume of the microwave’s Use the Number buttons to set the length chime sound. The sound is initially set to its highest of time you want the timer to run.

  • Page 15: Setting The Child Protection Lock

    MW7692W/MW7693G 1/17/00 6:13 AM Page 15 PERATION Setting the Child Protection Lock Demonstration Mode You can lock your microwave oven so it can’t be You can use the Demonstration Mode to see how used by unsupervised children. your microwave oven operates without the oven heating.

  • Page 16: Cooking Instructions

    MW7692W/MW7693G 1/17/00 6:13 AM Page 16 OOKING NSTRUCTIONS Cooking Utensils Recommended Use Not Recommended • Glass jars and bottles — Regular glass is too thin to be used in a microwave, and can shatter. • Glass and glass-ceramic bowls and dishes —...

  • Page 17: Cooking Techniques

    MW7692W/MW7693G 1/17/00 6:13 AM Page 17 OOKING NSTRUCTIONS Cooking Techniques Stirring Adding Moisture Stir foods such as casseroles and vegetables while Microwave energy is attracted to water molecules. cooking to distribute heat evenly. Food at the out- Food that is uneven in moisture content should be...

  • Page 18: Cooking Guides

    MW7692W/MW7693G 1/17/00 6:13 AM Page 18 OOKING NSTRUCTIONS GUIDE for Cooking Meat in Your Microwave • Place meat on a microwave-safe roasting rack in a microwave-safe dish. • Start meat fat-side down. Use narrow strips of aluminum foil to shield any bone tips or thin meat areas.
  • Page 19 MW7692W/MW7693G 1/17/00 6:13 AM Page 19 OOKING NSTRUCTIONS GUIDE for Cooking Seafood in Your Microwave • Cook fish until it flakes easily with a fork. • Place fish on a microwave-safe roasting rack in a microwave-safe dish. • Use a tight cover to steam fish. A lighter cover of wax paper or paper towel provides less steaming.

  • Page 20: Auto Defrosting Guide

    MW7692W/MW7693G 1/17/00 6:13 AM Page 20 OOKING NSTRUCTIONS AUTO DEFROSTING GUIDE • Follow the instructions below when defrosting different types of food. Amount Procedure Food Start with the food placed fat side down. After each stage, turn Roast Beef, Pork 2.5-6.0 lbs.

  • Page 21: Recipes

    MW7692W/MW7693G 1/17/00 6:13 AM Page 21 OOKING NSTRUCTIONS Recipes Beef and Barley Stew Broccoli and Cheese Casserole 1 1/2 lbs. beef stew cubes, cut into 1/2-inch pieces 1/4 cup butter or margarine 1/2 cup chopped onion 1/4 cup chopped onion 2 Tbs.
  • Page 22 MW7692W/MW7693G 1/17/00 6:13 AM Page 22 OOKING NSTRUCTIONS Recipes Warm Potato Salad Black Bean Soup 1 cup chopped onion 2 lbs. small red potatoes, cut into 1/2-inch pieces 1 clove garlic, minced 4 slices bacon (uncooked), cut into 1/2-inch pieces 2 cans (15 oz.

  • Page 23: Appendix

    If there was a power outage, the time • If steam accumulates inside or outside the oven indicator will display “SAMSUNG SO SIMPLE” door, wipe with a soft cloth. Steam can accumu- Reset the clock and any cooking instructions.

  • Page 24: Specifications

    MW7692W/MW7693G 1/17/00 6:13 AM Page 24 PPENDIX Specifications Model Number MW7692W / MW7693G 1.4cuft Oven Cavity 10 power levels, including defrost Controls 99 minutes, 99 seconds Timer 120 VAC, 60 Hz Power Source 1100 Watts Power Output 21 7/8 ”(W) X 12 5/16 ”(H) X 17 9/32 ”(D) Outside Dimensions 14 3/4 ”(W) X 9 27/32 ”(H) X 16 7/16 ”(D)
  • Page 25 (POWER LEVEL) and use the number buttons to enter the power level. 3. Press INICIO(START) to begin cooking. ELECTRONICS IMPORTER : SAMSUNG ELECTRONICS MEXICO S.A. DE C.V. SATURO NO.44 COL. NUEVA IND. VALLEJO GUSTAVO A. MADERO C.P. 07700 MEXICO, D.F.
