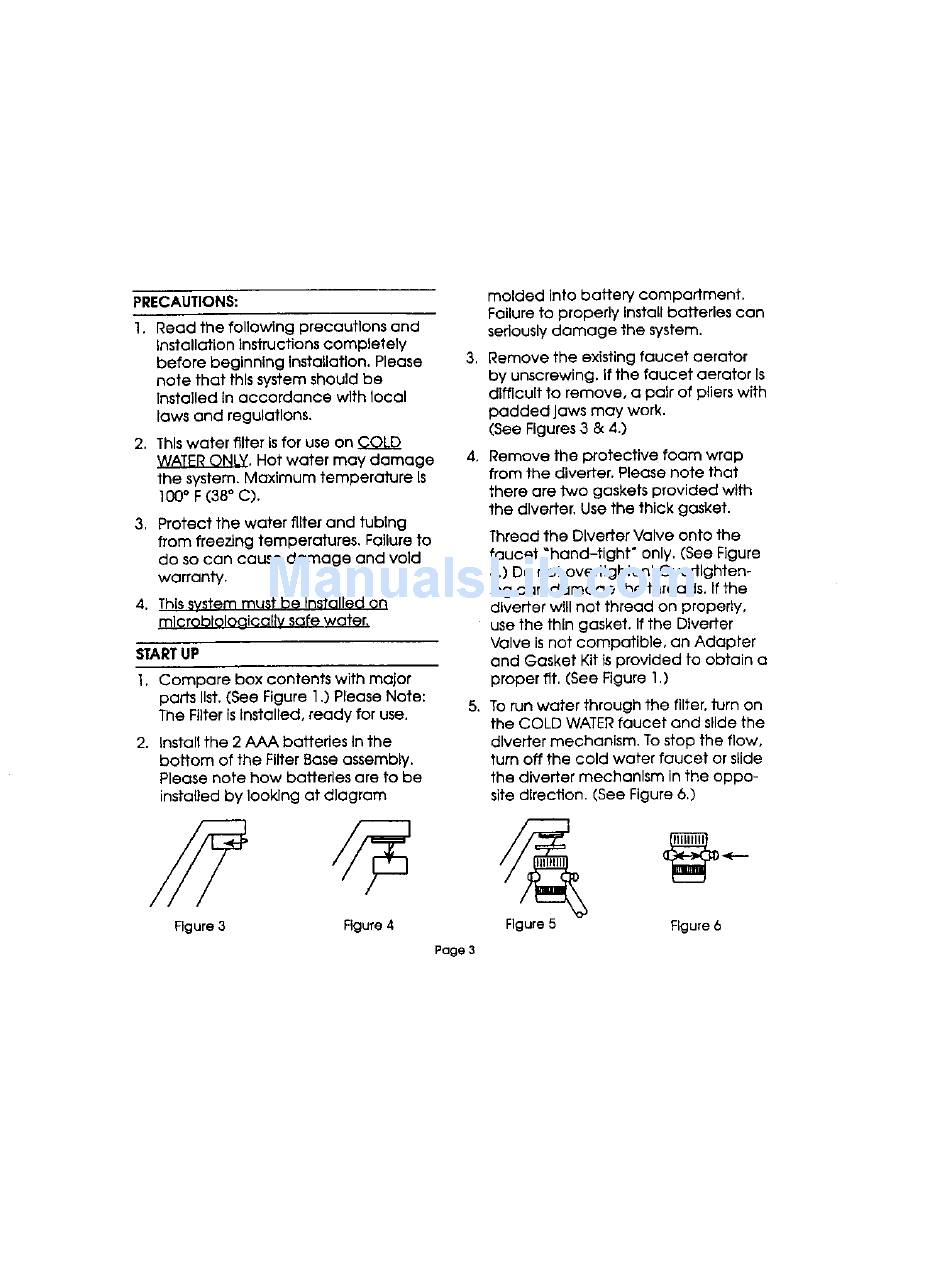

PRECAUTIONS:
1. Read the following precautions and
Installation instructions completely
before beginning InstaUatlon. Please
note that this system should be
Installed In accordance with local
laws and regulations.
2, This water filter is for use on COLD
_._, Hot water may damage
the system. Maximum temperature Is
100° F (38 ° C).
3, Protect the water filter and tubing
from freezing temperatures. Failure to
do so can cause damage and void
warranty.
4. This system must be installed on
mlcrabloloaicallv safe water.
STARTUP
1, Compare box contents with major
par_s list. [See Figure 1.) Please Note:
The Filter is installed, ready for use.
2. Install the 2 AAA batteries In the
bottom of the Filter Base assembly,
Please note how batteries are to be
insta{led by looking at diagram
Figure 3 Figure 4
3,
4,
B.
Page 3
molded into battery compartment,
Failure to properly InstaLlbatteries can
seriously damage the system,
Remove the existing faucet aerator
by unscrewing, if the faucet aerator Is
difficu[t to remove, a pair of pliers with
padded Jaws may work.
(See Figures 3 & 4.)
Remove the protective foam wrap
from the diverter. Please note that
there are two gaskets provided with
the dlverter. Use the thick gasket.
Thread the Dlverter Valve onto the
faucet "hand-tight* only, (See Figure
B.) Do not overtlghten! Overtlghten-
ing can damage the threads. If the
dlverter will not thread on properly,
use the thin gasket, If the Diverter
Valve is not compatible, an Adapter
and Gasket Kit is provided to obtain a
proper fit, (See Figure 1.)
To run water through the filter, turn on
the COLD WATER faucet and slide the
dlverter mechanism. To stop the flow,
turn off the cold water faucet or slide
the diverter mechanism in the oppo-
site direction. [See Figure 6,)
Figure 5 Figure 6
