The lightning flash with arrow head symbol within an equilateral triangle is intended to alert the
user to the presence of an insulated DANGEROUS VOLTAGE within the product's enclosure that
may be of sufficient magnitude to constitute an electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying
the appliance.

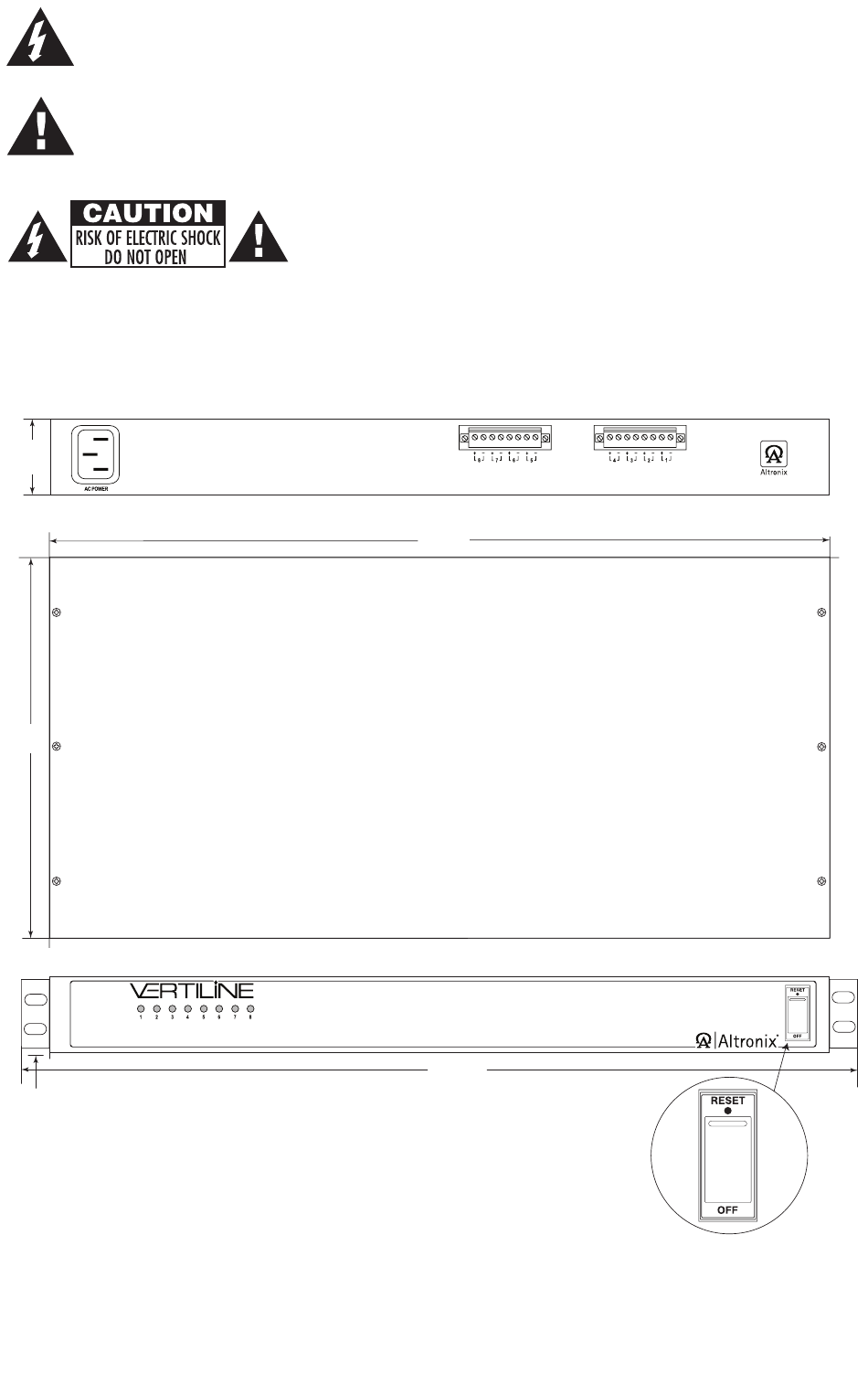

1U EIA 19" Rack Mount Chassis Mechanical Drawing and
1.625"
41.3mm
8.5"
216mm
0.75"
19.05mm
Fig. 3
Power switch with built-in circuit breaker:
- 6 -
CAUTION: To reduce the risk of electric shock do not open enclosure.
There are no user serviceable parts inside.
Refer servicing to qualified service personnel.
Dimensions (H x W x D):
1.625" x 19.125" x 8.5" (41.3mm x 486mm x 216mm)
OFF position - Switch not illuminated. Outputs not powered.
RESET (ON) position - Switch illuminated. Outputs powered.
Circuit breaker tripped - Switch not illuminated.
Power LEDs on faceplate are not illuminated.
Outputs not powered.
To reset circuit breaker set power switch to the ON (RESET)
position (Fig. 3, pg. 6).
REAR
17.625"
447.7mm
TOP & BOTTOM
FRONT
19.125"
486mm
(ON)
Vertiline3D / VertiLine6D
