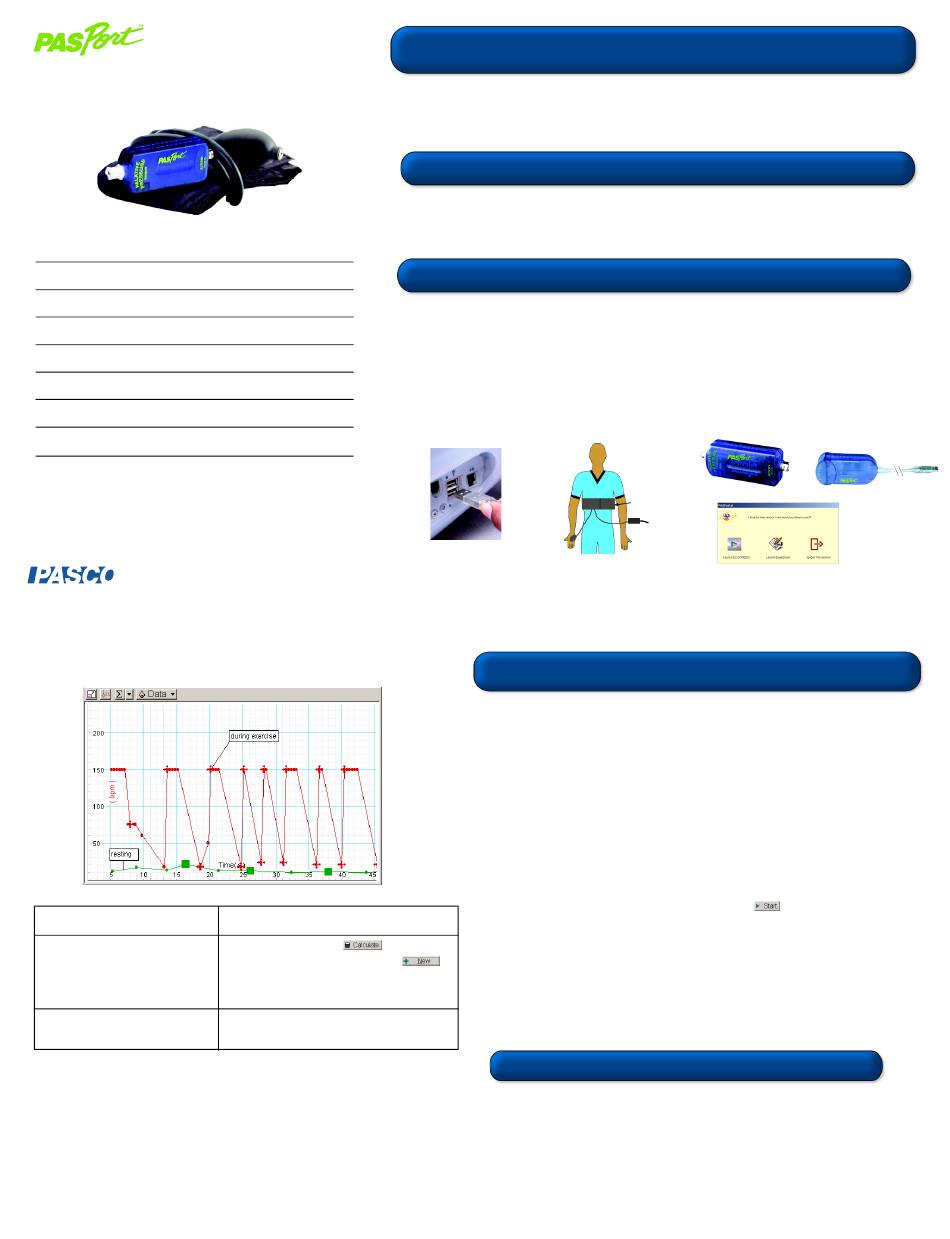

PASCO PASPort PS-2133 Quick Start

Respiration Rate Sensor
PS-2133
Sensor Specifications
Sensor Range:
Resolution:
Accuracy:
Repeatability:
Maximum Sample Rate:
Operating Temperature:
Relative Humidity Range:
The specifications apply to the PS-2114 Relative Pressure
Sensor, which is part of the Respiration Rate Sensor.
*
Note: Condensation on the sensor may reduce the sensor's
measurement accuracy.
® 800-772-8700 • 916-786-3800 • techsupp@pasco.com • www.pasco.com
Respiratory Rate: Resting vs. Exercise
DataStudio/DS Lite Tasks:
Create an equation for meas-
uring respiration rate in
*
DataStudio:
Record the respiration rate
and/or waveform:
*
In the respiration activity, the respiration equation is already created for you.
**
Use the Special button and menu to select the period function and replace the
(10,10, x) values with (30,30,5). Under Variables, click on Data Measurement;
then click on Relative Pressure and OK. Click the Accept button to accept the
equation.
0 to 10 kPa
0.001 kPa
±
0.5 kPa
0.01 kPa
20 samples per second
0–40°C
*
5–95%, non-condensing
Click on the Calculator ( ) button to open
the Calculator dialog. Click the New (
button. Type in respiration rate=60/period
**
(30,30,5 relative pressure).
From the Data list, drag the respiration equation
and Relative Pressure icon to a display.
Resp iration Quic k Start
The PS-2133 Respiration Rate Sensor measures breath rate in one-minute cycles.
The Respiration Rate Sensor includes a Relative Pressure Sensor and inflatable belt,
which wraps around the chest. As the person breathes, respiration rate and pressure
changes can be displayed in a graph on a computer.
A d d i t i o na l E qui p me n t N ee d e d
™
• PASPORT USB interface (USB Link (PS-2100) with USB-compatible computer or a
PS-2000 Xplorer)
®
• DataStudio software, version 1.8 or later
E qu i p m en t S e t up
1. Connect the USB Link to a USB port on your computer or to a USB hub. (If using the
Xplorer as an interface in the classroom, connect the Xplorer cable to the USB port on
your computer.)
2. Wrap the Respiration belt below your rib cage and connect the Respiration Belt tubing to
the Relative Pressure Sensor. (See card 2A for proper instructions and safety information.)
3. Connect the Relative Pressure Sensor to the USB Link.
4. The software launches when it detects a PASPORT
1
R e s p i ra ti o n Ac t i v it y
1. Wrap the respiration belt around your rib cage. (Follow the instructions for
"Wearing the Respiration Belt" on card 2A.)
2. Use the quick-release connector on the end of the belt's tubing to connect the
belt to the Relative Pressure Sensor.
3. Connect the Pressure Sensor to a PASPORT interface.
4. When the PASPORTAL window opens, select the Respiration workbook or
configuration file. [Note: If you don't have have version 1.8 of DataStudio,
launch DataStudio, create an experiment, and follow the instructions in the
table to the left for creating the respiration rate equation.]
5. Ensure the valve to the squeeze bulb is closed. Inflate the belt until the belt
fits snugly against your chest. (Do not overinflate! Please read the safety
warning and instructions on card 2A.)
6. On page 4 of the workbook, click the Start (
respiration rate. Collect respiration rate data with (a) the student sitting,
standing, and lying down and (b) before and after exercise.
7. (Optional): Remove the belt. Collect pressure data with the student breathing
)
through a plastic tube connected to the Pressure Sensor. (See card 2B).
8. Analysis: Compare the change in respiration rate with different body
positions and before and after exercise. Examine pressure changes for
inspiration and expiration.
*
Other Experiment Suggestions
• Respiration rate vs. heart rate
• Respiration rate and body temperature (cold vs. hot environments)
• Respiration rate and pressure changes with different types of
exercise (aerobic, weight lifting, etc.)
• Respiration rate and pressure changes (breathing vs. breath holding
vs. forced expiration)
• Respiration rate at sea level vs. altitude
sensor. Select a point of entry.
TM
2
4
) button to record the
CARD1A
3
012-08370A
CARD 1B
