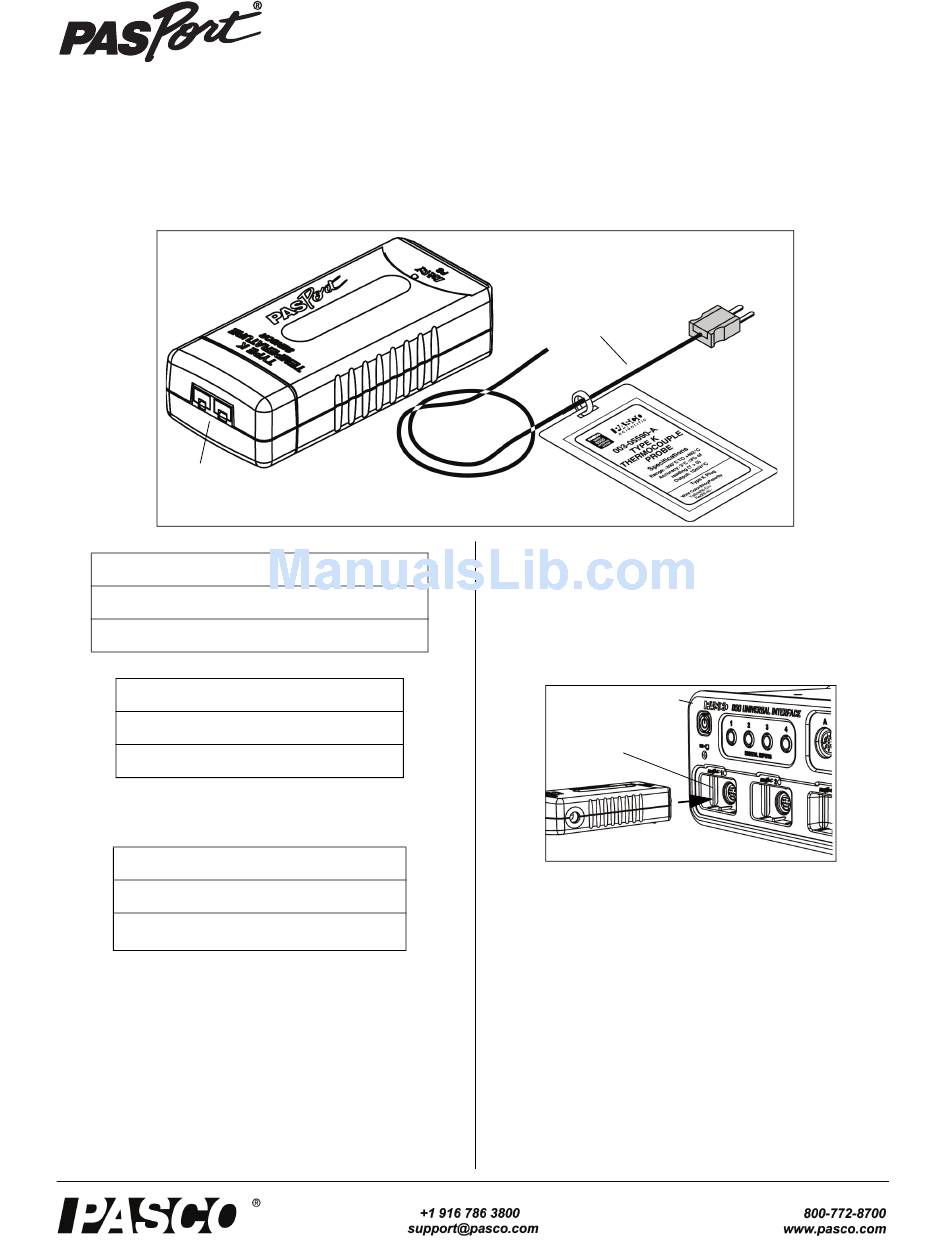

PASCO PASPORT PS-2134 Instruction Sheet

Type-K Temperature Sensor
Type-K Port
.
Included Items

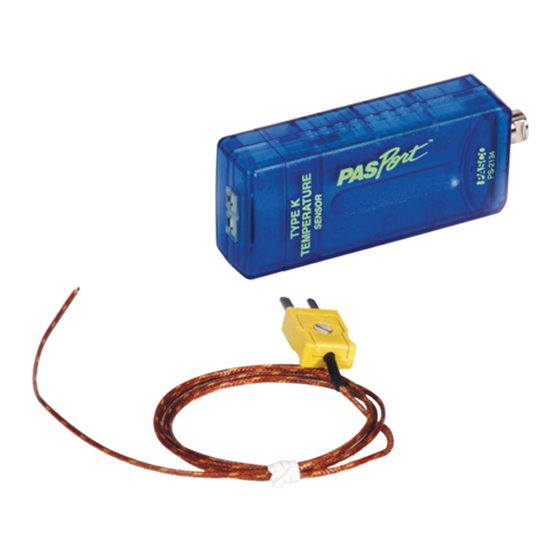

Type-K Temperature Sensor
Type-K Thermocouple Probe (PS-2155)
Required Items*
PASCO Interface
PASCO Data Acquisition Software
*See the PASCO catalog or the PASCO web site at www.pasco.com
for more information.
Recommended Items*
Sensor Extension Cable (PS-2500)
®
Teflon Sensor Covers (CI-6549)

Introduction

The PS-2134 Type-K Temperature Sensor measures tem-
perature from a "Type-K" thermocouple probe. The tip of the
probe has a temperature rang of -200°C to 1000°C. The insu-
lation on the probe can withstand temperatures between
-73°C and 482°C.
The sensor is designed to work with a PASPORT-compatible
interface (such as the PASCO 850 Universal Interface) and
PS-2134
Type-K Temperature
Probe
PASCO data acquisition software (such as PASCO Cap-
stone) to measure temperature.

Setup the Sensor

• Plug the sensor into one of the PASPORT input ports of
a PASCO PASPORT-compatible interface.
PASPORT
Input Port
Sensor
NOTE: If more distance is needed between the sensor and
the interface, plug the sensor into a Sensor Extension Cable,
and then plug the cable into the interface.
• Plug the "Type-K" thermocouple probe into the sensor.
• Start the PASCO data acquisition software.

Using PASCO Capstone Software

• Click the "Hardware Setup" icon in the Tools palette to
open the "Hardware Setup" panel. Confirm that the sen-
sor's icon appears with the interface's icon.
• Click one of the display templates in the Capstone work-
book page, or double-click an icon in the "Displays"
palette to open a data display.
Instruction Sh eet
0 1 2 - 0 8 4 5 3 C
Interface
