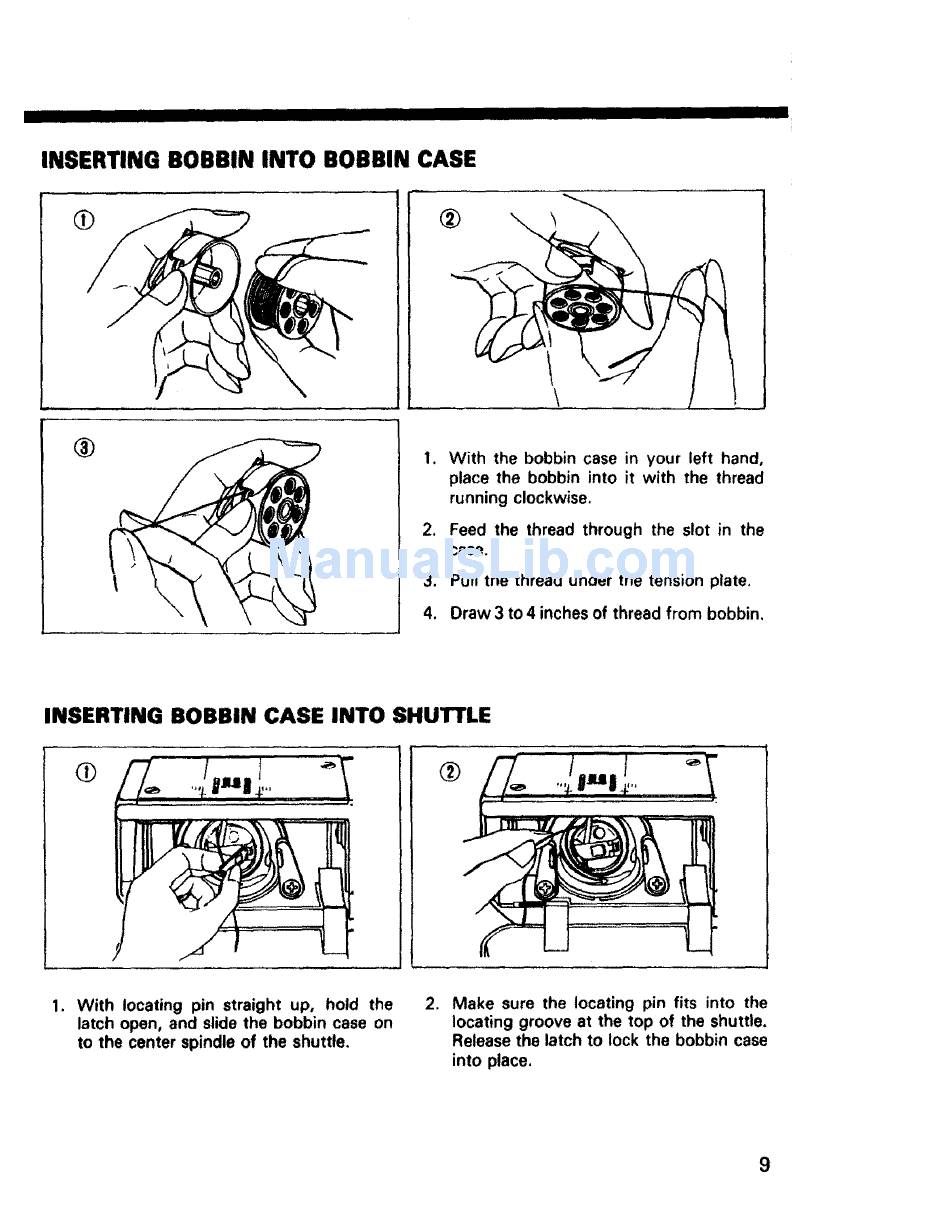

INSERTING BOBBIN INTO BOBBIN CASE
I HI I II
®
,
*
3.
4.
With the bobbin case in your left hand,
place the bobbin into it with the thread
running clockwise.
Feed the thread through the slot in the
case.
Pull the thread under the tension plate.
Draw 3 to 4 inches of thread from bobbin,
INSERTING BOBBIN CASE INTO SHUTTLE
i
With locating pin straight up, hold the
latch open, and slide the bobbin case on
to the center spindle of the shuttle.
.
Make sure the locating pin fits into the
locating groove at the top of the shuttle.
Release the latch to lock the bobbin case
into place.
9
