SureShot IntelliShot Operation Manual

SureShot IntelliShot Operation Manual

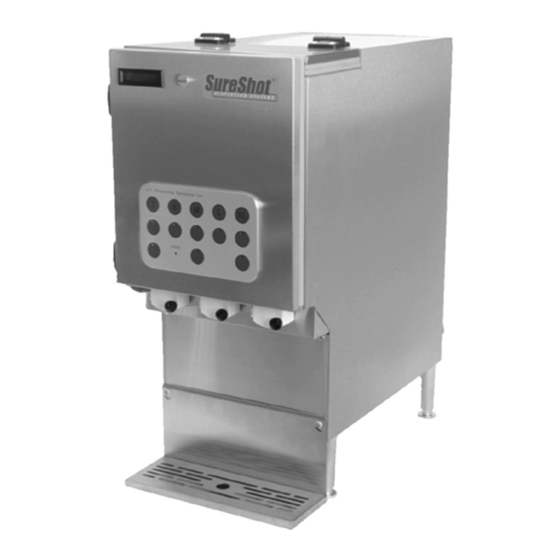

Refrigerated liquid dispensers
Hide thumbs Also See for IntelliShot:
Table of Contents

Advertisement

Refrigerated
Liquid Dispensers
Operations Manual
D­19­006 Rev D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IntelliShot and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SureShot IntelliShot

  • Page 1 Refrigerated  Liquid Dispensers  Operations Manual  D­19­006 Rev D...
  • Page 2: Dispenser Types

    AC320­FP  AC220­FP  AC330­PC  IntelliShot by SureShot  FlexoShot by SureShot  UniShot by SureShot  Portion Controlled  Self­Serve  Self­serve, portion controlled  AC110­PC  1 product  AC110­SS  1 product  AC110­PC  1 product  AC120­PC  1 product  AC120­SS  1 product  AC120­PC  1 product  AC210­PC  2 products  AC210­SS  2 products  AC210­PC  2 products  AC220­PC  2 products  AC220­SS  2 products  AC220­PC  2 products  AC220­FP­01  2 products  AC220­FP­02  2 products  AC230­PC  2 products  AC230­PC ...
  • Page 3: Table Of Contents

    Table of Contents  RESET  Dispenser Types  2  Specifications  2  To Reset the Power on the Dispenser  27  Dispenser Components  4  Overview  5  Safety Precautions  5  MAINTENANCE  Inspection for Damage  6  General Maintenance  27  Uncrating the Dispenser  6  Reshipment  6  Electrical Requirements  6  TROUBLESHOOTING  Servicing – Electrical  6  No power at the plug  30  Servicing – Refrigeration  6  Dispenser will not turn on  30  Installation of the Dispenser  7  Dispenser will not dispense product  30  Clean Before First Use  7  Dispenser is not dispensing proper amount ...
  • Page 4: Dispenser Components

    LCD  Reset  Button  Panel  Power  Indicator  Dispense  Valve  Power Switch  Circuit Breaker  Valve Cover  (not shown)  Splash  Guard Catch  Tray  Dispense Button  Dispense Lever  DISPENSER COMPONENTS  4 ...
  • Page 5: Overview

    LIQUID DISPENSERS OPERATIONS MANUAL  Please Read this Manual NOW…  Retain it for Future Reference  SureShot Dispensing Systems® Liquid Dispensers provide refrigerated liquids such as cream,  whole milk, skim milk, juices, liquid egg and concentrates in automatically controlled portions or  in manually selected portions. Our factory has pre­configured your dispenser to deliver product  quantities specified by your company.  Product selections are made using touch buttons on the  front panel.  Each button is pre­set independently to dispense a specified amount of refrigerated  product in accurate, portion­controlled quantities using our unique, state­of­the­art  microprocessor technology. The product is stored in a sanitary, refrigerated compartment within  the dispenser.  IntelliShot – advanced portion control refrigerated liquid dispensers  UniShot – self­serve portion control refrigerated liquid dispensers  FlexoShot – manual operation refrigerated liquid dispensers  Dispensers are manufactured in a variety of models: (See page 2)  PC ­  Portion Controlled ­ to dispense one, two or three products in predetermined quantities  SS ­  Self­Serve ­ to dispense one, two or three products by levers to deliver quantity desired  FP ­  Fill in Place ­ to dispense two or three products in portion­controlled quantities or self­  serve dispensers that may be refilled in place on your shelf  Operating the dispenser is a simple two­step process:  For PC and FP Dispensers:  1.  Place cup under the product delivery tube.  2.  Press buttons for the desired quantity and product.  For SS Dispensers:  1.  Place cup under the product delivery tube.  2.  Press lever to deliver product quantity you desire.  Safety Precautions · Always plug the dispenser into an approved electrical outlet. The dispenser includes a microcontroller and must be operated on grounded electrical  · wiring at all times. Unplug the dispenser from its electrical source before servicing. · Do not immerse the dispenser in water. · Observe all safety precautions with this dispenser that you would with any electrical ...
  • Page 6: Inspection For Damage

    INSPECTION FOR DAMAGE  When you receive the dispenser, inspect the exterior of the shipping container for damage.  Note  any damage in detail.  Uncrate the dispenser at once (see instructions below).  Examine the  dispenser for damage.  Report any damage to the transportation company immediately.  File a  claim for damages promptly.  Your immediate inspection protects you against loss since  SureShot Dispensing Systems® is not responsible for damages incurred during shipment.  UNCRATING THE DISPENSER  WARNING:  Always lift the dispenser from the bottom. Do not lift the dispenser by the door.  To uncrate:  1.  Make sure the box is positioned with the arrow pointing upward.  2.  Cut the packing straps at the top of the box.  3.  Lift the top tray off the box.  4.  Lift the center sleeve off the box.  5.  Remove the protective corner inserts from the bottom tray.  6.  Lift  the  dispenser  by  its  bottom  out  of  the  tray.  Always  use  two  people  to  lift  the  dispenser. ...
  • Page 7: Installation Of The Dispenser

    CLEAN BEFORE FIRST USE OF THE DISPENSER · Make sure you clean the dispenser thoroughly.  See Cleaning Instructions for the Exterior  of the Dispenser and the Dispenser Components on pages 18­23. All dairy tanks and lids must be cleaned before use. See page 22.  · WARNING:  Before starting the dispenser, make certain that all Installation instructions have  been followed and that the dispenser has been sitting upright for a minimum of 3 hours.  STARTING THE DISPENSER  To start the dispenser:  1.  Plug the power cord into the proper electrical outlet.  2.  Turn the Power Switch “ON”.  The power switch is located at the lower left of the  dispenser.  Make sure the dispenser door is closed.  Push one of the product buttons on the front panel and listen to hear the valve open and  close.  This confirms that the dispenser is operating.  The button panel on the front of most  models of dispenser has a power LED which glows green when the dispenser is on.  3.  Allow the dispenser to run empty for one hour to achieve a cold temperature before  placing product containers in the dispenser. The temperature control has been pre­set at  the factory.  You can feel the cold temperature by placing your hand on the top or back  wall of the refrigeration compartment.  4.  If the dispenser does not appear to be getting cold, check to make sure that it is plugged  in and that the power source is active.  If the dispenser still does not operate, immediately  call the SureShot Dispensing Systems® Technical Assistance Center at 1­888­777­9990  or 1­902­865­9602. 7 ...
  • Page 8: Loading The Dispenser

    LOADING THE DISPENSER Ensure the dispenser has achieved proper operating temperature by running empty for  · one hour before loading product to be dispensed. Product being placed inside the refrigeration compartment should be cooler than 41º F or  · 5ºC.  Some jurisdictions require dairy products to be dispensed from original dairy­filled  containers.  The product may be transferred from the original dairy­filled containers into  clean and sanitized tanks to which delivery tubes are attached.  The filled tanks are placed  in the refrigerated product compartment. Sanitize your hands or wear clean gloves to load the dispenser.  · SureShot Dispensing Systems® Liquid Dispensers are manufactured with four delivery systems:  Bags:  The product is supplied in sanitary pre­packaged bags with attached delivery  tubes.  The bags are placed in product cases that are placed within the refrigerated  product compartment.  Bag in Box:  The product is supplied in sanitary pre­packaged bags in boxes that fit in the  refrigerated product compartment.  Tanks:  The product may be transferred from the original dairy­filled containers into clean  and sanitized tanks to which delivery tubes are attached.  The filled tanks are  placed in the refrigerated product compartment.  Stainless steel and plastic tanks  are available.  Fill in Place:  Sanitized tanks may be refilled without removing them from the dispenser.  LOADING: Product Bags  Sanitize your hands or wear clean gloves to load the dispenser.  1.  Place the bagged product in the product case  provided with the dispenser.  Make sure the bag  fitment is positioned so the product delivery tube  is inserted through the opening at the bottom  front of the case and is perpendicular to the  dispensing valve. ...
  • Page 9 9.  While holding the valve door closed with one  hand, tighten the knob­screw in a clockwise  motion until the door is snug.  Do not over­  tighten the screw.  10.  Close the refrigerated product compartment  door.  11.  Squeeze the product delivery tube just below the  valve with all fingertips.  12.  PC Dispensers:  While squeezing the tube, press  the “small” product quantity button on the front  door button panel once only.  This will cause the  valve to operate once and relieve pressure in the  tube.  Cut Tube  SS Dispensers:  While squeezing the tube, hold  the lever down to relieve pressure in the tube.  13.  Use sharp scissors or a sharp knife to carefully  cut the product delivery tube at a 45° angle at a  maximum length of 5/8” from the bottom of the  valve block.  Discard the cut portion of the tube.  The dispenser is ready for use. 9 ...
  • Page 10: Loading Bag In Box

    LOADING:  Bag in Box Product is supplied in a sanitary prepackaged bag in a box that fits into the refrigerated  · product compartment of the dispenser. · Sanitize your hands or wear clean gloves to install the bag in box and delivery tube.  1.  Open the door to the refrigerated compartment.  2.  Open the valve door by unscrewing the black  knob in a counter­clockwise motion to loosen  the screw.  3.  Load the bag in box dairy product into the  refrigerated product compartment on the  Product Box Ramp, with the product delivery  tube facing out to the front and centered in the  dispensing valve.  4.  Make sure there are no kinks or twists in the  product delivery tube.  5.  Align the product delivery tube in the central  vertical groove of the valve block.  Do not pull  or stretch the product delivery tube.  6.  Close the valve door, making sure the product  delivery tube is in the vertical groove and is not  kinked or pinched.  7.  While holding the valve door closed with one  hand, tighten the knob­screw in a clockwise  motion until the door is snug.  Do not over­  tighten the screw.  8.  Squeeze the product delivery tube just below  the valve with all fingertips.  9.  PC Dispensers:  While squeezing the tube, ...
  • Page 11: Loading Product Tanks

    LOADING: Product Tanks All product tanks must be cleaned properly, sanitized with an  · approved sanitizing solution according to the manufacturer’s  specifications, and air­dried before they are loaded into  dispensers.  Follow cleaning instructions on page 22. · Tanks are to be loaded into the dispenser with the power  switch ON. Tanks should be filled with chilled product before they are  · loaded into the dispenser. Fill to the FULL level with product  chilled to 41°F (5°C) or less. · See page 12 for Fill in Place dispensers.  1.  Sanitize your hands or wear clean gloves to install product  tank, tank cover, and delivery tube.  2.  Install the dispensing tube onto the tank spout.  To maintain  sanitation, do not cut the tube until you are ready to attach it to  the tank.  Remove the plastic film covering the tube.  Cut the  tube smoothly, with no jagged edges.  Save the other half of  the tube for another tank.  Push the cut end of the tube onto  the outlet spout at the bottom front of the product tank.  Push  the tube all the way to the top of the spout. Attach a new dispensing tube every time the tank is  · cleaned.  3.  Open the product compartment door.  4.  Open the product dispensing valve door by turning the knob­ ...
  • Page 12: Loading Fill In Place Tanks

    LOADING: Fill in Place tanks  To Fill or Refill Tanks in Place:  1.  Open the front door of the dispenser.  2.  Flip up the access door on the top of the dispenser to  gain access to the tank lid.  3.  Open the lid on the tank to be filled.  4.  Fill or Refill the tank to any desired level with product  chilled to 41°F / 5°C or less.  5.  Close tank lid.  6.  Close the top door.  7.  Close the dispenser door.  8.  Reset: see below  Portion­Control Fill­in­Place Dispensers:  RESET after refilling tanks  To Reset:  1.  Select the tank that has been refilled by pressing  the product selection button for that tank (e.g.  cream) on the button panel.  2.  Press the RESET button next to the LCD Display.  Continue to press the RESET button until the LCD  Reset Display matches the fill level on the tank (0.5 gallon  increments).  NOTE: · The reset operation must be completed within 3 seconds of selecting the product button.  Every press of the RESET button places the timeout feature back to 3 seconds, allowing  time to cycle through to the correct level of refill.  A beep is heard with each press of the  RESET button.  When the selected product button’s LED is extinguished, the new refill  level is stored in memory.  By pressing the button repeatedly, the refill level will cycle  through the allowable 0.5 gallon increments. Low tank level is indicated by the slow flashing of the corresponding LED on the button ...
  • Page 13: Operating Instructions Portion Control Dispensers

    OPERATING INSTRUCTIONS – Portion­Controlled Dispensers · Make certain all initial Set­Up instructions have been followed before operating the  dispenser. The product and volume to be dispensed are selected by pressing buttons on the Button  · Panel on the front door of the dispenser. · Select buttons as required.  Size Selection  Power Indicator Light  Optional Volume Selection  LED – Red Indicator Light  Product Selection Button Panel  To Dispense Product:  1.  Place cup under product delivery tube.  2.  Press button on bottom row to select product to be dispensed.  3.  Press button on middle row to select an optional volume, if required, e.g. for a specialty  drink.  4.  Press button on top row to select the product size to be dispensed.  NOTE: Most Dairy Dispenser models default to coffee settings. · · Product selections must be made in this order:  1.  Bottom Row – Select Product to be dispensed: e.g. milk, cream, skim  2.  Middle Row –  Select Specialty Product:  these are modifier buttons to dispense  optional volumes that make specialty drinks to customer specifications  3.  Top Row – Select Size of portion to be dispensed:  X – extra portion/top up, S – small, M – medium, L – large, XL – extra large  Select Buttons:  1. ...
  • Page 14: Button Panels

    BUTTON PANELS  SureShot Dispensing Systems® dispensers provide product when selection buttons on the front  door of the dispenser are pushed.  Portion­Controlled Self­Serve Dispensers:  Push button to deliver 1 product in specified size  Push button to deliver 2 products in specified size  Push button to deliver up to 3 products, e.g.  whole milk, cream, skim milk  Portion­Controlled Dispensers – 1 product:  Push button to dispense one of 3 sizes:  small  medium  large  Push button to dispense one of 4 sizes:  small  medium  large  extra­large  Portion­Controlled Dispensers – 1 product ­ Dual Volumes:  Push buttons to dispense one of 4 sizes:  1.  Top Row: small     medium     large     extra­large  OR Push buttons to dispense one of 4 other sizes  1.  Bottom button, then  2.  Top Row: small     medium     large     extra­large  Portion­Controlled Dispensers – 2 products:  1.  Bottom Row: Select Product to be dispensed, e.g. whole  milk, cream  2.  Top Row:  small, medium, large, extra large  Portion­Controlled Dispensers – 2 products – Dual Volumes:  1.  Bottom Row: Select Product to be dispensed, e.g. whole  milk, cream  2.  OPTIONAL Bottom Center Button for 4 other sizes  3. ...
  • Page 15: Indicator Lights

    Portion­Controlled Dispensers – Multiple Combinations:  1.  Bottom Row: Select Product, e.g. whole milk, 2%  milk, cream  2.  Middle Row: add optional volume for specialty  products, e.g. latté, cappuccino, espresso  3.  Top Row: Select Size: X, S, M, L, XL  Portion­Controlled Dispensers – Multiple Combinations:  1.  Bottom Row: Select Product, e.g. whole milk,  skim milk, cream  2.  Middle Row: add optional volume for specialty  products, e.g. latté, cappuccino, espresso  3.  Top Row: Select Size: X, S, M, L, XL  RED INDICATOR LIGHT  The red indicator light (LED) at the top of the dispense buttons indicates which product tank you  have selected to dispense product.  For dispenser models with Red Indicator Lights, the following options apply: When that LED is flashing, the volume in the product tank is getting low and the product  · will soon need refilling or replacement. · If that LED is solid red, the tank is out of product, or is locked out for cleaning.  NOTE: Not all dispensers have LEDs. It is an optional feature and is not available on all  · dispensers.  POWER INDICATOR LIGHT  The Power Indicator Light – a red LED labeled “Power” – glows red to indicate that the dispenser  power switch is ON.  Note:  not all dispensers have a Power Indicator Light. 15 ...
  • Page 16 OPERATING INSTRUCTIONS – Self­Serve DISPENSERS Make certain all initial Set­Up instructions have been followed before operating the  · dispenser. The product and volume to be dispensed are selected by pressing levers on the front of  · the dispenser. Dispensers deliver one or two or three products.  · To Dispense Product:  1.  Place cup under product delivery tube for product desired.  2.  Press lever down and hold until desired volume is dispensed.  Manually Operated Dispensers (Self­Serve):  One product:  1.  Place cup under delivery tube  2.  Press lever down and hold for desired  amount  Two products:  1.  Place cup under desired delivery tube  2.  Press lever down and hold for desired  amount  Three products:  1.  Place cup under desired delivery tube  2.  Press lever down and hold for desired  amount 16 ...
  • Page 17: Lcd Display

    Temperature:  Continuously shows the internal temperature status of the refrigerated product compartment in  Celsius or Fahrenheit degrees, at your company’s specifications. The display changes every 3  seconds.  Examples:  37F  37 degrees Fahrenheit  (blank)  refrigeration system off  refrigeration system on  DEF  defrost cycle in progress  Operation:  Press the button to Select Product.  The LCD shows the operational status of that product tank or  case:  Display  Operational Status  SureShot  37 F  Indicates the dispenser is ready to dispense  and the internal compartment temperature is 37°Fahrenheit  Case Low  Dispensers with Low­Level Indicators will display this message to  Tank Low  alert users that the product volume in the tank or case is low and will  soon need to be refilled or replaced.  Product may be dispensed while product is low.  Case Empty  The product case or tank selected is empty and cannot dispense  Tank Empty  product  TR1  If the valve door is opened and closed, the dispenser resets the  TR2  product level for the case or tank dispensed by that valve.  This  TR3  display shows that the level has been reset for the tank/case  displayed. ...
  • Page 18: Recommended Cleaning Schedule

    CLEANING  Do not spray any liquid, such as a cleaner, in or around the valve area.  Liquid could damage electrical components located behind the valve.  RECOMMENDED CLEANING SCHEDULE:  DISPENSER PART  FREQUENCY  SEE PAGES  Catch Tray  Daily  18  Splash Guard / Exterior  Daily  19  Valve area – Portion Control  Daily  18  Valve area – Self­serve  Daily  18  Exterior  Daily  19  Dispensing valves ­ PC  Once a month, or as needed  20  Dispensing valves – Self­serve  Once a month, or as needed  21  Product Case  Every time valve is cleaned, or as required  22  Product Tank & Lid  Every time tank is removed  22  Refrigerated Product  Every time a new product bag or tank is  23  Compartment  loaded  Condenser  Every 6 months ...
  • Page 19: Cleaning:  Exterior Of Dispenser

    CLEANING:  Exterior of Dispenser  NOTE:  Do not use any abrasive materials.  1.  Use a soft, dry cloth to wipe down the exterior surfaces of the dispenser to maintain the  lustre of the stainless steel finish.  2.  Wash the stainless steel exterior surfaces of the dispenser with warm, soapy water.  3.  Rinse with warm clear water. · If the water is hard, wipe the dispenser dry with a soft cloth to prevent water spotting. Stainless steel polish may be used if it is sprayed on a cloth before the cloth is used to  · wipe down the exterior surfaces of the dispenser. · The front of the dispenser should be wiped clean daily.  CLEANING:  Valve Area & Valves – Portion­Controlled Dispensers  NOTE:   The diagrams show a 3 product dispenser.  The procedures apply to 1, 2, and 3  product models. The area around the product delivery valve must be kept clean, for proper sanitation and  · for the proper delivery of calibrated product amounts.  If the valve area is not clean, the  valve may stick and not deliver product accurately, or at all. The area around the product delivery valve should be wiped clean daily.  · It is necessary to remove the valve from the dispenser and take the valve apart to clean it (we  recommend once a month or as needed), but it is an easy process if you follow the steps outlined  on the following pages.  Valve Spring Retainer  Valve Spring  Valve Plunger  Front Panel  Pan­head Screw  4x  Valve Door – Front  Valve Door Knob Screw  Flat­head Screw  1x  Hex­head Cap Screw ...
  • Page 20: Cleaning - Dispensing Valve ­ Pc

    CLEANING: Remove & Clean Dispensing Valve Assembly – Portion Control Dispensers  NOTES:  Prepare a container of warm, soapy water before you  take the valve apart for cleaning.  Be careful not to dislodge the cable during cleaning.  1.  Turn the power to the dispenser OFF.  2.  Open the dispenser door to the refrigerated product compartment.  3.  Remove the product tanks by following the instructions on page12.  4.  Remove the catch tray (if applicable) by lifting it up and off.  Step 5  5.  Remove the 4 pan­head screws (+) that secure the front splash panel  (valve cover) in place and carefully remove the panel. It is located  below the white plastic valves that hold the product dispensing tubes.  It is held in place by 4 Phillips­head screws (+).  Thoroughly wash the splash panel.  6.  Open the valve door: unscrew the black knob in a counter­clockwise  Step 6  motion.  7.  Remove the Phillips­head screw at the top of the metal valve insert.  Do not misplace the screw.  Wipe clean.  8.  Remove the 2 Phillips­head screws at the upper corners of the valve  block.  Do not misplace the screws.  Wipe clean.  9.  Gently remove the white valve body, using an even force.  Hold the  valve carefully with one hand so that the thermistor wire will not be  broken or damaged.  Step 7  Do not let the valve dangle freely. Hold it in your hands.  NOTE: ...
  • Page 21: Cleaning - Dispensing Valve - Ss

    CLEANING: Remove & Clean the Dispensing Valve Assembly – Self­Serve Dispensers  NOTES:  Prepare a container of warm, soapy water before you  take the valve apart for cleaning.  Be careful not to dislodge the cable during cleaning.  1.  Turn the power to the dispenser OFF.  2.  Drain product tanks and remove empty tanks.  3.  Open the door to the refrigerated product compartment.  4.  Remove the catch tray (if applicable) by lifting it up and off.  Step 5  5.  Remove the 4 pan­head screws (+) that secure the front splash  panel/valve cover in place and carefully remove the front splash  panel/valve cover. It is located below the white plastic valves that  hold the product tubes. It is held in place by 4 Phillips­head screws  (+).  Thoroughly wash the splash panel.  6.  Open the valve door:  unscrew the black knob in a counter­clockwise  motion.  Step 7  7.  Remove the Phillips­head screw which retains the aluminum insert.  Do not misplace the screw.  Wipe the insert and screw clean.  8.  Remove the 2 Phillips­head screws at the upper corners of the valve  block.  Do not misplace the screws.  9.  Remove the white valve body.  Hold the valve carefully with one hand  so that the thermistor wire will not be broken or damaged.  The steel  handle comes off with the valve body.  NOTE:  The valve body can only be moved the length of the  thermistor wire, which is located in the left valve.  Step 8 ...
  • Page 22: Cleaning:  Product Case

    CLEANING:  Product Case  Product cases are units designed to hold the pre­bagged product.  The cases are made of a  metal front, back, and bottom, with plastic sides.  Cases must be washed by hand according to  provincial or state regulations.  When washing by hand, a pot brush is recommended.  Make sure  the case is cleaned each time the valve is cleaned, or more frequently, if required.  To clean the product case:  1.  Remove the product case from the refrigerated product compartment of the dispenser.  2.  Wash with hot, soapy water or an approved sanitary cleaning product, according to  provincial or state regulations.  3.  Rinse with hot, clear water to remove soap residue.  4.  Dry thoroughly.  CLEANING:  Product Tanks and Lids or Covers  Product tanks and covers are made of either stainless steel or plastic.  Tanks and covers may be  washed in a dishwasher or by hand according to provincial and state regulations.  If washing by  hand, a pot brush is recommended.  Product tanks must be washed and sanitized in a dishwasher or by hand every time the tank is  removed from the dispenser and placed in the dispenser.  Cleaning requirements may be  specified by company policy or local regulation. Comply with their specifications.  Tanks for Fill­in­Place dispensers must be cleaned to your company’s specifications at regular  intervals specified by local authority.  To clean the product tank:  1.  When the product has run out, remove the tank from the dispenser. Remove the product  delivery tube from the tank.  Discard the tube.  Rinse the tank, including the cover, with  lukewarm potable water.  2.  Place the tank and cover in a hot water wash at a minimum water temperature of 140º F or  60º C. · A good quality general cleaner should be added to the hot wash water at the  concentrations recommended by the detergent supplier.  Wash thoroughly, using a bottle brush to reach all the corners and crevices. ...
  • Page 23: Cleaning - Refrigerated Compartment

    CLEANING:  Refrigerated Product Compartment of Dispenser  Wipe the compartment clean each time a new product bag or tank is loaded.  This will remove  any condensation that may accumulate within the compartment.  1.  Each time a new product bag or tank is loaded, check the refrigerated product compartment  for ice build­up.  If ice has accumulated in the refrigerated product compartment, gently  remove and discard the ice.  2.  Wipe the interior down with a soft cloth  3.  Dry thoroughly.  CLEANING:  The Condenser  Every 6 months, remove the back panel of the dispenser and inspect the condenser.  If  necessary, clean the condenser using a vacuum. We suggest a vacuum be used to prevent any  damage to the condenser coil. 23 ...
  • Page 24: Refrigeration System

    REFRIGERATION SYSTEM AND TEMPERATURE ADJUSTMENT  REFRIGERATION SYSTEM · The refrigeration system is a hermetically sealed system which uses environmentally  friendly R134­A refrigerant. If recharging of the system is required, the refrigeration technician should refer to the  · SureShot Dispensing Systems® Machine Identification Label located on the left side of  the dispenser for details on the quantity of refrigerant used. The condenser is located at the rear of the dispenser behind the back panel. · The evaporator is incorporated within the stainless steel walls of the refrigerated product  · compartment, i.e. cold­wall evaporation system. · The compressor is located below the refrigerated product compartment and is accessible  through the back panel.  Refrigerated  Compartment  Condenser  Fan  Filter/Dryer  Compressor  Capillary Tube Refrigeration System  24 ...
  • Page 25: Temperature Control Adjustment

    TEMPERATURE CONTROL ADJUSTMENT  Each SureShot Dispensing Systems® dispenser is pre­set at our factory to meet your operating  standards.  These settings should not require adjustment.  The temperature in the refrigerated product compartment is set at our factory for normal use in  the North American food service industry.  The temperature is set to maintain the product within  the  range  of  35ºF  to  40ºF  (1.6ºC  to  4.4ºC).    The  temperature  is  controlled  by  an  adjustable  thermostat.  The adjustment thermostat is located on the circuit board. (See below.)  1.  Remove the 4 screws that secure the front splash  panel/valve cover in place and carefully remove the  front panel cover. It is located below the white plastic  valves that hold the product tubes.  2.  When this cover is removed, locate the circuit board  that has electronic components on it.  A red LED  light should be (ON) indicating that there is power  supplied to the board.  3.  Identify which circuit board is installed in the  dispenser.  The circuit board is one of two styles, a  variation of the B16 design or the newer C­01­008  design.  B16 ...
  • Page 26: Dispenser Running Too Cold

    You  can  further  adjust  the  for 3 hours.  temperature to 9 o’clock.  Do not adjust further.  If still not warm enough, repeat this procedure.  Do  not  place  the  refrigeration  setting  on  00  because this is the OFF position.  If, after these adjustments are made, your dispenser is still running too cold, please contact the  SureShot Dispensing Systems® Technical Assistance Center at 1­888­777­9990 or  1­902­865­9602 during your 1­year warranty period or a qualified Refrigeration Technician after  your warranty period has expired.  If The Dispenser Is Running Too Warm:  B16 Circuit Boards  C­01­008 Circuit Boards  To  decrease  the  temperature  or  to  make  it  To  decrease  the  temperature  or  to  make  it ...
  • Page 27: To Reset The Power On The Dispenser

    3.  Locate the 3 Amp circuit breaker above the Power Control on/off switch.  4.  Depress the 3 Amp circuit breaker to make sure it has not popped. No white should be showing. If white is showing on the top of the breaker, it is  · tripped. It will make a clicking noise when depressed.  · 5.  Turn back ON the Power Control ON/OFF switch.  MAINTENANCE  General Maintenance · Gently remove ice build­up, if any ice forms. Ice build­up could indicate an improper  temperature setting or an improperly sealed door.  If the dispenser has accumulated ice or frost at the top of the refrigerated product  compartment, it is best to remove it by hand during a defrost cycle, which runs  automatically and will be indicated on the LCD display panel.  Forming ice does not  necessarily mean the temperature of the product is too cold.  Ice may be removed during a product change:  unplug the dispenser. Leave the door  open for about 15 minutes to allow the ice to soften.  Remove the ice by hand.  If a temperature adjustment is required, follow the instructions on page 25.  If further  assistance is required, contact the SureShot Dispensing Systems® Technical Assistance  Center at 1­888­777­9990 or 1­902­865­9602. If you have difficulty closing the door, check for ice buildup and remove to ensure proper  · operation. Check the door gaskets, to ensure there are no cuts or gaps.  The door must close tightly  · to ensure proper refrigeration.  Check the operation of the fan, being careful not to cut or injure fingers.  The fan is located  on the right side of the dispenser, behind the front panel (See page 25).  If the fan is not  operating, call SureShot Dispensing Systems® Technical Assistance Center at  1­888­777­9990 or 1­902­865­9602 for assistance.  Warning: Keep the dispenser level at all times. Do not tip the dispenser while it is operating.  Tipping will damage the compressor and prevent proper operation of the refrigeration system. 27 ...
  • Page 28: Circuit Board, B16

    ELECTRICAL SYSTEM  LCD Display  Power ON/OFF  Valve  Circuit Breaker  Circuit Board 28 ...
  • Page 29: Wiring Diagram

    WIRING DIAGRAM:  Fan  EMI1  Switch  3 amp  Brn  Yel  Brn  Breaker  Org  Yel  Blu  CB1  Blu  Blu  TRANS1  P1  Quick Connec ts  Blk  L  120V  Gnd  Wht  1 Phase  N  PCB1  ACIN  TEMP  CASESWITCHES  Org  CT  IN GND  GND1 2  3  Wht  Blk  Yel ...
  • Page 30: No Power At The Plug

    2.  Make sure there is product – milk, cream, etc – in the  product compartment.  3.  Make sure the product dispensing tube from the product  tank is clear of blockage and is properly aligned in the  valve with no twists or kinks and is not pinched off.  4.  Make sure the valve door is closed.  5.  Check the valve area and the valves to make sure they  are clean.  NOTE: most problems are caused by dirty,  sticky valves. To clean, see pages 18, 20, 21.  6.  Turn off the dispenser, wait 10 seconds, then turn the  dispenser back on to reset the microcontroller.  7.  Check the temperature inside the refrigerated product  compartment, to make sure it is within the temperature  range of 35ºF. to 40ºF. (1.6ºC to 4.4ºC.) If the dispenser  is running cold, it could form ice which may interfere with  the flow of product.  If a temperature adjustment is  required, see page 25. If  further assistance is required,  contact the SureShot Dispensing Systems® Technical  Assistance Center at 1­888­777­9990 or  1­902­865­9602.  8.  Check to ensure that the red power indicator light on the  button panel is on.  If the power indicator light is not on,  check the circuit breaker (See page 4).  To check the  Circuit Breaker:  ­  Confirm that the Circuit Breaker on the lower left front  side of the dispenser has not tripped out. If it has, turn  OFF the dispenser, re­set the circuit breaker by gently  pushing it in once to reset it – push in at the top of the  breaker until no white is showing.  Then, turn the power  back ON. 30 ...
  • Page 31 9.  Ensure that the program switch located on the lower left  side of the circuit board is in the “up” position and that  the red LED located next to it is OFF.  10.  If there is still no product dispensed, call the SureShot  Dispensing Systems® Technical Assistance Center at  1­888­777­9990 or 1­902­865­9602.  The dispenser is not  1.  Wrong dairy product is being dispensed – for example,  dispensing the proper  skim is in the cream slot.  Review how the dispenser  amount of product  operates.  2.  Check to ensure that the system is reset properly. See  page 27.  3.  Make sure that the product delivery tube is inserted in  the valve correctly since incorrect placement can affect  product delivery. See page 8.  4.  Check to ensure that valve and valve area are clean.  5.  Make sure the valve door is not being opened before  the product bag or tank is empty.  6.  Make sure product tanks are filled to the required level.  7.  Check to see if the refrigeration unit is too cold or too  warm.  Ice may interfere with product flow.  Check the  temperature of the product to ensure that it is  approximately 38ºF or 3.3ºC.  Note:  Temperature affects the flow of cream and some  other liquids. Ice may interfere with flow.  8.  Check the refrigeration temperature.  Ice may affect ...
  • Page 32: Valve Is Sticky

    SureShot Dispensing Systems® Technical  Assistance Center at 1­888­777­9990 or  1­902­865­9602 for assistance.  10.  If your dispenser has a reset button, follow the reset  procedure on page 12.  Valve is sticky  1.  A sticky valve is usually caused by product build­up on  the valve.  The problem is corrected by cleaning the  valve.  See Instructions on pages 20, 21.  2.  If this doesn't correct the problem, call the SureShot  Dispensing Systems® Technical Assistance Center at  1­888­777­9990 or 1­902­865­9602.  Valve door is broken  This indicates the door hinge is broken.  The hinge is in two  parts: hooks, pins.  1.  Hooks: If either or both of the plastic “hooked” areas of  the hinge are missing, the door section valve assembly is  broken and must be replaced.  Contact SureShot  Dispensing Systems® Technical Assistance Center at  1­888­777­9990 or 1­902­865­9602 for replacements.  2.  Pins: If either or both plastic “pins” are missing from the  hinge area, the body section of the valve is broken and  must be replaced.  Contact SureShot Dispensing  Systems® Technical Assistance Center at  1­888­777­9990 or 1­902­865­9602 for replacements.  Dispenser is unusually  1.  Make sure any vents at the top and back of the ...
  • Page 33: Dispenser Is Warm On Interior

    7.  Check to ensure the fan is operating.  Remove the front  panel and observe the fan on the right side of the  dispenser, in front of the compressor and behind the  circuit board.  (See page 24)  Do a visual inspection  only.  Be careful not to injure fingers by sticking them in  the fan.  If the fan is not running, call the SureShot  Dispensing Systems® Technical Assistance Center at  1­888­777­9990 or 1­902­865­9602.  8.  If the problem is still not solved, call the SureShot  Dispensing Systems® Technical Assistance Center at  1­888­777­9990 or 1­902­865­9602.  Dispenser is too cold  1.  Check product temperature.  If temperature adjustment  (if dairy product is at  is required, follow instructions on page 25.  least 34° or less for  2.  Call SureShot Dispensing Systems® Technical  longer than an hour)  Assistance Center at 1­888­777­9990 or  1­902­865­9602.  Frost build up in the  1.  Check the temperature inside the refrigerated product  refrigeration  compartment, to make sure it is within the temperature  compartment  range of 35ºF to 40ºF (1.6ºC to 4.4ºC).  If the dispenser  is running cold, it could form ice.  2.  If the dispenser has accumulated ice or frost at the top of  the compartment, it is best to remove it during a defrost  cycle, which runs automatically and will be indicated on  the LCD display panel.  Forming ice does not necessarily  mean the temperature of the product is too cold. If ...
  • Page 34: Dispenser Is Leaking Product

    4.  If a temperature adjustment is required, follow the  instructions on page 25.  If further assistance is required,  contact the SureShot Dispensing Systems® Technical  Assistance Center at 1­888­777­9990 or  1­902­865­9602.  Dispenser is leaking  1.  Make sure the valve door is closed securely and its  product  knob screw is tightened properly.  2.  Make sure the product dispensing tube is properly  aligned in the centre of the delivery valve.  3.  Check the tube for cracks or disfiguration.  If the tube is  cracked or disfigured, replace it.  See pages 11 & 12.  4.  Check the valve to make sure that it is not dirty.  If  required, clean the valve following instructions on pages  20 & 21.  5.  Check to ensure that the plunger and valve assembly are  correct. Ensure that the spring is properly seated in the  spring retainer.  Dispenser is not level  1.  Check to make sure all four legs at the bottom corners  of the dispenser are in place.  2.  Tighten any legs that are loose.  3.  Make sure the legs are not bent.  4.  Replace any bent or missing legs.  Replacement legs  may be obtained by contacting SureShot Dispensing  Systems® Technical Assistance Center at  1­888­777­9990 or 1­902­865­9602. ...
  • Page 35: Red Warning Light Is Flashing

    Red warning light at the  NOTE: The flashing red light is a warning light to indicate  top of the product  that the volume in the product case or tank is getting low and  selection button is  the product will need to be replaced or refilled soon. A solid  flashing  red warning light indicates the product has run out and must  be refilled of replaced.  The light is an optional feature and  may not be found on all dispensers.  1.  Open the valve door.  2.  Replace or refill the product case or tank.  See page 11.  The light should stop flashing or go out.  3.  If the light continues, call the SureShot Dispensing  Systems® Technical Assistance Center at  1­888­777­9990 or 1­902­865­9602.  If these instructions do not correct your problem or if you have other problems, contact:  SureShot Dispensing Systems® Technical Assistance Center  1­888­777­9990 or 1­902­865­9602  NOTE:  The Product Identification Label on the left side of each dispenser includes the contact  telephone number for SureShot Dispensing Systems®.  Refer to the Serial Number and the  Model Number on the label when calling SureShot Dispensing Systems®.  These numbers are  crucial to helping us provide prompt and effective service.  This will save you time. 35 ...
  • Page 36: Warranty

    USA AND CANADA WARRANTY  This dispenser is covered by a one (1) year on­site warranty, unless otherwise specified.  All  dispensing  equipment  manufactured  by  A.C.  Dispensing  Equipment  Inc.  is  warranted  against  defects  in  materials  and  workmanship for a period of one (1) year from the date of purchase.  A.C.  Dispensing  Equipment  Inc.'s  obligation  under  this  warranty  is  limited  to  the  repair  of  defects  as  outlined  by  an  A.C.  Dispensing Equipment Inc. factory­authorized service agency or one of its sub­service agencies.  This ...
