COMMERCIAL GAS WATER HEATERS
LOW LEAD
CONTENT
KEEP THIS MANUAL IN THE POCKET ON HEATER FOR FUTURE REFERENCE
WHENEVER MAINTENANCE ADJUSTMENT OR SERVICE IS REQUIRED.
Instruction Manual
POWER VENT/POWER DIRECT VENT GAS MODELS
•
For Your Safety
AN ODORANT IS ADDED TO THE GAS USED
BY THIS WATER HEATER.
1
WITH DIRECT SPARK IGNITION
300/301 SERIES MODELS
•
100300622_ 2000554312_Rev B
Advertisement
Table of Contents
Related Manuals for American Water Heater 300 Series
Summary of Contents for American Water Heater 300 Series

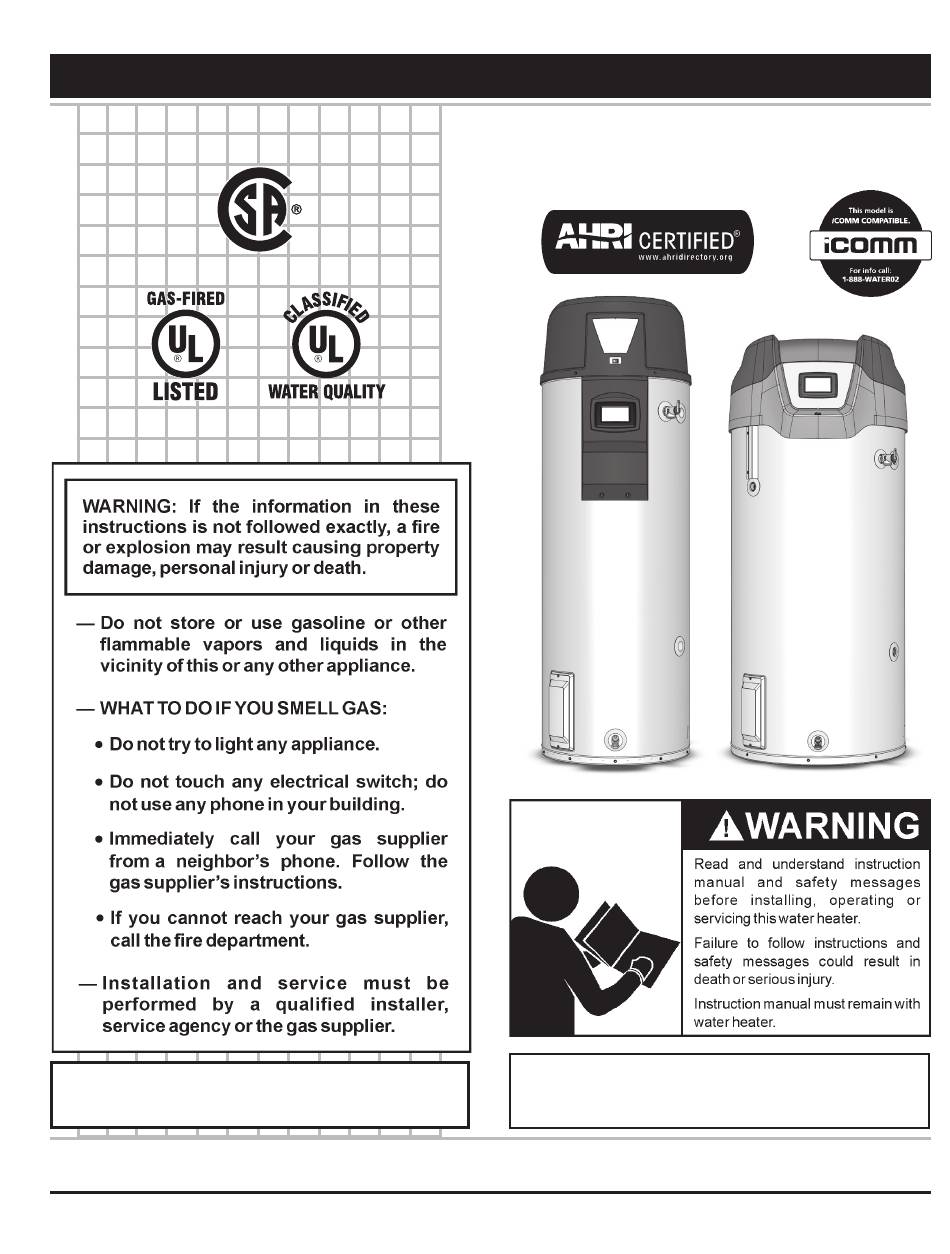

- Page 1 Instruction Manual COMMERCIAL GAS WATER HEATERS POWER VENT/POWER DIRECT VENT GAS MODELS WITH DIRECT SPARK IGNITION 300/301 SERIES MODELS LOW LEAD CONTENT • • For Your Safety Thank you for buying this energy efficient water heater. AN ODORANT IS ADDED TO THE GAS USED We appreciate your confidence in our products.
-
