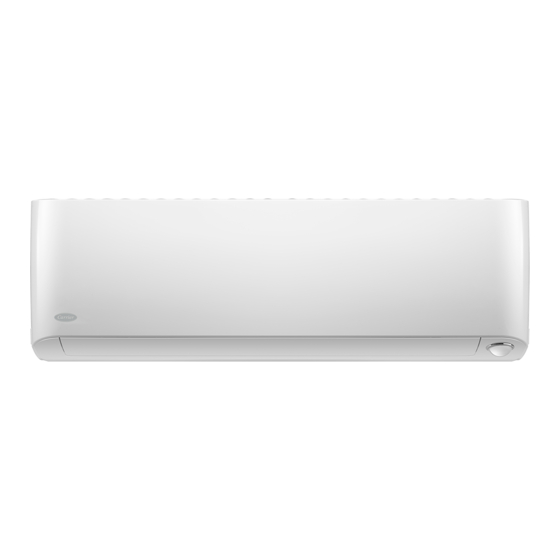

40MPHA
High Wall Ductless System
Sizes 09 to 12
A NOTE ABOUT SAFETY
GENERAL
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PART NAMES
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INDOOR UNIT DISPLAY INDICATOR
WIRELESS REMOTE CONTROL
REMOTE CONTROL FUNCTIONS
CLEANING, MAINTENANCE AND TROUBLESHOOTING
Please read this Owner's Information Manual carefully before installing and using this appliance
and keep this manual for future reference.
For your convenience, please record the model and serial numbers of your new equipment in the
spaces provided. This information, along with the installation data and dealer contact information,
will be helpful should your system require maintenance or service.
UNIT INFORMATION
Model # ___________________________________
Serial # ___________________________________
INSTALLATION INFORMATION
Date Installed _____________________________
Owner's Manual
TABLE OF CONTENTS
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
NOTE TO EQUIPMENT OWNER:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DEALERSHIP CONTACT INFORMATION
Company Name: _________________________________
Address:_________________________________________
________________________________________________
Phone Number:__________________________________
Technician Name:_________________________________
________________________________________________
PAGE
2
2
3
3
4
7
12 − 15
Advertisement
Table of Contents
Related Manuals for Carrier 40MPHA
Summary of Contents for Carrier 40MPHA
- Page 1 40MPHA High Wall Ductless System Sizes 09 to 12 Owner's Manual TABLE OF CONTENTS PAGE A NOTE ABOUT SAFETY ................. . .
-
Page 2: Operating Modes
A NOTE ABOUT SAFETY GENERAL The high wall fan coil unit provides quiet, maximum comfort. In Any time you see this symbol in manuals, instructions and on addition to cooling and/or heating, the high wall fan coil unit the unit, be aware of the potential for personal injury. There are matched with an outdoor condensing unit filters and dehumidifies three levels of precaution: the air in the room to provide maximum comfort. -
Page 3: Part Names
PART NAMES Front Panel Remote Control Remote Control Holder Louver Intelligent Eye Air Freshening Filter (some units) (On back of Main Filter) Display window The unit has a built-in light sensor to detect ambient brightness. When the light is turned off, the display dims gradually conserving energy. -
Page 4: Wireless Remote Control
WIRELESS REMOTE CONTROL Before you begin using your new air conditioner, make sure to familiarize yourself with the remote control. The following is a brief introduction to the remote control. ON/OFF Selects fan speeds in the following order: MODE F%(100%). Scrolls through operation Press the Adjust modes as follows:... - Page 5 Remote LCD Screen Indicators Remote LCD Screen Indicators Information appears when the remote controller powers up. Horizontal louver auto swing display ON/OFF display Vertical louver auto swing display Appears when the unit is turned on, and disappears when it is turned off Transmission Indicator Turbo mode display Lights up when remote...
-
Page 6: Battery Installation
Remote Control Operation − Quick Start CAUTION NOTE: When transmitting a command from the remote control to the unit, be sure to point the control toward the right side of the EQUIPMENT DAMAGE HAZARD unit. The unit confirms receipt of a command by sounding an Failure to follow this caution may result in equipment audible beep. -
Page 7: Remote Control Functions
REMOTE CONTROL FUNCTIONS COOL Mode Press On/Off 1. Press MODE to select the COOL mode. When the air conditioner is not in operation, the remote control displays the last set point and mode. 2. Set your desired temperature using Temp + or Temp −. S Press ON/OFF to start the unit. -
Page 8: Heat Mode
Setting the Room Temperature Set Point HEAT Mode Press the increase temperature set point and decrease buttons 1. Press MODE to select the HEAT mode. to raise or lower the temperature. 2. Set your desired temperature using Temp + or Temp −. The unit confirms the signal receipt with a beep and the value of 3. - Page 9 Timer ON and Timer OFF CAUTION Use both functions to program the unit to turn on and shut off at specified times. INJURY HAZARD a. Set TIMER ON as previously described. DO NOT place fingers in or near the blower or suction side b.
- Page 10 ECO Mode Intelligent Eye The system may be controlled intelligently under INTELLIGENT NOTE: This function is only available under the COOL mode. EYE mode. The INTELLIGENT EYE can detect activity in the Use to enter the ENERGY EFFICIENT mode. Under the room and adjust the horizontal angle of airflow to implement the COOLING mode, press ECO and the remote controller adjusts Wind Flow Follow People feature and Wind Flow Away from...
- Page 11 Silence Mode NOTE: Press and hold Temp together for 3 seconds to alternate To initiate the SILENCE function, hold down FAN for 2 the temperature display between the seconds to activate or cancel the SILENCE mode. Due to the F° and C°scale. low frequency operation of the compressor, it may result in insufficient cooling and heating capacity (only available on air conditioners with the SILENCE feature).
-
Page 12: Air Filter Cleaning
CLEANING, MAINTENANCE AND TROUBLESHOOTING Air Filter Cleaning CAUTION Remove and clean the air filters once a month. A clogged air conditioner can reduce the cooling efficiency of your unit, and can ELECTRICAL SHOCK HAZARD also be bad for your health. NOTE: If air filters show signs of excessive wear or are torn, they Failure to follow this caution may result in personal injury must be replaced. - Page 13 Pre−Season Inspection CAUTION After long periods of non−use, or before periods of frequent use, perform the following steps: EQUIPMENT DAMAGE HAZARD Failure to follow this caution may result in equipment damage. When cleaning the front panel, do not use water hotter than 105_F (40.6_C) and do not pour water onto the fan coil.
-
Page 14: Troubleshooting
Troubleshooting Refer to Tables 2 through 3 before contacting your local dealer. Table 1—Periodic Maintenance INDOOR UNIT EVERY MONTH EVERY 6 MONTHS EVERY YEAR Clean Air Filter* Replace Carbon Filter Change Remote Control Batteries OUTDOOR UNIT EVERY MONTH EVERY 6 MONTHS EVERY YEAR Clean Outdoor Coil from Outside Clean Outdoor Coil from Inside†... - Page 15 Table 3—Troubleshooting PROBLEM POSSIBLE CAUSE SOLUTION • The circuit breaker has tripped or a fuse • Reset the circuit breaker or replace the fuse with has blown. the specified replacement fuse. • Power failure. • Restart operation when the power is restored. Unit/System Does Not Work •...
- Page 16 Catalog No:OM40MPHA-01 Copyright 2017 Carrier Corp. D 7310 W. Morris St. D Indianapolis, IN 46231 Edition Date: 08/17 Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations. Replaces: NEW...
