T20 FRS portable transceiver User interface Definition Revision History Version Description Date Author Release 16FEB18 R Hollis Added Weather mode activation; Changed product name from T200 to 19FEB18 R. Hollis T20. Midland Radio Corporation...
Page 2

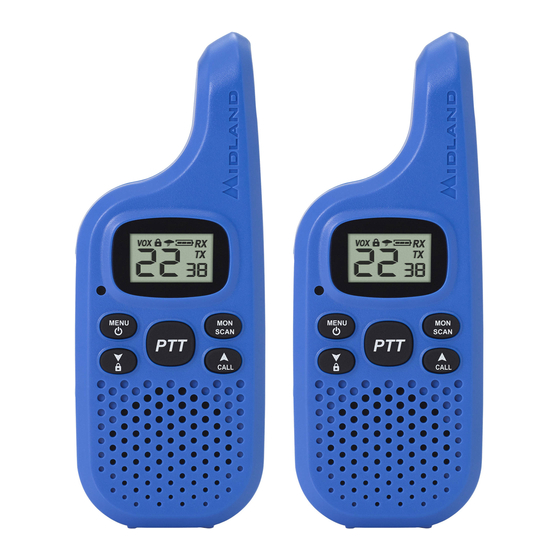

T20 User interface definition The T20 portable transceiver user interface will consist of a 19mm x 13mm (active area) LCD display and 5 silicon rubber pushbuttons. The user will use the keypad and LCD to access all of the radio functions, set or change operation parameters and to operate the radio.
Page 3
T20 User Interface Definition V2-0 Page 3 of 10 Display The radio will have an LCD for displaying user information as follows: T20 LCD LCD segment description Large 7-segment – 2 digits Channel number Small 7 segment – 2 digits...
T20 User Interface Definition V2-0 Page 4 of 10 2. Receive In receive mode, the radio has detected activity on the current selected channel and that activity will be heard by the user on the speaker. 3. Transmit In transmit mode, any audio picked up by the microphone will be broadcast on the current selected channel.
T20 User Interface Definition V2-0 Page 5 of 10 User operation: POWER ON/OFF Press and hold the MENU/POWER button for 3 seconds to turn the radio on/off. During Power On, the radio will beep once. • The LCD will display all icons for 1 second and the LCD display will indicate the last channel selected.
Page 6
T20 User Interface Definition V2-0 Page 6 of 10 To RECEIVE • The radio is ready to receive any time the PTT button IS NOT pressed. The RX icon will appear on the display when the radio is receiving a transmission.
T20 User Interface Definition V2-0 Page 7 of 10 SCAN…. continued • If the ^/CALL or v/LOCK button is pressed while the radio is scanning, the scan direction will change to increasing or decreasing corresponding to which key is pressed.
Page 8
T20 User Interface Definition V2-0 Page 8 of 10 Weather mode To enter Weather mode, press and hold both the MON/SCAN and ^/CALL buttons at the same time for 3 seconds. After 3 seconds, the radio will enter Weather mode and monitor the last channel set by the user.
Page 9
T20 User Interface Definition V2-0 Page 9 of 10 Feature select flowchart MENU key operation from FRS Standby mode Standby mode MENU press Range of channels is 1 to 22. Select channel Channel number will flash and will increment or decrement when ^/CALL or v/LOCK are pressed.
Page 10
T20 User Interface Definition V2-0 Page 10 of 10 MENU key operation from Weather mode Weather mode MENU press PTT press or 4 sec timeout will store Range of channels is 1 to 10. current setting Leading zero is displayed.
Page 11
RF exposure requirements, and should be avoided. Use only the supplied or an approved antenna. Channel List Channel Frequency Model Channel Frequency Model 462.5625 467.6625 462.5875 467.6875 462.6125 467.7125 462.6375 462.5500 462.6625 462.5750 462.6875 462.6000 462.7125 462.6250 467.5625 462.6500 467.5875 462.6750 467.6125 462.7000 467.6375 462.7250 Midland Radio Corporation...
Page 12
Tenir l'émetteur à environ 2.5 cm (1 po) de la bouche et parler normalement, l'antenne étant éloignée et dirigée vers le haut. Channel List Channel Frequency Model Channel Frequency Model 462.5625 467.6625 462.5875 467.6875 462.6125 467.7125 462.6375 462.6625 462.6875 462.7125 467.5625 467.5875 467.6125 467.6375 Midland Radio Corporation...
