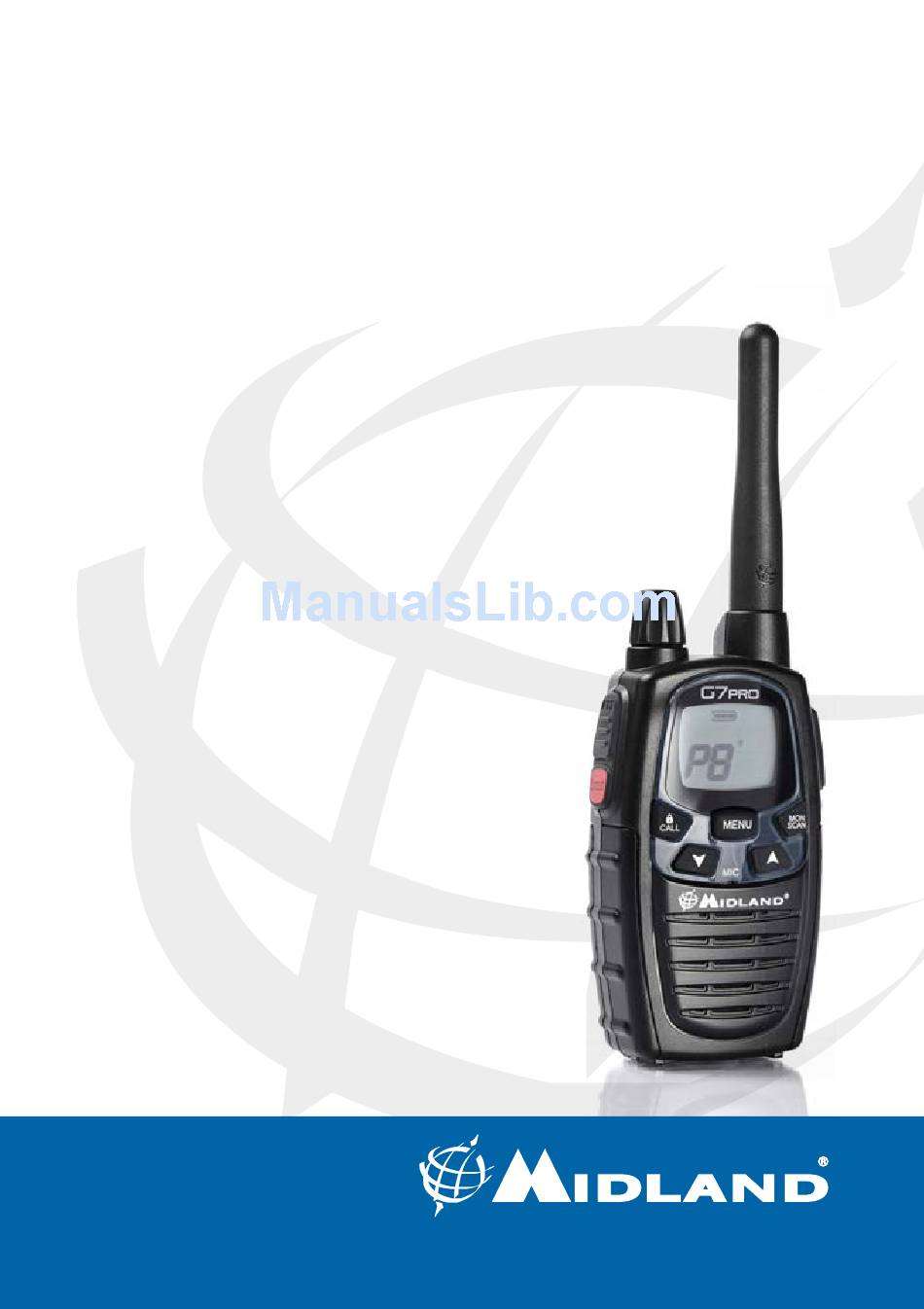

- Page 1 Midland G7 Pro Midland G7E Pro ” User manual D UA L B A N D P M R / L P D T R A N S C E I V E R |...
-
Page 2: Table Of Contents
Recharging the NIMH battery pack PB-ATL/G7 800 mAh Recharging the Li-Ion battery pack ‘PB-PRO’ (optional) Memory effect of rechargeable batteries Installing and removing the belt clip Installing/removing the battery pack Removal Installation Basic operation Turning on/off Volume control Transmission and reception Midland G7 Pro user’s manual... - Page 3 CTCSS/DCS tones selection Choosing high or low transmission power (PMR band) VOX function Vibra-Call function ROGER BEEP (End transmission tone) CALL function Dual Watch function Keypad beep 7. Troubleshooting and radio reset Reset Technical specifications Transmitter Receiver Midland G7 Pro user’s manual...
-
Page 4: Introduction
PMR446 and LPD bands (see the chart ‘Restrictions on use’). The Midland G7/G7E Pro incorporates all the functions that you would expect to see on the latest and most advanced transceivers and guaran- tees maximum efficiency. -
Page 5: Content Of The Package
1 double desktop charger • 2 battery packs 800mAh • quick guide It is available the optional Li-Ion battery pack 1200mAh mod. ‘PB-PRO’ . If any item is missing or damaged, contact immediately your supplier. Midland G7 Pro user’s manual... -
Page 6: Coverage (Referred To Pmr Frequency Band)
2 Km. In open space but with obstructions like trees, leafs or houses the maximum possible range is about 4-6 Km. In open space, without obstructions and in sight, like for example in mountain, the coverage can be more than 12 Km. Midland G7 Pro user’s manual... -
Page 7: Main Functions
Main functions • G7 Pro: Dual Band LPD/PMR transceiver G7E Pro: PMR446 transceiver • Dual PTT for high/low power transmission • Side Tone: end transmission noise muffler • New audio level • VIBRACALL function • LCD display with backlight •... -
Page 8: Above All
Dispose of the batteries accor- ding to procedures set out by local regulations. Do not mix old and new batteries or batteries of different types or bat- teries which have been used in different manners. Midland G7 Pro user’s manual... -
Page 9: Identifying The Parts
Identifying the parts LCD Display Midland G7 Pro user’s manual... - Page 10 RX - Radio in rx mode (busy channel) TX - Radio in transmission (PTT pressed) DCS/CTCSS - Type of sub-audio tone selected 10. Code of the selected CTCSS or DCS tone (CTCSS: 1-38; DCS: 1-104) Midland G7 Pro user’s manual...
-
Page 11: Transceiver
Transceiver MENU CALL SCAN CALL CALL CALL CALL MENU MENU MENU MENU Midland G7 Pro user’s manual... - Page 12 2 seconds to activate the Monitor function, that tem- porarily cuts off the squelch (for weak signals) 21. SPK | MIC/CHG (under the protective cover) - To connect to external audio devices such as microphones, headphones, chargers, etc Midland G7 Pro user’s manual...
-
Page 13: Preparing The Transceiver
There’s no evidence when the recharge is finished, therefore we suggest you detach the wall adaptor from the radio or remove G7 Pro from the desktop charger cradle once the recharge is complete. -
Page 14: Recharging The Nimh Battery Pack Pb-Atl/G7 800 Mah
5 hours. There’s no evidence when the recharge is finished, therefore we suggest you detach the wall adaptor from the radio or remove G7 Pro from the desktop charger cradle after 5 hours. When the radio is in the charger cradle, the processor makes a sort of che- cking on the battery;... -
Page 15: Memory Effect Of Rechargeable Batteries
1. To fix the clip back to the devi- ce slot it in the guides at the back of the transceiver until it clicks into place. PICTURE 1 12 | Midland G7 Pro user’s manual... -
Page 16: Installing/Removing The Battery Pack
Remove the belt clip as explained in paragraph “Installing and remo- ving the belt clip”; Insert the battery pack into the battery compartment; Close the battery cover and fix the belt clip. PICTURE 2 Midland G7 Pro user’s manual | 13... -
Page 17: Basic Operation
(RX displayed). During transmission and reception try, as far as possible, to keep the an- tenna in vertical position and to avoid obstacles towards the direction of the other party. 14 | Midland G7 Pro user’s manual... -
Page 18: Mon Button (Monitor)
MON/SCAN for about 2 seconds to disable this function. Scanning all channels Midland G7/G7E Pro can automatically search for signals throughout the PMR/LPD bands by scanning, i.e. selecting the channels in rapid sequen- ce. When a signal is detected, the scanning pauses on that channel and you can transmit by pushing PTT . -
Page 19: Power Save
50%; power saving comes on automatically when the transceiver does not receive any signal for more than 5 seconds. When the batteries are discharged, bt LO appears on the display: replace the batteries or re- charge the battery pack. 16 | Midland G7 Pro user’s manual... -
Page 20: Menu Button
Press the PTT button to confirm, or wait for 10 seconds. Refer to the table of frequencies. CTCSS/DCS tones selection Midland G7/G7E Pro can receive in two modes: Open traffic: in this case you will hear any communication transmit- ted on the selected channel;... -
Page 21: Choosing High Or Low Transmission Power (Pmr Band)
VOX function Midland G7/G7E Pro enables hands free conversations through VOX fun- ction. You can enable VOX function with or without accessories. G7 Pro is supplied with 3 different VOX selections: VOX standard (Vo on the display) •... -
Page 22: Vibra-Call Function
To confirm the roger beep activation, press PTT button or wait for 10 seconds. CALL function Midland G7/G7E Pro can send 5 different call tones. To send this audio signal to other users, press the CALL/ key. To select the call tones: Push the MENU button 7 times in the PMR band, until the display shows “CA 1”. -
Page 23: Dual Watch Function
By pushing / you will hear the 10 pre-set melodies. Confirm by pressing the PTT key or wait for 10 seconds. Now, each time your Midland G7/G7E Pro sends out a tone call, it will beep with the selected melody. -
Page 24: Troubleshooting And Radio Reset
7. Troubleshooting and radio reset Your Midland G7/G7E Pro is designed to provide you with years of opti- mal performance. If for some reason problems arise, refer to this chapter before contacting a service centre in your region. Reset If your transceiver experiences a logical malfunction (improper symbols on the display, blocking of functions, etc.), it may not be experiencing a... -
Page 25: Technical Specifications
300mW @ 10% THD Jack for ext.mike and recharge stereo 2,5 mm Jack for ext. speaker mono 3.5 mm Maximum transmission time 6 minutes, equivalent in an hour to a duty cycle of 10% 22 | Midland G7 Pro user’s manual... - Page 26 Here, the various materials will be divided by characteristics and recycles, thus making an important contribution to environmental protection. Midland G7 Pro user’s manual | 23...
- Page 27 C/Cobalt, 48 - 08940 Cornellà de Llobregat (Barcelona - España) Tel: +34 902 384878 Fax: +34 933 779155 www.midland.es El uso de este equipo puede estar sujeto a la obtención de la correspondiente autori- zación administrativa. Lea atentamente las instrucciones antes de usar el equipo. si el producto contiene pilas o baterías no las tire al fuego ni las disperse en el ambiente...
