Summary of Contents for CITC AQUAMAX MP 100059

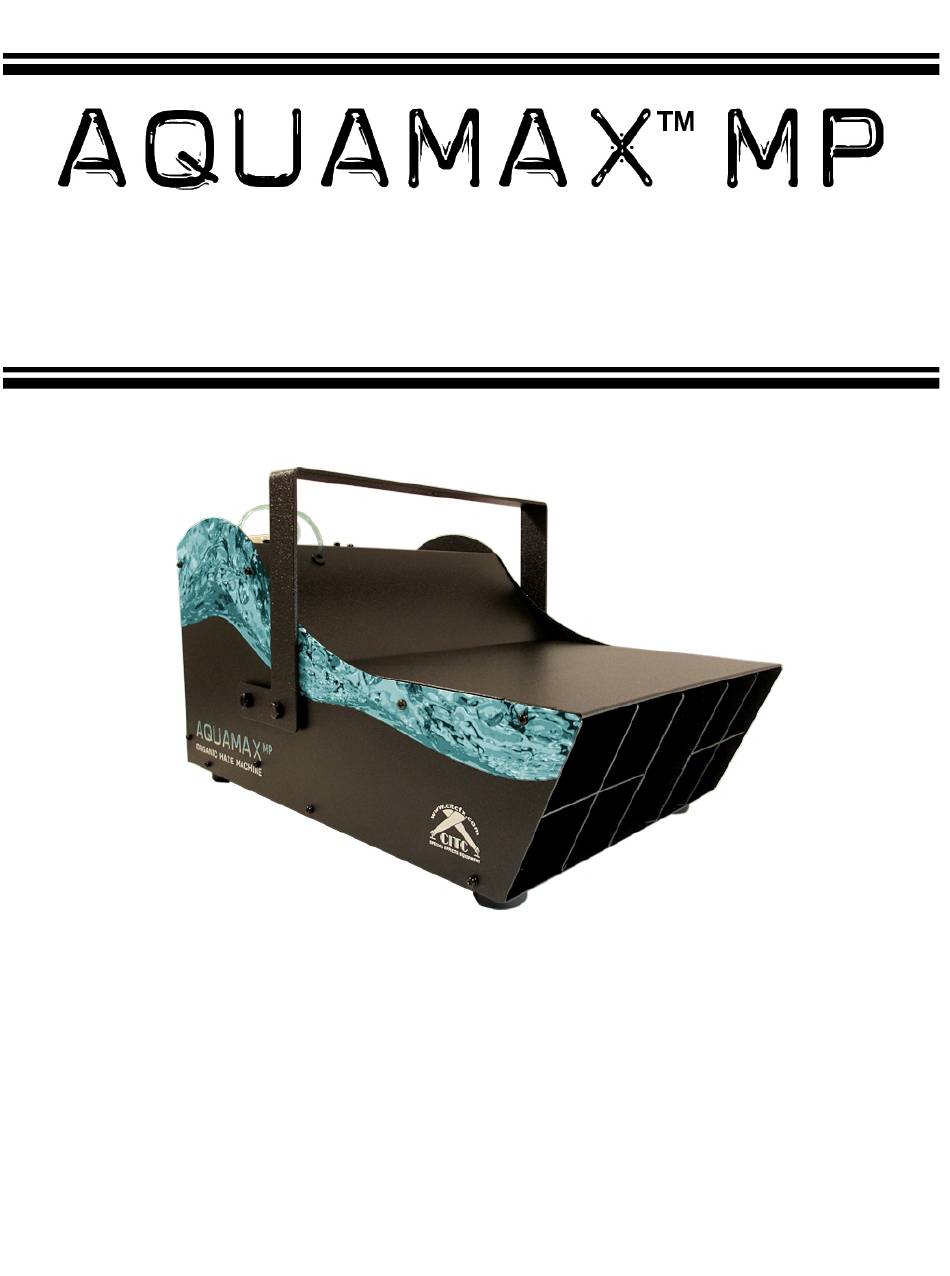

- Page 1 Organic Haze Machine Operating Instructions P/N 100059 (120 VAC w/DMX) P/N 100060 (230 VAC w/DMX)
- Page 2 And finally, we believe you will enjoy years of great haze effects if you care for and maintain your AQUAMAX™ MP. CITC 1420 80 St. SW #D Everett, WA 98203 (888) 786-CITC www.citcfx.com info@citcfx.com...
-
Page 3: Table Of Contents
Contents 1. Set of Equipment Supplied 2. Accessories and Parts 3. Description 4. Safety Instructions 5. Operating the AQUAMAX™ MP 5.1 Selecting the Location 5.2 Electrical Power Requirements 5.3 Hooking things up 5.4 Operating the machine with Remote Control 5.5 Operating the machine using DMX Control 5.6 Rest Period 5.7 Troubleshooting 6. -
Page 4: Set Of Equipment Supplied
1 Remote Cycle-Timer Controller w/5-pin XLR in/out (P/N 600387) 1 Bracket for hanging (P/N 601994) Operating Instructions Booklet 2. Accessories and Parts CITC Organic Haze P/N 150580 C-Clamp w/Safety Cable P/N 250110 C-Clamp w/eyebolt & hanging harness for 5 gal. (19 liter) ... -
Page 5: Description
3. Description of the AQUAMAX™ MP The AQUAMAX™ MP w/DMX is CITC’s newest professional hazing system. No other comparable machine delivers a more even output of long-lasting, water-based organic haze. The AQUAMAX™ MP can produce longer than the stiffest competition. Available in either 120vac or 230vac, the AQUAMAX™... -
Page 6: Hooking Things Up
Hooking things up Plug the 5-pin XLR of the Remote Control into the inlet marked “Remote Control Input”. Fill the bottle with CITC’s Organic Haze fluid. Place the filter end of the tube inside the bottom of the bottle and tighten cap. Be sure the vent hole in the cap is not blocked. -
Page 7: Rest Period
Operating the AQUAMAX™ MP using DMX Control With DMX control, you will be able to adjust both the haze levels and fan speeds on/off, from 0 – 100%. By adjusting the push button switches on the back of the machine near the display panel, the user may assign one DMX address to the AQUAMAX™... -
Page 8: Maintenance And Storage
E2- The thermal sensor is not connected. This is a safety feature and is not customer accessible. Call CITC for more information. b. E3- The thermal sensor input is shorted. This is also a safety feature and not customer accessible. -
Page 9: Technical Data
230VAC, 5A Fluid Consumption: @ 50 - 100% output, 4 - 8 oz. (125 – 250 ml) per hour Fluid Type: CITC Organic Haze™- 2 Liter or 5 gallon Warm-up time 6 minutes Haze hang time 2+ hours 1 channel haze volume + on/off... -
Page 10: Limited Warranty Conditions
Our customer service department will respond to your problems immediately. Subject to the following conditions, CITC will repair any defect or fault in the unit if it is caused by a proven factory defect within one year of delivery to the end user. - Page 11 CITC. The right of limited warranty service is also lost if a fluid other than appropriate CITC fluid has been used or if units are sent in without first emptying the equipment of fluid.
