digital audio
modular
processing system
features
• Interface for AoIP (AES67 or DANTE)
• Two AoIP network ports for redundant or switch operation
• MADI I/O connection
• AES3id MADI receiver and transmitter
• Word length 24bit
• Extended mode (64ch)
• MASTER mode: A C8000 frame may be clocked via MADI input or AES67 network
• Bridging between MADI and AoIP network

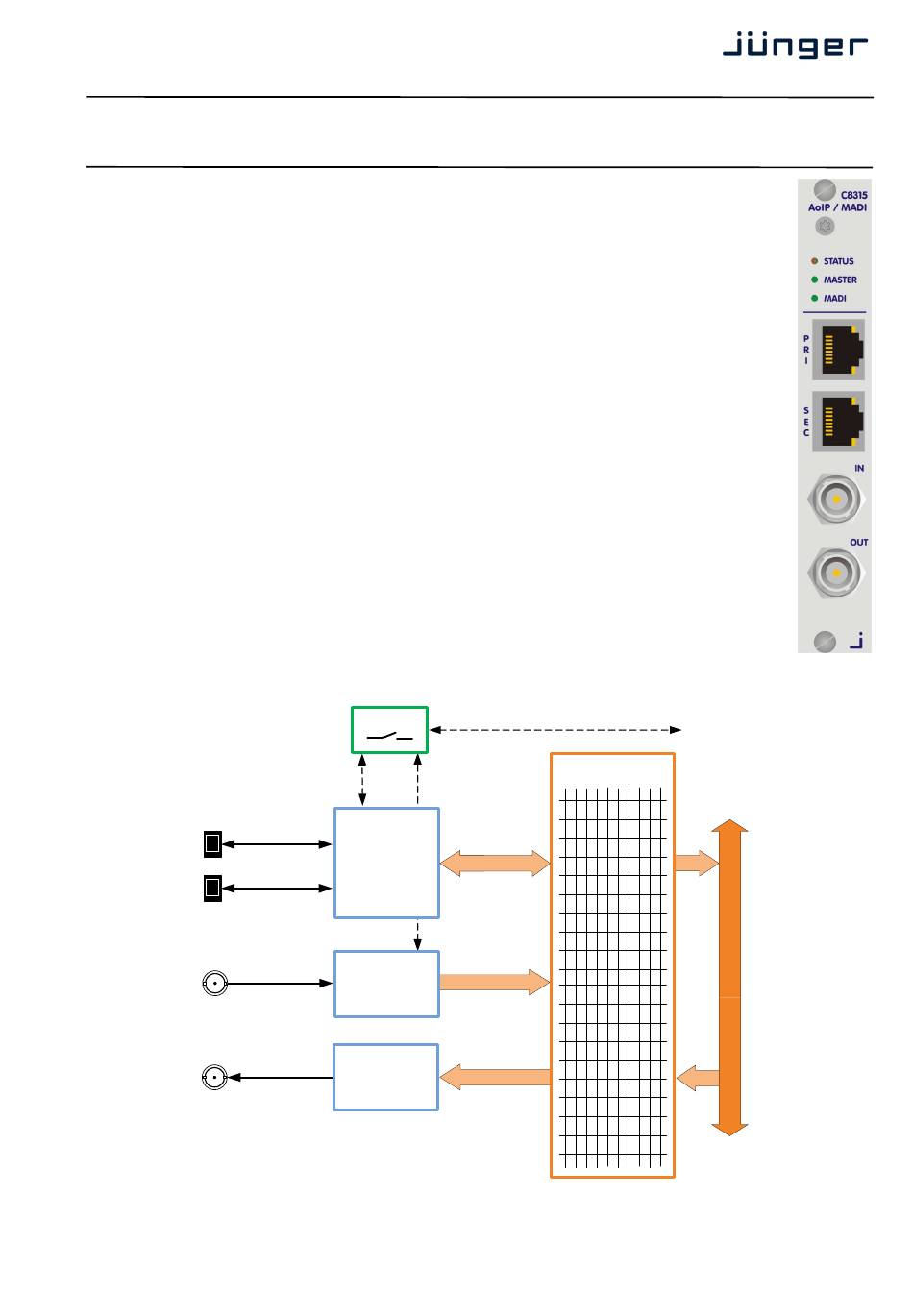

block diagram
AoIP I/O
PRI
SEC
MADI
IN
OUT
C8000
64ch BNC MADI & AoIP I/O
MASTER
AoIP
Dante
Brooklin II
OEM
module
Madi
Receiver
Madi
Transmitter
C8315_manual_EN_180823.doc
C8315
System Clock
Routing Matrix
C8000 Audio Bus
S01 ... S32
Advertisement
Summary of Contents for junger C8315
- Page 1 C8000 modular processing system C8315 64ch BNC MADI & AoIP I/O features • Interface for AoIP (AES67 or DANTE) • Two AoIP network ports for redundant or switch operation • MADI I/O connection • AES3id MADI receiver and transmitter •...
- Page 2 C8000 modular processing system C8315 64ch BNC MADI & AoIP I/O technical specifications – MADI interface Standards Relevant specifications comply with AES10-2008 and AES11-2009. Audio 24bits, transparent forwarding of PCM and compressed audio Audio Sample Rates 44.1, 48kHz BNC Input 64/56 channels @ 44.1 and 48kHz...
-
Page 3: Installation
FAIL ADDRESS: This rotary encoder sets the CAN ID of the C8315. The switch positions are hexadecimal numbers (0x0 to 0xF). The CAN address also defines the location of the module icon within the GUI overview of rows three to six. - Page 4 = CAN bus speed 1Mbit/s Important Note! For a limited number of modules like the C8315 it is possible to communicate with a CAN bus speed of 1MBit/s. This provides more bandwidth to move measuring data from the module via the frame controller to the J*AM based loudness logger.
- Page 5 The module overview of a frame (below the display of an example frame): By clicking on the spanner tool symbol you will be forwarded to the control pages of the C8315 and the status pane on the left hand side, which is also shown on mouse over.
- Page 6 MADI, DANTE and c8k internal BUS routing. There are presets for each of the three banks for the main function blocks of the C8315. Since the C8315 offers two interfaces each one has an individual bank of 16 presets to recall parameters at any time.
- Page 7 C8000 modular processing system C8315 64ch BNC MADI & AoIP I/O MADI refers to the MADI ROUTING pane Load [1: "name" … 16: "name"] Select a preset by number/name and press <LOAD>. The preset number and name loaded automatically appear in the Save as # and Name field below.
- Page 8 C8000 modular processing system C8315 64ch BNC MADI & AoIP I/O DEVICE: Display of device specific hardware information INFO Device Name [16 digit ASCII text] Pressing <CHANGE NAME> will do so. Platform [C8315] Hardware related descriptor. Parameter Version Software related descriptor (descriptor of the feature set).
- Page 9 C8000 modular processing system C8315 64ch BNC MADI & AoIP I/O DANTE INTERFACE Product Type [c8k_x] Customized version for the c8k system Product Version [x.y.z] HW of the DANTE OEM module Module [Brooklin II] DANTE OEM module Module Software [3.10.0]...
-
Page 10: Aoip Setup
General settings of the AoIP (Dante OEM) module used for the C8315 Important Note! This page content is informational only for the first release of the C8315. Parameters may only be changed by use of the DANTE Controller software from Audinate. - Page 11 C8000 modular processing system C8315 64ch BNC MADI & AoIP I/O Device Information Device Name The name that appears in an AoIP network. It may be set by the DANTE controller software. Device Access Lock Status [Device Unlocked / Device Locked] Display if the device access from the network controller is locked or not.
- Page 12 The sync source for the Dante interface is the AoIP network. If no network cable is connected the interface is "Unlocked". If it is connected to a network it will be "Locked". If the C8315 is set to synchronize to other than the AoIP interface it will show "Locked-Async".
- Page 13 C8000 modular processing system C8315 64ch BNC MADI & AoIP I/O FAST ROUTING: Easy to use matrix for routing of groups of signals with a single button. MADI Transmitter Routing destination for the MADI interface. 16 adjacent MADI channels are grouped for fast routing.
- Page 14 C8000 modular processing system C8315 64ch BNC MADI & AoIP I/O MADI Receiver Routing sources of the MADI interface. 16 MADI channels are grouped for fast routing. I.e. you can select a group of 16 source channels from the MADI input and route them to one of the available destination groups.
- Page 15 C8000 modular processing system C8315 64ch BNC MADI & AoIP I/O From C8000 System Bus 2Ch Mode [S1 … S32 … --] One of the 32 bus lines of the c8k back plane. Two audio channels are put onto one bus line.
- Page 16 C8000 modular processing system C8315 64ch BNC MADI & AoIP I/O AOIP ROUTING This pane shows the possible sources for the AoIP interface. The above example is the result of the FAST ROUTING settings above. From C8000 System Bus 2Ch Mode [S1 …...
-
Page 17: Bus Routing
C8000 modular processing system C8315 64ch BNC MADI & AoIP I/O MADI [Ch1/2 … Ch63/64] One of the 32 channel pairs provided by the MADI interface AoIP [Ch1/2 … Ch63/64] One of the 32 channel pairs sent to the AoIP interface... - Page 18 C8000 modular processing system C8315 64ch BNC MADI & AoIP I/O Enable BUS Driver [ON / OFF] You can disable the output drivers by un-checking the Enable Bus Driver check box. The state of this check box also depends on the setting of SW2 on the module PCB.
- Page 19 C8315 64ch BNC MADI & AoIP I/O GPIO The C8315 has three dedicated sets of GPI/Os to remote control the MADI-, the AoIP- and the Bus Presets. GPIs are useful if you want to recall settings remotely (e.g. via presets).
- Page 20 The c8k frame can handle 127 different virtual (system) GPO numbers. If an event occurs, the C8315 puts the assigned number on the CAN bus so a C8817 GPI/O module can engage a relay or the brc8x may activate its tallies.
