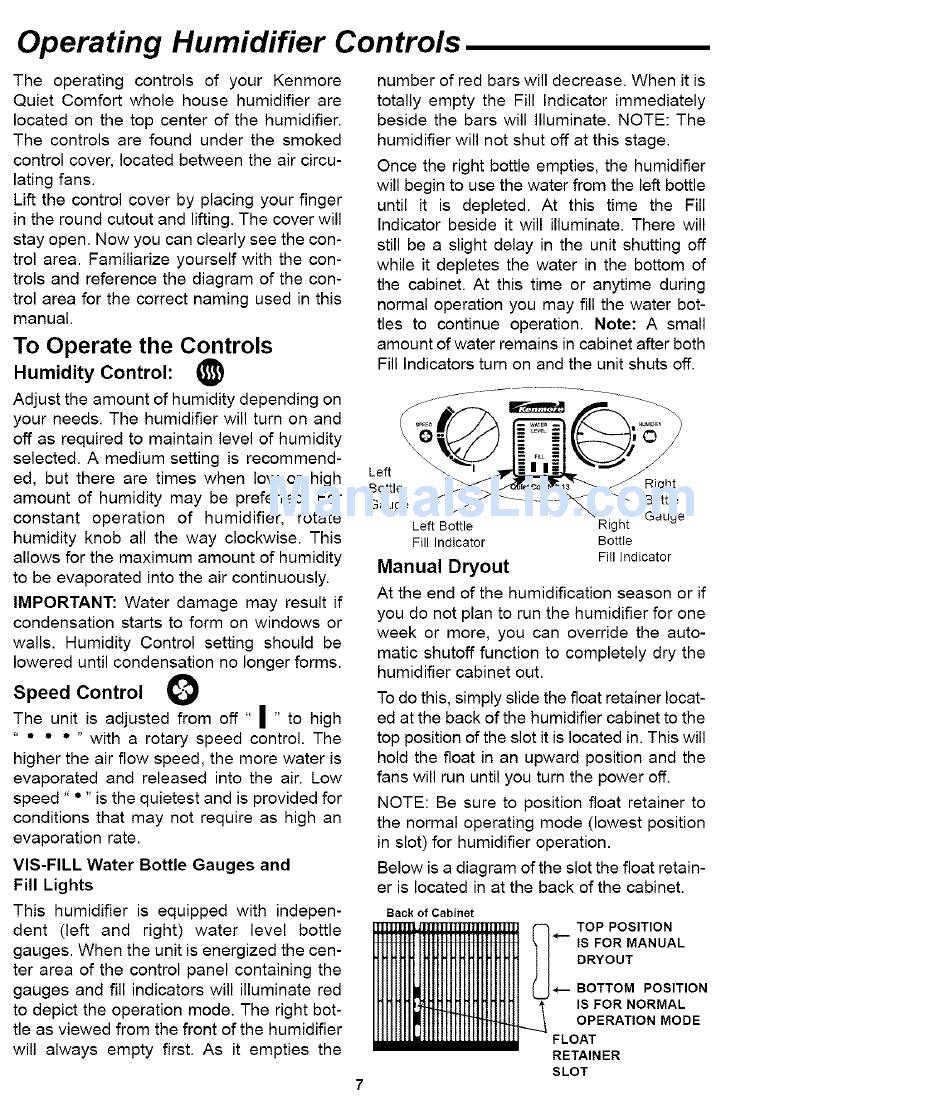

Operating Humidifier
Controls
The
operating
controls
of your
Kenmore
Quiet
Comfort
whole
house
humidifier
are
located
on the top center
of the humidifier.
The controls
are found
under the smoked
control
cover, located
between
the air circu-
lating fans.
Lift the control
cover
by placing
your finger
in the round cutout
and lifting. The cover will
stay open. Now you can clearly
see the con-
trol area.
Familiarize
yourself
with the con-
trols and reference
the diagram
of the con-
trol area for the correct
naming
used in this
manual.
To Operate
the Controls
Humidity Control:
O
Adjust
the amount
of humidity
depending
on
your needs.
The humidifier
will turn on and
off as required
to maintain
level of humidity
selected.
A medium
setting
is recommend-
ed, but there
are times
when
low or high
amount
of humidity
may be preferred.
For
constant
operation
of
humidifier,
rotate
humidity
knob
all the way
clockwise.
This
allows
for the maximum
amount
of humidity
to be evaporated
into the air continuously.
IMPORTANT:
Water
damage
may
result
if
condensation
starts to form
on windows
or
walls.
Humidity
Control
setting
should
be
lowered
until condensation
no longer forms.
Speed Control
O
The unit is adjusted
from
off " | " to high
" " " " " with
a rotary
speed
control.
The
higher
the air flow speed, the more water
is
evaporated
and released
into the air. Low
speed"
"" is the quietest
and is provided
for
conditions
that may not require
as high an
evaporation
rate.
VIS-FILL
Water
Bottle Gauges
and
Fill Lights
This
humidifier
is equipped
with
indepen-
dent
(left
and
right)
water
level
bottle
gauges.
When the unit is energized
the cen-
ter area of the control
panel containing
the
gauges
and fill indicators
will illuminate
red
to depict the operation
mode.
The right bot-
tle as viewed
from the front of the humidifier
will
always
empty
first.
As it empties
the
number
of red bars will decrease.
When
it is
totally
empty
the Fill Indicator
immediately
beside
the bars will illuminate.
NOTE:
The
humidifier
will not shut off at this stage.
Once the right bottle empties,
the humidifier
will begin to use the water from the left bottle
until
it is depleted.
At
this
time
the
Fill
Indicator
beside
it will illuminate.
There
will
still be a slight delay in the unit shutting
off
while it depletes
the water
in the bottom
of
the cabinet.
At this time
or anytime
during
normal
operation
you may fill the water bot-
tles to continue
operation.
Note:
A small
amount
of water remains
in cabinet
after both
Fill Indicators
turn on and the unit shuts off.
Left
Bottle
_
Right
Gauge
Bottle
Left Bottle
Right
Gauge
Fill Indicator
Bottle
Fill Indicator
Manual Dryout
At the end of the humidification
season
or if
you do not plan to run the humidifier
for one
week
or more,
you can override
the auto-
matic shutoff
function
to completely
dry the
humidifier
cabinet
out.
To do this, simply slide the float retainer locat-
ed at the back of the humidifier
cabinet
to the
top position
of the slot it is located
in. This will
hold the float in an upward
position
and the
fans will run until you turn the power off.
NOTE:
Be sure
to position
float
retainer
to
the normal
operating
mode
(lowest
position
in slot) for humidifier
operation.
Below is a diagram
of the slot the float retain-
er is located
in at the back of the cabinet.
Back of Cabinet
TOP POSITION
IS FOR MANUAL
DRYOUT
BOTTOM
POSITION
IS FOR NORMAL
OPERATION
MODE
FLOAT
RETAINER
SLOT
