ADDICTIVE DESERT DESIGNS®
Preparation:
• Disconnect the negative battery terminal. Park the vehicle on level ground and set the emergency brake.
• We recommend reading through the installation instructions in whole before performing the work.
• Estimated Installation Time: 2 Hours
**This installation requires 2 people for best results**
You will need the following tools:
- Ratchet
- 10mm Socket
- 9/16" Socket
- Reciprocating Saw
Included in Kit:
2 - Black Button Head Bolts
2 - Black Lock Nuts
2 - Flat Washers
1 - Winch Plate
Removal:
1. From underneath the truck, unplug the fog light connectors.

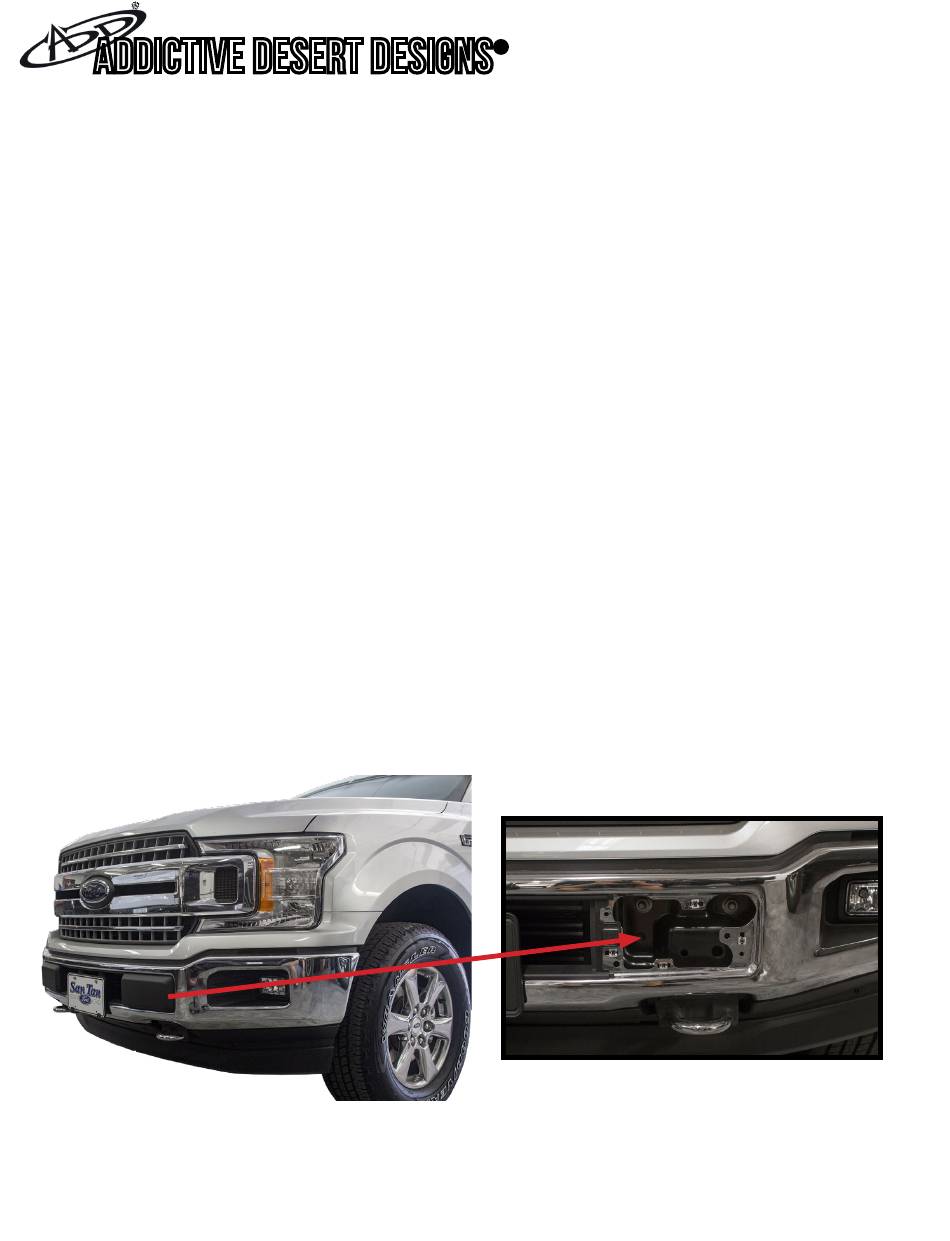

2. Pull the front plastic pods off each end of the OEM bumper. There are no tools required for this step, they
simply pull off by hand. (Fig A)
Fig A
Addictive Desert Designs® | Page 1
- 5.5mm Socket
- 21mm Socket
- 15mm Socket
- Black Paint
(1/2"-13 x 1 1/2")
(1/2"-13)
(3/8")
2018-Current Ford F150
Stealth™ R Front Bumper Installation Instructions
- 7mm Socket
- 3/4" Socket or Wrench
- 5/16" Allen Wrench/Socket
4 - Black Washers
(1/2")
2 - Grade 8 Bolts
(3/8"-16 x 1 1/2")
2 - Extruded U-Nuts
(3/8"-16)
