ADD 2007-2013 GMC 1500 Installation Instructions

Venom front bumper

Addictive Desert Designs

Preparation:

• Disconnect the negative battery terminal. Park the vehicle on level ground and set the emergency brake.

• We recommend reading through the installation instructions in whole before performing the work.

• Estimated Installation Time: 2 Hours

**This installation requires 2 people for best results**

You will need the following tools:

- Ratchet

- 18mm Socket

- Stock Hardware is Reused

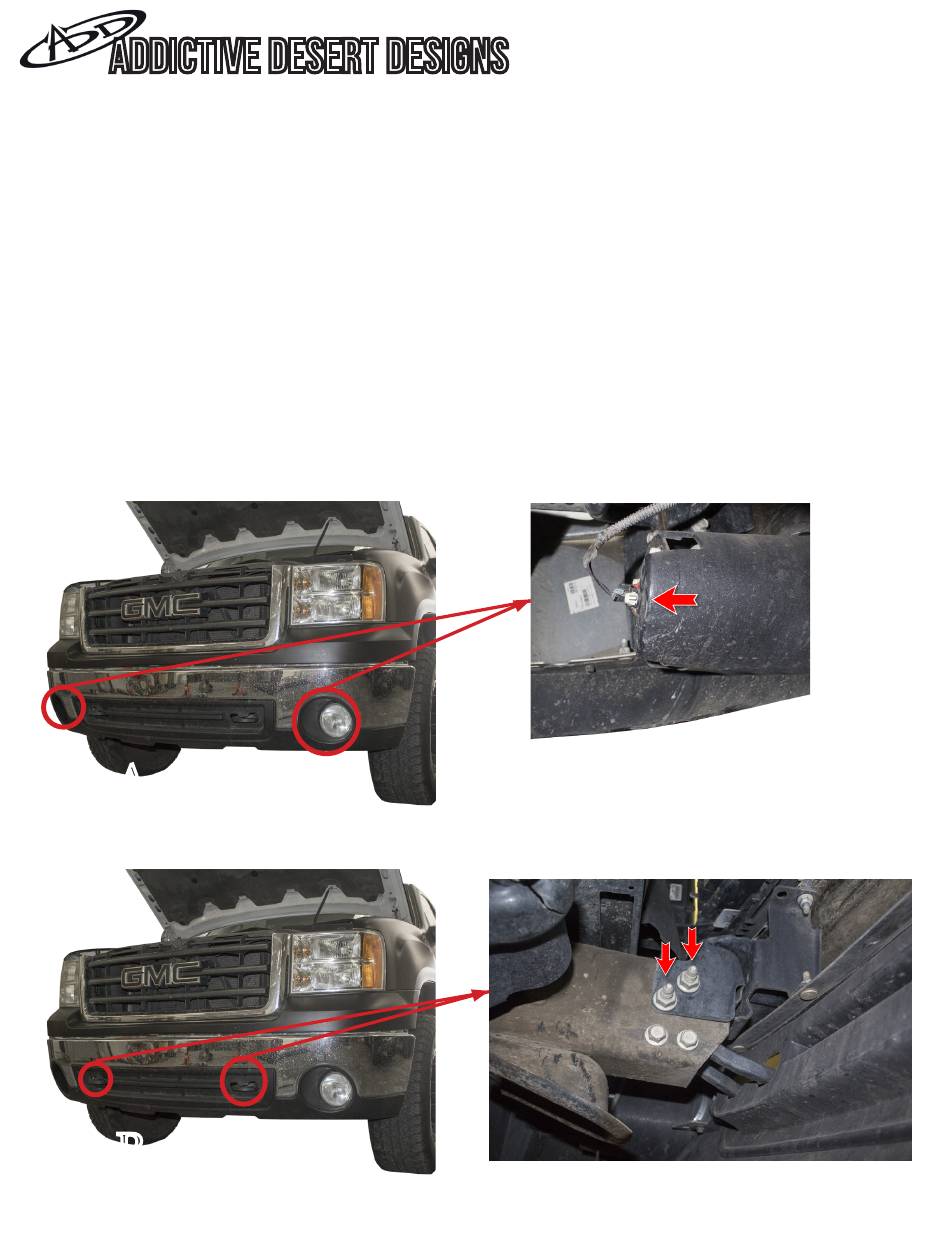

1. From underneath the truck, unplug both fog light connectors. (Fig A)

Fig A

2. From underneath the truck, use a 13/16" Socket to loosen the Main Bumper Mounting Nuts (x4). Then,

remove these bolts. (Fig B)

Fig B

Addictive Desert Designs | Page 1

- 13/16" Socket

- Cutoff Wheel

2007-2013 GMC 1500

Venom Front Bumper Installation Instructions

- 15mm Socket

- Black Paint

Table of Contents

Do you have a question about the 2007-2013 GMC 1500 and is the answer not in the manual?

Page 1 Addictive Desert Designs 2007-2013 GMC 1500 Venom Front Bumper Installation Instructions Preparation: • Disconnect the negative battery terminal. Park the vehicle on level ground and set the emergency brake. • We recommend reading through the installation instructions in whole before performing the work.
Page 2 Addictive Desert Designs 2007-2013 GMC 1500 Venom Front Bumper Installation Instructions 3. On each side of the truck, there are two bolts that hold the bumper support bar to the truck's frame. Use a 15mm Socket to remove these bolts. (Fig C) Fig C 4.
Page 3 Fig F 7. Using a 15mm Socket, remove the skid plate mounting bolts (x4). Then, remove the skid plate. (Fig G) Fig G 8. Prepare to install your new ADD Venom Front Bumper. Addictive Desert Designs | Page 3...
Page 4 Addictive Desert Designs 2007-2013 GMC 1500 Venom Front Bumper Installation Instructions Installation: 9. Set your new bumper in place. Reinstall the hardware from Step 2 to hold the bumper in place. Leave these bolts loose for now. (Fig H) Fig H 10.
Page 5 2007-2013 GMC 1500 Venom Front Bumper Installation Instructions 12. Stand back and enjoy your new ADD Venom Front Bumper. 13. Check and re-tighten all mounting bolts, if needed, after 100 miles and periodically thereafter. For Additional Support or Technical Questions Please call 480-671-0820 Email info@addictivedesertdesigns.com...
