Kenmore 461-5949 User Manual

Portable 3-1n-1 home comfort
Hide thumbs

Advertisement

Quick Links

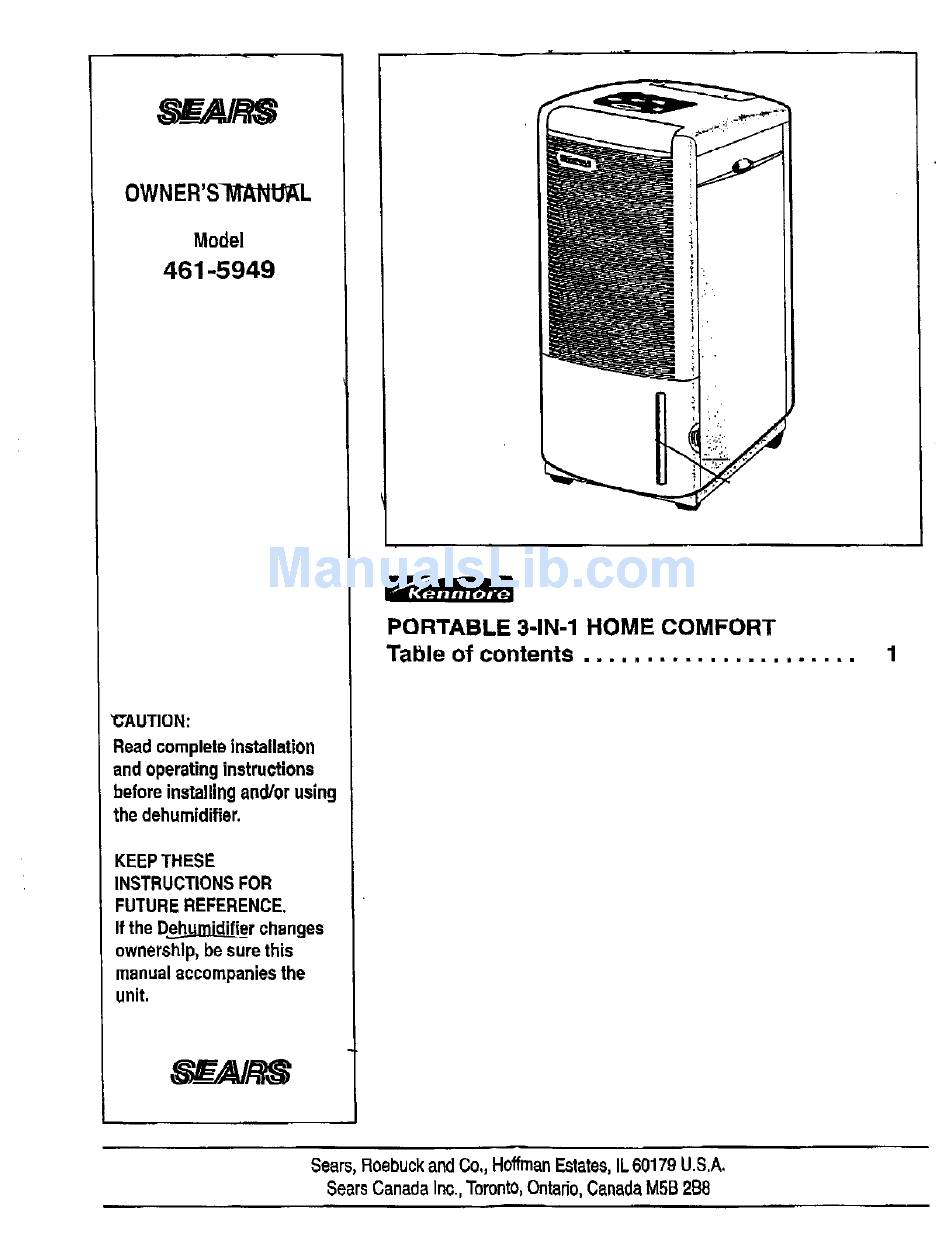

OWNER'SWtANUAL
Model
461-5949
"CAUTION:
Read complete installation
and operating instructions
before installing and/or using
the dehumidifier.
KEEPTHESE
INSTRUCTIONS FOR
FUTURE REFERENCE.
If the D_i_er
changes
ownership, be sure this
manual accompaniesthe
unit.
PORTABLE
3-1N-1 HOME COMFORT
Table of contents
......................
Sears,Roebuckand Co,, HoffmanEstates,IL 60179 U.S.A.
SearsCanada Inc.,Toronto, O ntario,CanadaMSB2B8

Advertisement

loading

  Summary of Contents for Kenmore 461-5949

  • Page 1 KEEPTHESE INSTRUCTIONS FOR FUTURE REFERENCE. If the D_i_er changes ownership, be sure this manual accompaniesthe unit. Sears,Roebuckand Co,, HoffmanEstates,IL 60179 U.S.A. SearsCanada Inc.,Toronto, O ntario,CanadaMSB2B8 PORTABLE 3-1N-1 HOME COMFORT Table of contents...
  • Page 2: Warnings, And Important Notices

    Introduction Warnings, and Important Specifications Features and Parts ... Key Pad Functions Operating Instructions Care and Maintenance Storage ... Trouble Shooting Guide ... Warranty 0147 SEARS Notices i.pn.oo,o,lw, .,.o=w,.,.==o,.w.=.,o.almJmwoo..o- ,oo.b,=.=o,_mwm.w.oo.,_° q...,_ooP, w'_i,ll o.ooo,w,,o.=ilq,o,.,,mlmmll°.,_m=. qm,° qm.ouolo_,o...-.oo.o.._m°o,o wwm,_.oo°. o,,,D.. lloo=ooww meoo.omhmliwo=.,..ol _019...
  • Page 3 Independent you attach a copy of your sales slip/receipt to this page, along with the nameplate if your unit requires servicing and/or for general inquiries. call Sears Service TOLL FREE. (1-800-469-4663) Keep these instructions for future reference. symbol denotes...
  • Page 4 NOTE; The WARNING instructions situations that may occur. It must be understood that cannot be built into all appliances. maintaining, or operating the appliance. to the manufacturer's instructions damage. Contact your dealer, service not fully understand. FOR YOUR SAFF'I"Y - To reduce the risk of fire or explosion, do not store or use gasoline or other flammable vapors or Ilqu(ds in the vicinity of this or any other appliance.
  • Page 5 Dehumidifying Capacity Etectdeal Requirements Power input !wafts) Dehumidifier / Heating Rated Amperage • Dehumidi_ing • Heatin9 Fan (wa e) Air Flow Circulation [Cubic Feet per Minute) Type of Refrigerant...
  • Page 6 • Soft Touch (Electronic) Control Key Pads • Auto-Sensing Humidity Control • Adjustable Humidity Settings (50%,60%,70%,80%, Continuous) • Thermostatically Controlled Heat Settings (Range 10" -32" "C/48"-92"" F) • PTC Heater Output (1150watts High/950 watts Low) • 2 Fan Speed Settings (High/Low all Modes) •...
  • Page 7 DRY: is abbreviated for "DI=HUMIDIP{ FqH: is abbreviated for "Relative Humidity" "C: is abbreviated for the "Celsius" scale "F: is abbreviated for the "Farenheight mscale On/Off Fleshing Light When the unit is first connected to an electrical (outlet) power s_Jpply, the (green) pilot light located above the "ON/OFF"...
  • Page 8 The water full light flashes continuously and an audible alarm will sound (8 beeps) to notify you when the water tank is full end/or is not propedy positioned inside the cabinet, The dehumidifier will cease (stop) ell operation automatically, during this condition, feature.) Heat &...
  • Page 9 Depending on the mode selected, this keypad performs the following function, DRY Mode: Allows you to select a Relative Humidity setting (Continuous, 50%, 60%, 70%, 60%). Performs the same basic function as the "DRY" key pad- HEAT: Allows you to adjust/Increase (upward) required temperature settings.
  • Page 10 Select a suitable location, making sure you have easy access to an electrical outlet, Dehumidifying is a means of removing moisture from the air. A dehumidifier will help to protect your home and vetued possessions from damage caused by moisture (swelting) during high humidity conditions.
  • Page 11: Heat Mode

    "/,3"o_ 4_b Selecting a Relative Humidity All of the settings on your dehumidifier are electronically controlled. 50% maintains a 50% Relative Humidity level 60% maintains a 60% Relative Humidity level 70% maintains a 70% Relative Humidity level 80% maintains a 80% Relative Humidity level "CONTINUOUS"...
  • Page 12 Adjustable Air Flow Direction: The adjustable air flow discharge port is located on the top of the dehumidifier. (See Fig. I). 1. The word "PUSH" is stamped on each side of the air discharge cover. Push these locations and the air discharge port will rotate (open) approximately 85",...
  • Page 13 4. Rinse the filter with fresh clean water. Allow time to dry before re-installing inside the unit. NEVER WASH OR DRY THE FILTER IN A DISHWASHER, 5. Replacement air filters are available through your local Sears Parts Department.(1-800-366-PART) 0147 SEARS in the Fig.
  • Page 14 Direct Drain Feature: Your dehumidifier is featured with a standard 1" diameter garden hose connection. ('l'he drain hose is not included with the unit, it can be purchased at any local hardware store).
  • Page 15 • When the dehumidifier Is not being used for long time periods, please follow these Instructions. 1. Disconnect the power cord from the power supply. 2. Empty the water tank and wipe (clean) thoroughly. 3. Clean air filter thoroughly 4. Re-package the unit in the original carton.
  • Page 16: U.s.a. Only

    F_e15) Years Five{5)Years One (1) Year O_ p)'fear NrC_ndit_one_ &Oehun',_fe_ a ddand _ Normal r esponsibility ofthe Customer to the. Sears Roebuck and Co,, Dept. S17WA, Hoffman Estates, IL. U.$,A. 60179 ONLY InstallRepaired or Replacement Partfor: _ve (S) Y ear= toozo/_taMoP/wammly.
  • Page 17 Call 7 am - 7 pro, 7 days a week 1-800-366-PART (1-800-366-7278) For the location of a Sears Parts and Repair Center in your area: Call 24 hours a day, 7 days a week 1-800-488-1222 For information...
