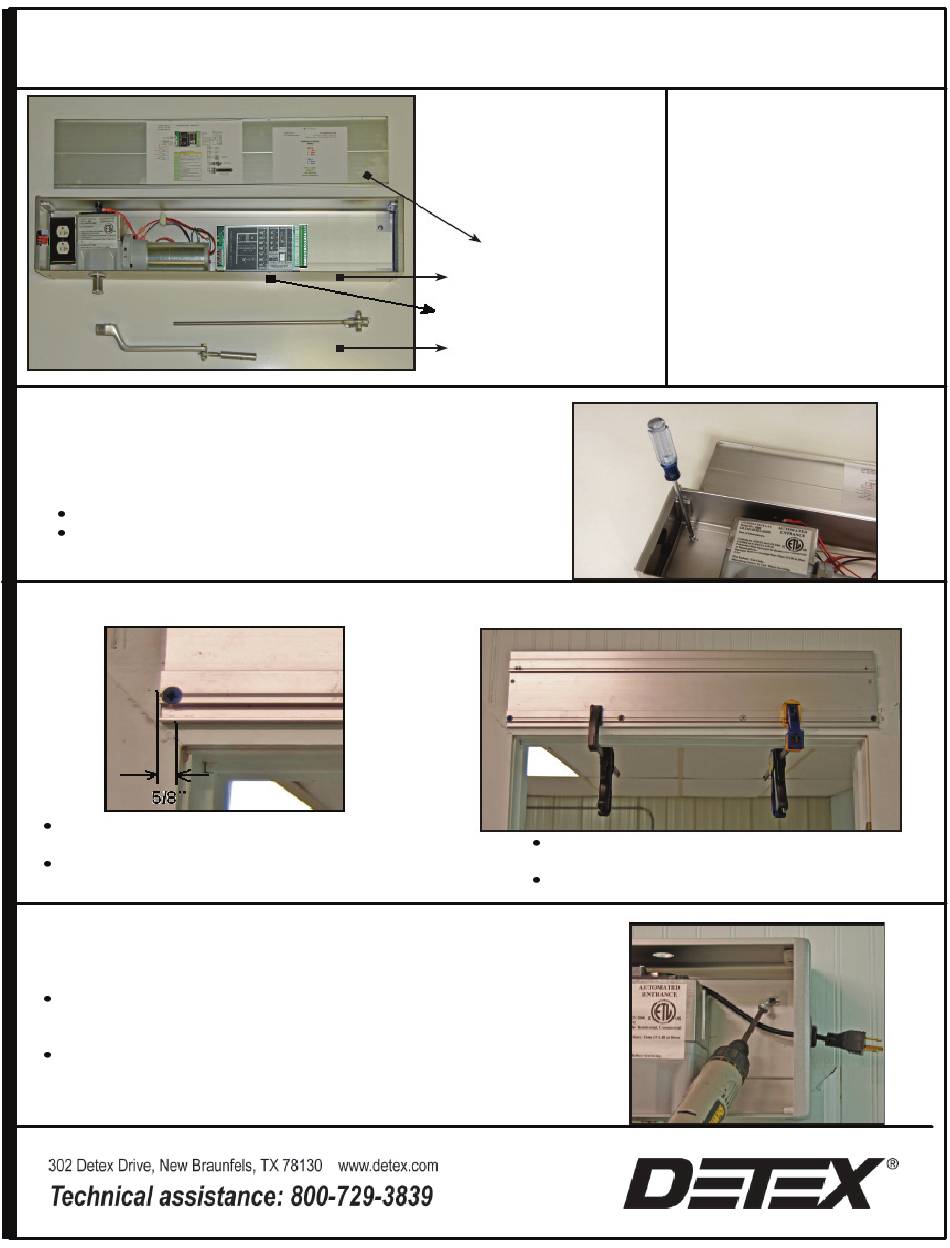

Detex AO19 Quick Install Manual

INSTALLATION – PUSH MODEL
1. INSTALLATION PREPARATION
Locate Phillips screws inside at the top corners.
Remove these screws and separate the header
from the hanger plate
2. INSTALLATION OF HANGER PLATE
The hanger plate should be located 5/8" from the
outside edge of the hinge jam.
It should be level and flush with the bottom of the
header.
3. PLACE OPERATOR ON HANGER PLATE
Lift the operator and lower into webs of the hanger plate. Ensure both top
and bottom are engaged.
Once seated, gently pull down until the unit is completely flush and secure
with screws on top corners.
Quick Install Guide For Model AO19
Low Energy Automatic Door Operator
Push Type
Automatic Door Operator
Controller Module
P/N 104792
3-Point Arm Assy.-Push
P/N 104798
Cover
AO19 Low Energy
Note: Secure to solid foundation or wall studs.
Secure hanger plate with vise clamps to the
header and drill 3/16" holes.
Fasten hanger plate.
P/N 103186
July 3, 2008
Parts Needed
1. Header Box/Cover
2. AO19 Operator
3. 3-Point Arm Assy – Push
4. Controller Module
Tools Required
1. Phillips Screwdriver
2. Vise Clamps
3. Ladder
4. Appropriate screws to
secure to wall
5. Safety Glasses
Pg. 1
