Detex AO19 Installation Manual
Low energy automatic door operator control module
Hide thumbs
Also See for AO19:
- Quick install manual (2 pages) ,
- Instructions manual (12 pages) ,
- Repair manual (7 pages)
Advertisement
Quick Links
INSTALLATION GUIDE FOR

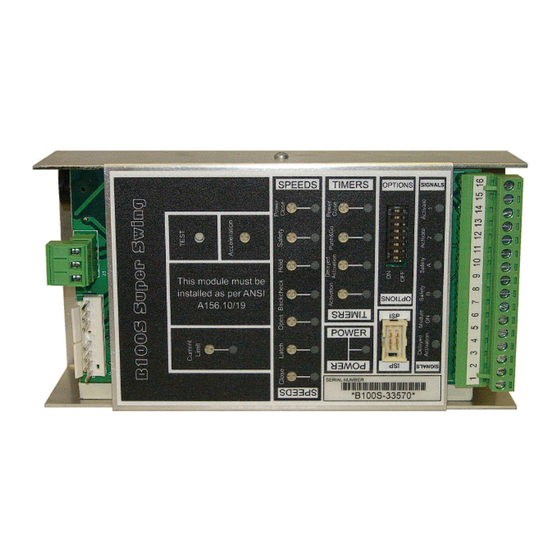

AO19 LOW ENERGY AUTOMATIC DOOR OPERATOR CONTROL MODULE
B1000S – SUPER SWING
User Manual
Date: July 3, 2008
Note:
This product is a low energy automatic door operator and must be installed /
serviced by a qualified person . The service technician must be familiar with the
latest ANSI /BHMA A156.10/19 standards .
NEVER sacrifice the safe operation of the automatic door for an incomplete
solution. Call the factory for technical support .
P/N 103188
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Detex AO19
Summary of Contents for Detex AO19

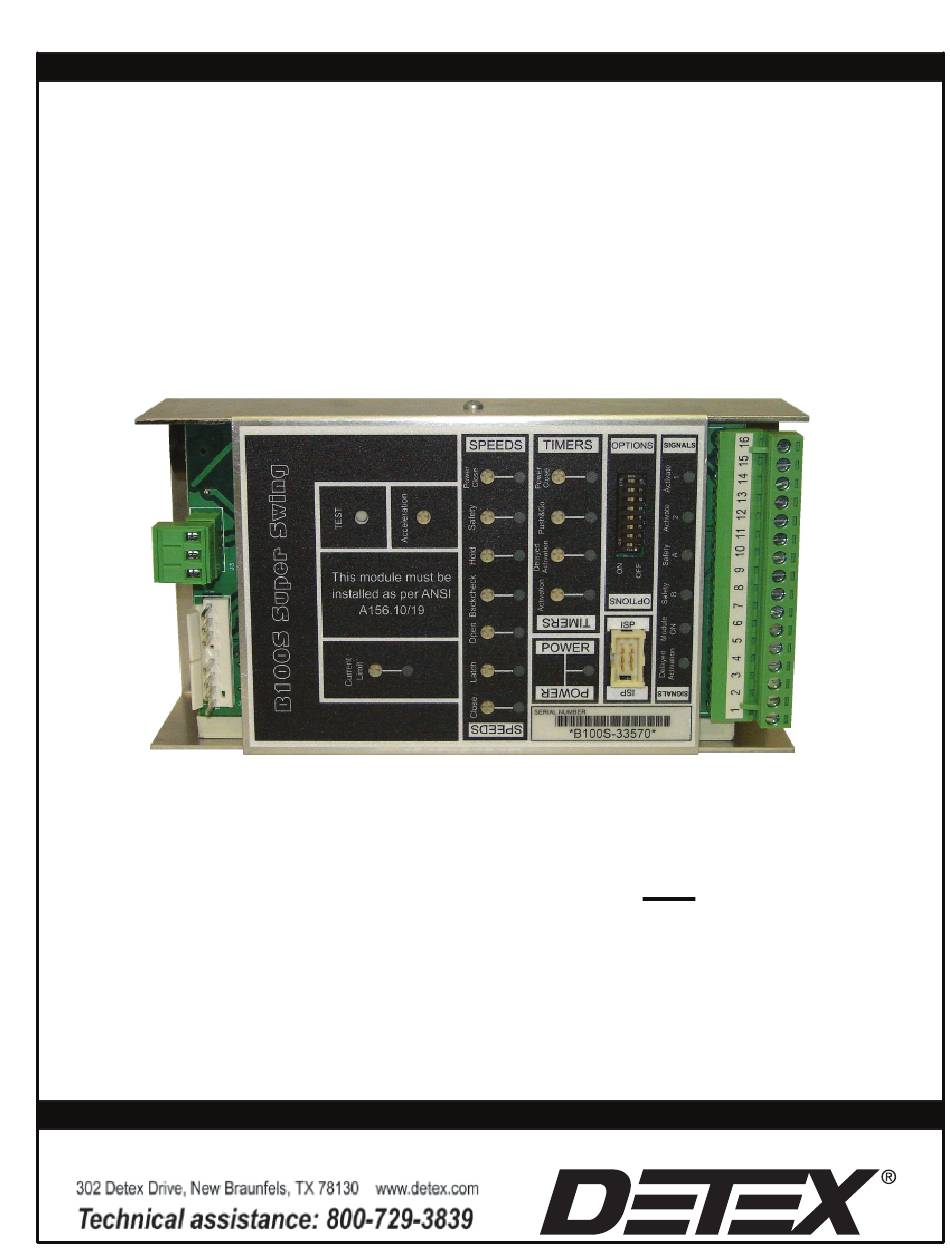

- Page 1 INSTALLATION GUIDE FOR AO19 LOW ENERGY AUTOMATIC DOOR OPERATOR CONTROL MODULE B1000S – SUPER SWING User Manual Date: July 3, 2008 Note: This product is a low energy automatic door operator and must be installed / serviced by a qualified person . The service technician must be familiar with the latest ANSI /BHMA A156.10/19 standards .
- Page 2 AO19 Low Energy Automatic Door Operator Module Description / Connector Pinouts ISP / Synchronization Connector J 1 ISP – (In System Programmer ) FACTORY USE ONLY Synchronization – This connector is used to synchronize two modules together (For Dual door operator ). Synchronization cable , part number 104785. When the synchronization cable is used , the activation switch (es) can be wired to only one module .
- Page 3 Signal and Sensor Power Connector – P2 Signal Definition High - Low J2.1 Logic ground Energy Ground reference for signals and power. J2.2 Activation 1 This signal to ground will activate the operator. If the module is in the ON mode (Low voltage ON/OFF must be to ground) and no current fault is present.
- Page 4 Refer to ANSI/BHMA A156.10 / 19...
- Page 6 Refer to ANSI /BHMA A156.10 / 19 for more information...
- Page 7 Refer to ANSI /BHMA A156.10 / 19 for more information...
- Page 9 Dual Door Operator Sync Cable P /N 104785 For dual door operator , plug Sync Cable P/N 104785 as shown below. When using the Sync cable, only one control maybe wired to the switches . All signals are shared between the two controls using the sync cable, except for the “Delayed Activation”...
