Instruction manual

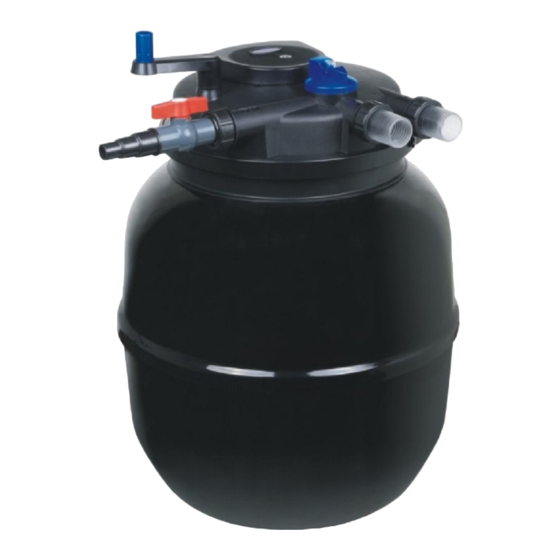

Wiltec Pressure Pond Filter
80.000 / UVC 55 W (CPF-50000)
ARTICLE 51187
Read and follow the operating instructions and safety information before using for the
first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps and technical data can
differ insignificantly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities please con-
tact us.
© by WilTec Wildanger Technik GmbH
Seite 22
http://www.wiltec.info
