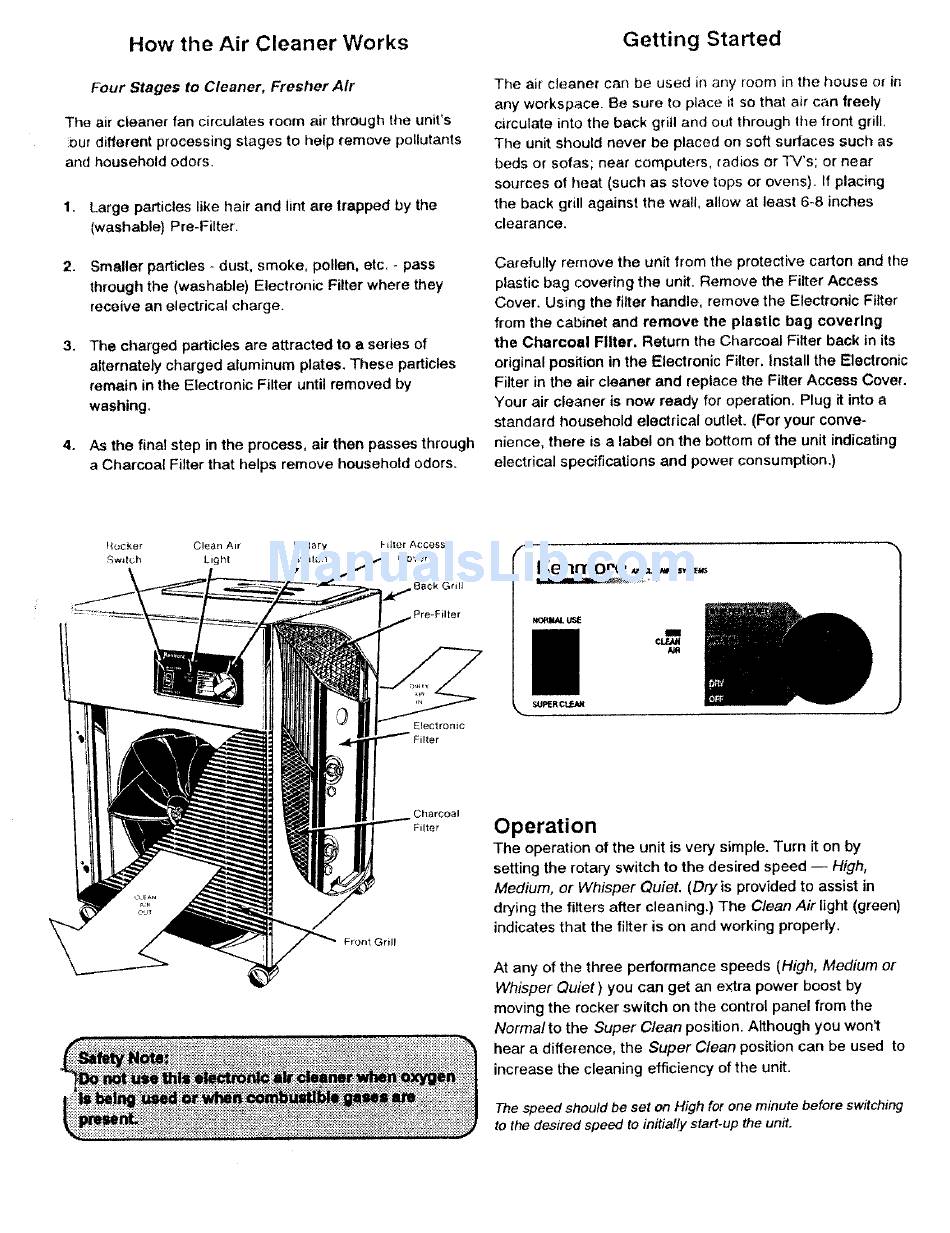

How the Air Cleaner
Works
Four Stages
to Cleaner,
Fresher
Air
The air cleaner fan circulates
room air through
tl_e unit's
Our different
processing
stages
to help remove pollutants
and household
odors.
1=
2.
3,
4.
Large particles
like hair and lint are trapped
by the
(washable)
Pre-Filter.
Smeller particles - dust, smoke, pollen, etc. - pass
through the (washable) Electronic Filter where they
receive an electrical charge.
The charged particles are attracted to a series of
alternately charged aluminum plates, These particles
remain in the Electronic Filter until removed by
washing,
As the final step in the process, air then passes through
a Charcoal Filter that helps remove household odors.
Getting
Started
The air cleaner
can be use(] in any room in the house
or in
any workspace.
Be sure to place it so that air can freely
circulate
into the back grill and out through
the front grill,
The unit should
never be placed on soft surfaces
such as
beds or sofas;
near computers,
radios
or TV's; or near
sources
ot heat (such as stove tops or ovens).
If placing
the back grill against the wall, allow at least 6-8 inches
clearance,
Carefully remove the unit from the protective carton and the
plastic bag coveting the unit. Remove the Filter Access
Cover. Using the filter handle, remove the Electronic Filter
from the cabinet and remove the plastic bag covering
the Charcoal
Filter, Return the Charcoal Filter back in its
original position in the Electronic Filter, Install the Electronic
Filter in the air cleaner and replace the Filter Access Cover.
Your air cleaner is now ready for operation, Plug it into a
standard household electrical outlet. (For your conve-
nience, there is a label on the bottom of the unit indicating
electrical specifications
and power consumption.)
Charcoal
Filter
F_ont Grill
f
SUPERCLE._
Operation
The operation of the unit is very simple. Turn it on by
setting the rotary switch to the desired speed -- High,
Medium, or Whisper Quiet. (Dry is provided to assist in
drying the filters after cleaning.) The Clean Air light (green)
indicates that the filter is on and working properly.
At any of the three performance
speeds (High, Medium or
Whisper Quiet ) you can get an extra power boost by
moving the rocker switch on the control panel from the
Normalto
the Super Clean position. Although you won't
hear a difference, the Super Clean position can be used to
increase the cleaning efficiency of the unit.
The speed should be set on High for one minute before switching
to the desired speed to initially start-up the unit.
