PAC GM1A-RT User Manual

GM1A-RT
Introduction and Features

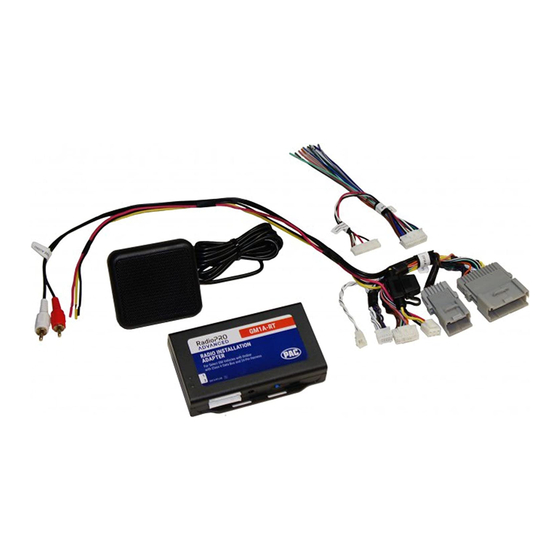

The GM1A-RT interface allows the replacement of a factory radio in select General Motors vehicles with the Class II Data-Bus.
Using this interface will retain factory features such as OnStar, warning chimes and the factory Bose amplifier when the original
radio is removed. The GM1A-RT provides data bus driven outputs such as retained accessory power (RAP), vehicle speed signal
(VSS), illumination, reverse trigger and parking brake. The GM1A-RT also provides an SWI Direct output for adding an optional
PAC Steering Wheel Control (SWC) retention interface (SWI-RC or SWI-CP2). Rear Seat Controls (RSC) if equipped will also
be retained with the SWI interface. You can also add multiple camera inputs to your aftermarket radio with Data-Bus controlled
automatic activation (front camera only) by connecting a VS41 into the expansion port on the GM1A-RT.
Important Notes
1. The included chime speaker should be used when: The vehicle has a standard Bose system (UQ7), the vehicle does not have
a factory amplifier at all, or if you are connecting an aftermarket amplifier to the cabin speakers.
2. The Programming Button and Adjustment Dial on the side of the interface have multiple functions. Please see Page 3 for
more details.
3. Compatible in both Premium Bose (Y91 / UQA) and Standard Bose systems.
4. Real time speaker fading on Premium factory amplified systems (UQA / Y91) is only supported with the "amplified output"
connection of the GM1A-RT.
5. When using real time speaker fading (Premium Bose only), if the fader setting is biased more to the front or rear, as the radio
turns on the sound may begin at the default setting and then quickly transition to your custom setting.
6. Aftermarket radio features such as High Pass Filters (crossovers), DSP or "Network Mode" will interfere with proper fader
function (Premium Bose Only). In order for the GM1A-RT's fader function to work, the audio from the aftermarket radio's
output must match so it can compare the front and rear audio levels and determine the proper fader setting for the factory
amplifier.
7. When used in conjunction with the add on camera controller (VS41) the GM1A-RT will only provide Data-Bus controlled
automatic activation for the front camera. Please refer to the vehicle specific VS41 instructions for more detail.

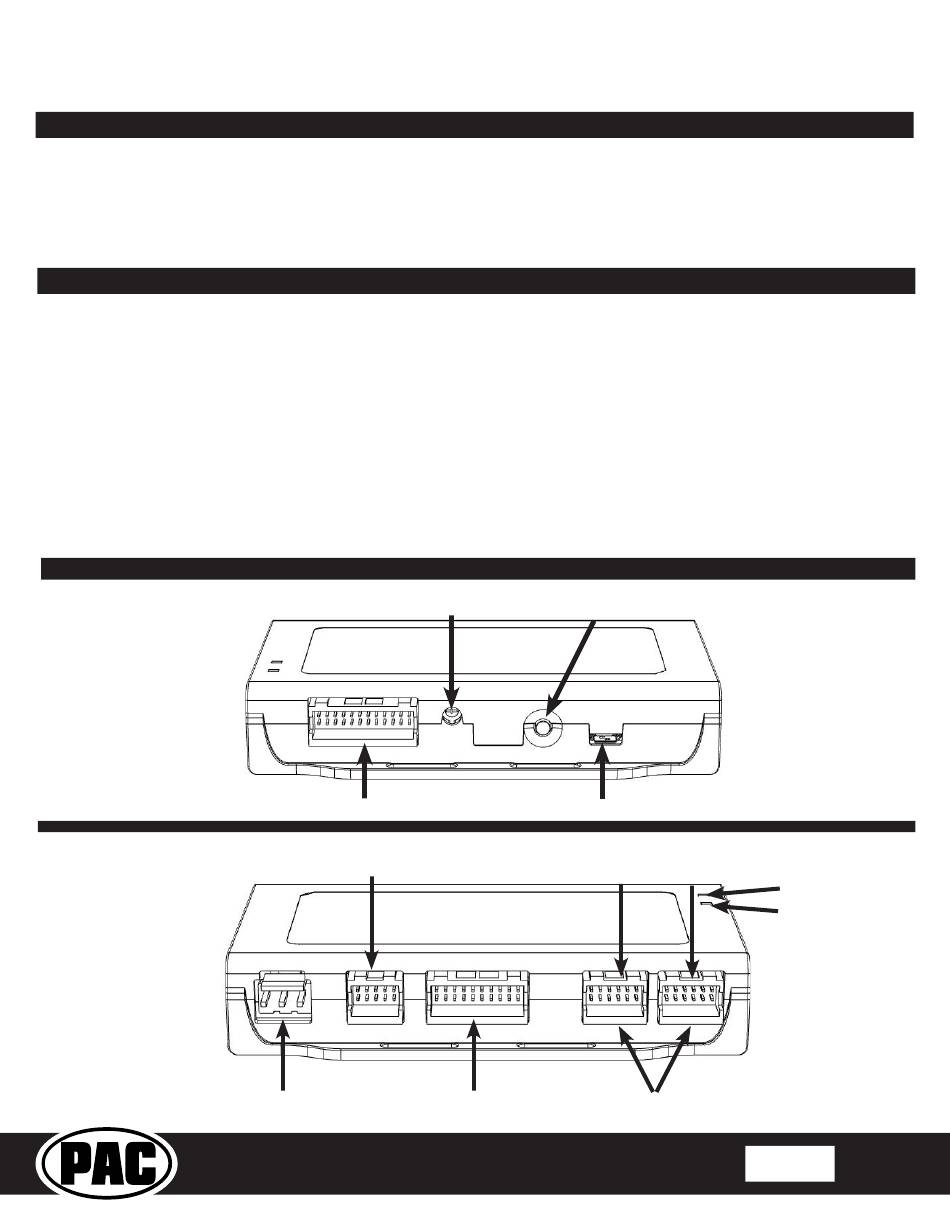

Module Layout
Pacific Accessory Corporation
Interface Connector 4
Expansion Port
Interface Connector 1
© 2018 AAMP Global. All rights reserved. PAC is a Power Brand of AAMP Global.
Adjustment Dial Programming Button
USB Port
Non-Amplified
Audio Output
Interface Connector 2
PAC-audio.com
Radio Replacement Interface with
for select General Motors Vehicles
with Class II Data-Bus
Amplified
Audio Output
Interface Connector 3
Rev: V6
Date: 092718
Telematics Retention
LED 1
LED 2
Page 1
