PAC BCI-FD21 Instructions

BCI-FD21
Introduction & Features

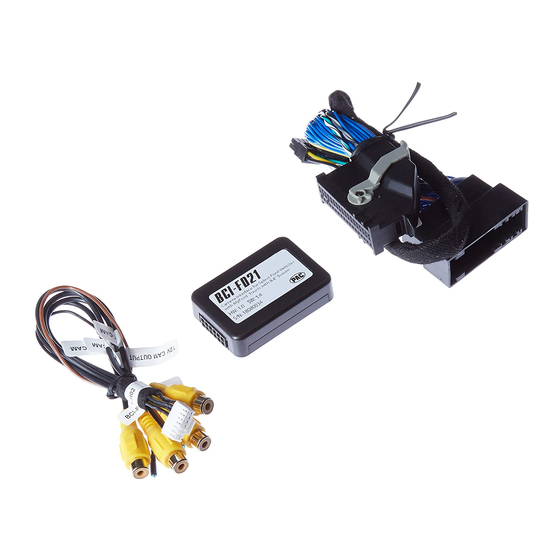

The BCI-FD21 is a camera interface that will work with vehicles with or without a factory reverse
camera. For vehicles with a factory reverse camera, it will allow the addition of front and side camera
inputs. For vehicles without a factory reverse camera, it will program the factory radio to allow the
addition of a reverse camera input and will allow the addition of front and side camera inputs.
Important Notes
1. It is very important to follow the exact sequence of installation steps as listed below. Failure to do so will result in the interface
not working as intended.
2. Installation should be done with the ignition off.
3. If you change the dip switch settings, you must disconnect and reconnect the power plug for the changes to take effect.
4. Camera inputs must be selected via dip switch setting for the interface to function properly. If not, the radio may display a blank
screen for as long as 15 seconds or display "CAMERA FAULT". Be sure to set camera input dip switches according to your
installation.
5. This product can only be programmed to a single vehicle. If you need to install the BCI-FD21 in another vehicle it must be
unlocked from the prior vehicle first. See instructions on page 3.
Vehicle Compatibility
Product Configuration
ON
1 2 3 4
ON
LED
1 2 3 4
See
Page 4
Model
Ford C-MAX
2013-2015
Ford Edge
2013-2016
Ford Escape
2013-2015
Ford Expedition
2015-2016
Ford F-150 / Raptor
2013-2016
Ford Flex
2013-2016
Ford Focus
2013-2016
Camera Input Configuration
See side chart
Vehicle Configuration
See next page
PAC | Ph. 866-931-8021 | support@pac-audio.com
© 2016 AAMP Global
www.pac-audio.com
Camera Interface for Select Ford & Lincoln Vehicles with
MyFord Touch or MyLincoln Touch 8.4" Radios
Year Model
Ford Fusion
Ford Mustang
Ford Taurus
Ford Transit
Lincoln MKS
Lincoln MKT
Lincoln MKX
Camera Input Configuration
ON = Rear camera ON
Dip 1
OFF = Rear camera OFF
ON = Front camera ON
Dip 2
OFF = Front camera OFF
ON = Side cameras ON
Dip 3
OFF = Side cameras OFF
ON = For vehicles with OEM rear camera
Dip 4
OFF = For vehicles without OEM rear camera
Year
2013-2016
2015-2016
2013-2016
2015-2015
2013-2016
2013-2016
2013-2016
Rev. 071916
Page 1
